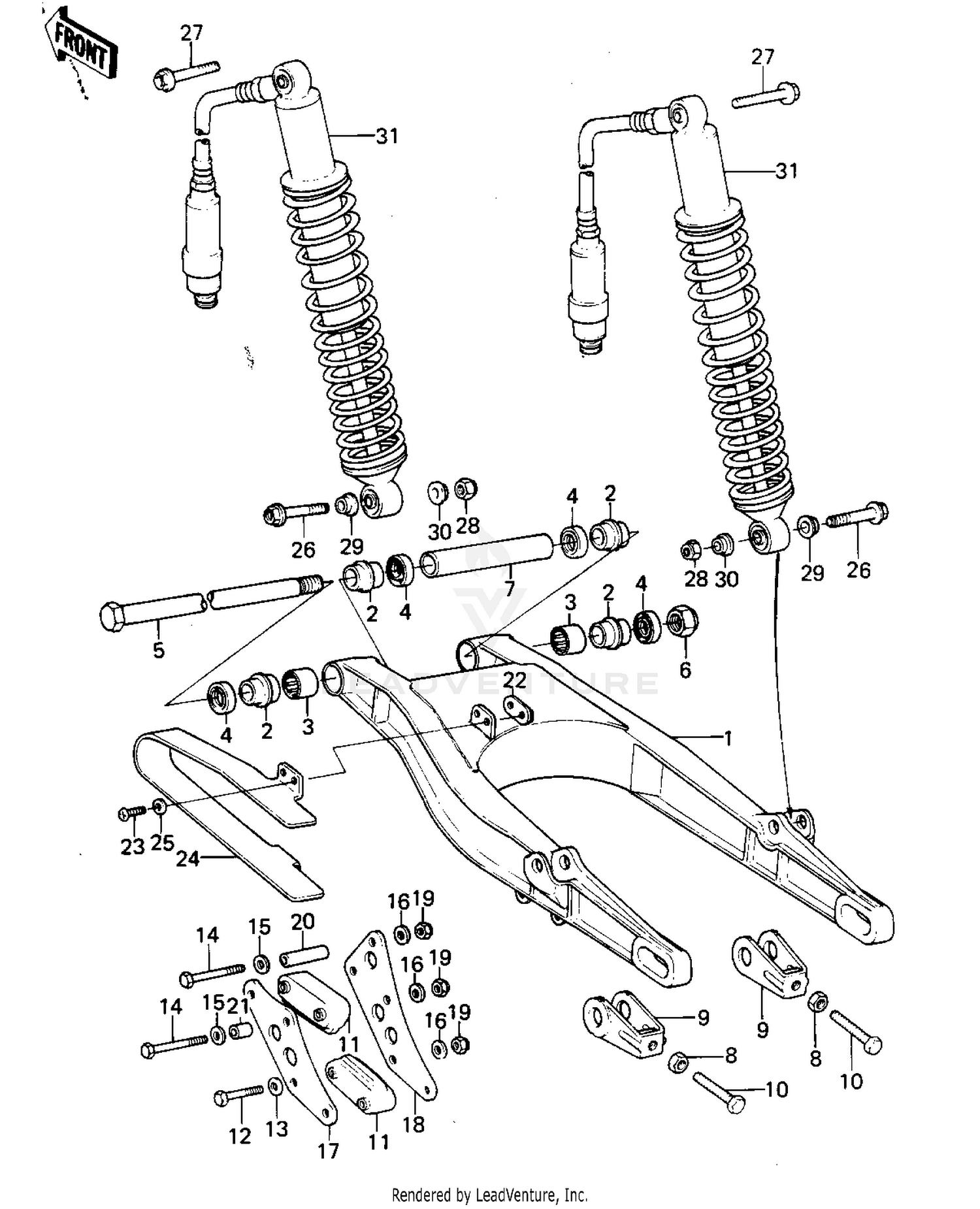

Swing Arm/shock Absorbers Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM,SWING
33001-1041
|
$464.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
SLEEVE,SWING ARM
42036-1026
|
$42.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING,NEEDLE
92046-1001
|
$26.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
92049-1011
|
$9.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT,SWING ARM
33032-1012
|
$98.03 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT-LOCK,14MM
92019-011
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER,SWING ARM
92026-1014
|
$20.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-HEX-SMALL,8MM
318G0800
Superseded by 318BA0800
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
ADJUSTER,CHAIN
33040-4001
|
$25.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,CHAIN ADJUSTER
92001-1027
|
$17.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUIDE,CHAIN
12053-1033
|
$34.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-UPSET,6X40
112G0640
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-UPSET
112G0660
Superseded by 112BA0660
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Unavailable |
|||
|
#16
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Unavailable |
|||
|
#17
GUARD,CHAIN,OUTER
55020-1033
|
$15.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUARD,CHAIN,INNER
55020-1034
|
$14.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT,LOCK,6MM
92019-008
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR,6.8X10X37.5L
92027-1209
|
$9.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR,6.8X10X11.5
92027-1210
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE
13169-4004
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
GUARD,CHAIN
55020-1035
|
$41.77 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER-PLAIN,7MM
92022-240
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT,HEX HEAD,10X48
92001-1029
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT,FLANGED,6X10
92001-1034
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT,LOCK,10MM
92019-021
Superseded by 92210-1184
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
92027-1029
|
$6.54 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
92027-1030
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#31
SHOCK ABSBR RR
45014-1040
|
$347.18 | ||
|
Available to order. Add to View Price |
|||
