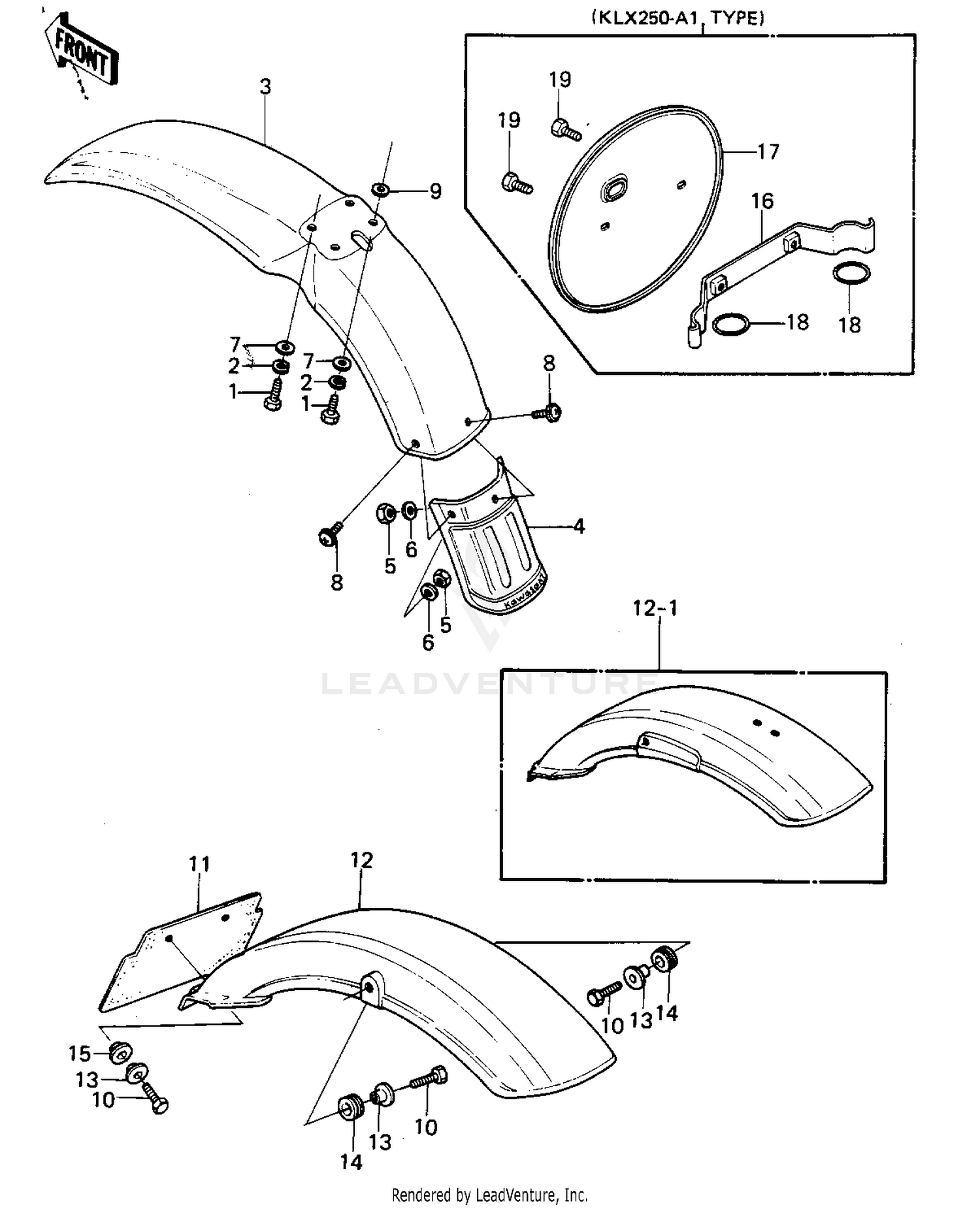

Fenders/number Plate Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT-UPSET
112G0618
Superseded by 112BA0618
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
FENDER-FR,L.GREEN
35004-1015-6W
|
$81.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLAP,FRONT FENDER
35019-1002
|
$14.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT,LOCK,6MM
92019-008
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER,7X16X1.2
92022-024
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW,6X14
92009-1287
Superseded by 92172-0401
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,PLAIN
92022-283
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT-UPSET
112G0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
FLAP,REAR FENDER
35019-1012
|
$23.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
FENDER-RR,L.GREEN
35022-1057-6W
|
$82.19 | ||
|
Available to order. Add to View Price |
|||
|
#12-1
FENDER-RR,L.GREEN
35022-1057-6W
|
$82.19 | ||
|
Unavailable |
|||
|
#13
COLLAR,L=9.6
92027-1045
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER
92075-1028
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER RUBBER
92075-103
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET,NUMBER PLATE
11034-1089
|
$10.16 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE,NUMBER,L.GREEN
58029-1004-6W
|
$11.72 | ||
|
Available to order. Add to View Price |
|||
|
#18
O RING,55MM
671B2555
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW,6X14
92009-1287
Superseded by 92172-0401
|
$2.48 | ||
|
Unavailable |
|||
