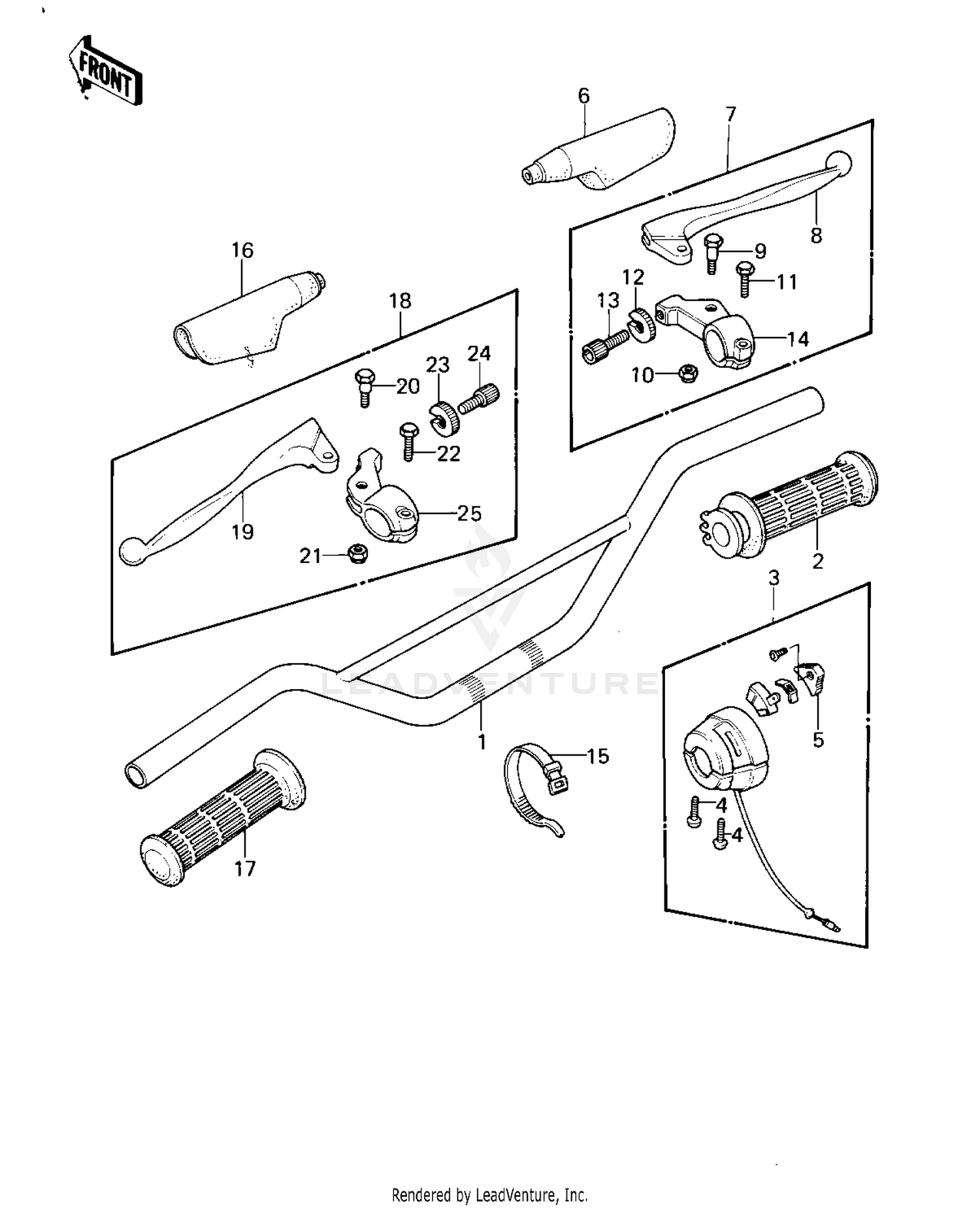

Handlebar Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
46003-1046
|
$122.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP ASSY,THROTTLE
46019-1001
|
$53.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOUSING ASSY,CONT,R.H
46091-1011
|
$191.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW-PAN-CROS,5X25
220B0525
Superseded by 220AA0525
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH,ENGINE STOP
92077-1006
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
DUST COVER
46071-003
|
$28.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER ASSY,FRONT BRAK
46076-1003
|
$36.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
FRONT BRAKE LEVER
46058-018
|
$55.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT,HEX HEAD,6MM
92001-140
|
$20.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT,LOCK,6MM
92019-008
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT-UPSET
112N0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT,CABLE ADJUST LOCK
46056-006
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW,CABLE ADJUST
46055-009
|
$18.39 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER,F.BRAKE LEVER
46060-010-21
|
$67.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAND,L=123
92072-030
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
DUST COVER
46071-003
|
$28.27 | ||
|
Unavailable |
|||
|
#17
RUBBER,L.H.GRIP
46075-1001
|
$29.68 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER ASSY,CLUTCH
46076-1004
|
$78.68 | ||
|
Available to order. Add to View Price |
|||
|
#19
LEVER, CLUTCH
46092-021
|
$53.66 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT,HEX HEAD,6MM
92001-140
|
$20.44 | ||
|
Unavailable |
|||
|
#21
NUT,LOCK,6MM
92019-008
|
$4.19 | ||
|
Unavailable |
|||
|
#22
BOLT-UPSET
112N0620
Superseded by 112BA0620
|
$2.22 | ||
|
Unavailable |
|||
|
#23
NUT,CABLE ADJUST LOCK
46056-006
|
$8.63 | ||
|
Unavailable |
|||
|
#24
SCREW,CABLE ADJUST
46055-009
|
$18.39 | ||
|
Unavailable |
|||
|
#25
HOLDER,CLUTCH LEVER
46094-014-21
|
$58.60 | ||
|
Available to order. Add to View Price |
|||
