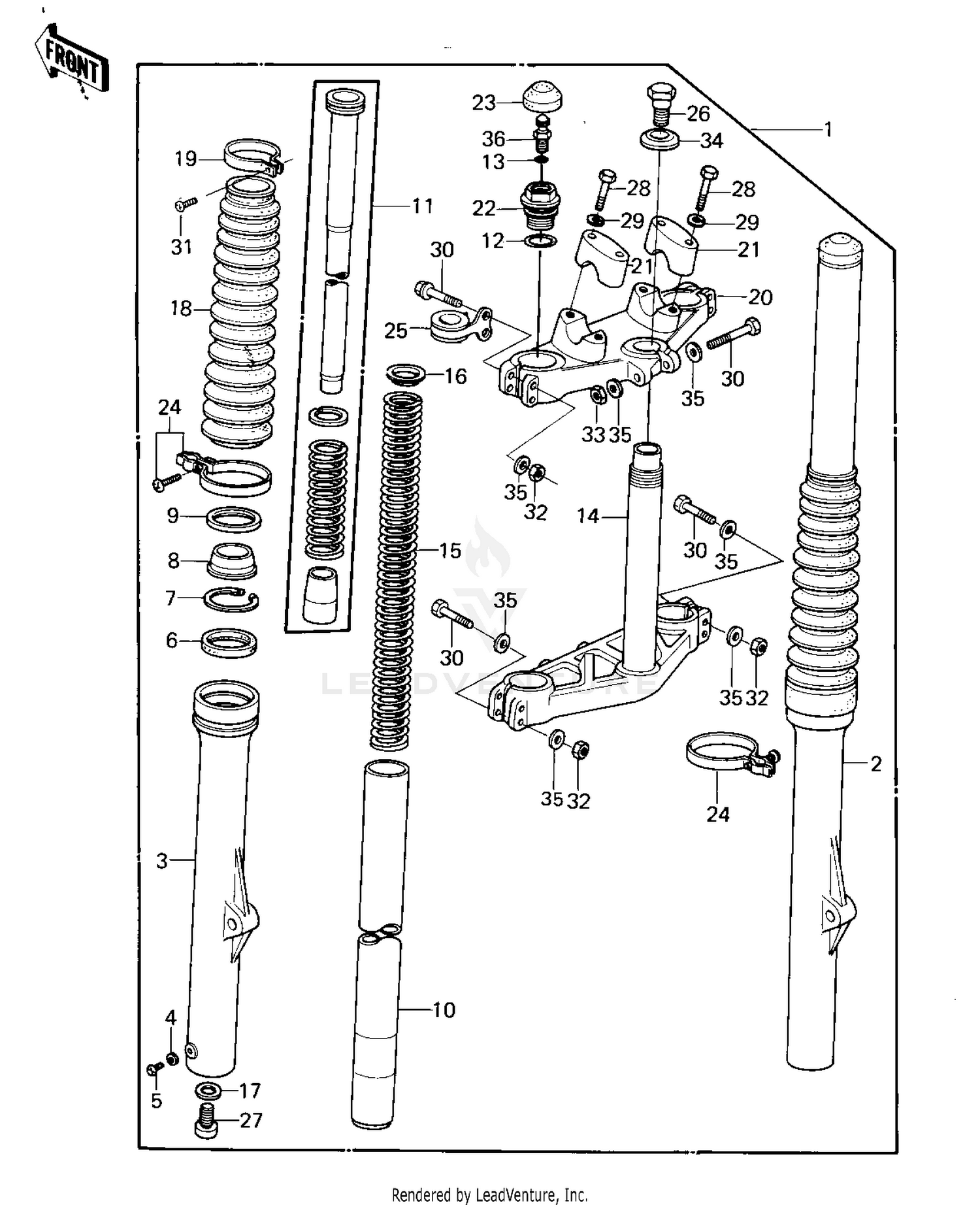

Front Fork (klx250-a2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK-FRONT
44001-1145
|
$1,218.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE,RH,FORK OUTER
44006-1030
|
$330.46 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE,LH,FORK OUTER
44005-1030
|
$330.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET,FORK DRAIN PLUG
44045-002
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL-OIL,FORK OUTER P
92049-1009
Superseded by 92049-1216
|
$22.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING,SNAP,FORK OUTER
92033-1005
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
DUST SHIELD,FORK
92093-1007
|
$11.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
CASE,DUST SHIELD
32099-1002
|
$26.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE,FORK INNER
44013-1026
|
$278.07 | ||
|
Available to order. Add to View Price |
|||
|
#1
CYLINDER-FORK
44022-1030
|
$114.66 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING-O,FORK TOP CAP
92055-1051
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
0 RING,AIR VALVE
92055-1018
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#14
STEM,STEERING
44037-1021
|
$208.28 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING,FORK
44026-1038
|
$39.39 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUIDE,FORK SPRING
44028-1004
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET,FORK CYLINDER
44045-057
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOOT,FORK,BLACK
49006-1009
Superseded by 49006-1009-BD
|
$70.19 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND,BOOT
92072-1008
Superseded by 92072-1168
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
HEAD,STEERING STEM
44039-1018
|
$213.07 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER,HANDLE BAR
46012-1003
|
$12.52 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP,FORK TOP
44029-1011
|
$85.79 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP,RUBBER,FORK TOP
44029-1009
|
$10.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
BAND,BOOTS L.H.
92072-1011
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP,CABLE
92072-1040
|
$21.98 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT,FORK TOP
44041-065
|
$26.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT,SOCKET,FORK CYLINDER
44041-040
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT,FLANGED,8X40
92001-1578
Superseded by 92002-1838
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW-PAN-CROS,4X20
220B0420
Superseded by 220AA0420
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW-PAN-CROS,4X20
220B0420
Superseded by 220AA0420
|
$2.59 | ||
|
Unavailable |
|||
|
#32
NUT,8MM
311G0800
Superseded by 311BA0800
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT,LOCK,8MM
92015-1124
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER
44043-052
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#36
VALVE ASSY,AIR
16126-1003
|
$40.11 | ||
|
Available to order. Add to View Price |
|||
