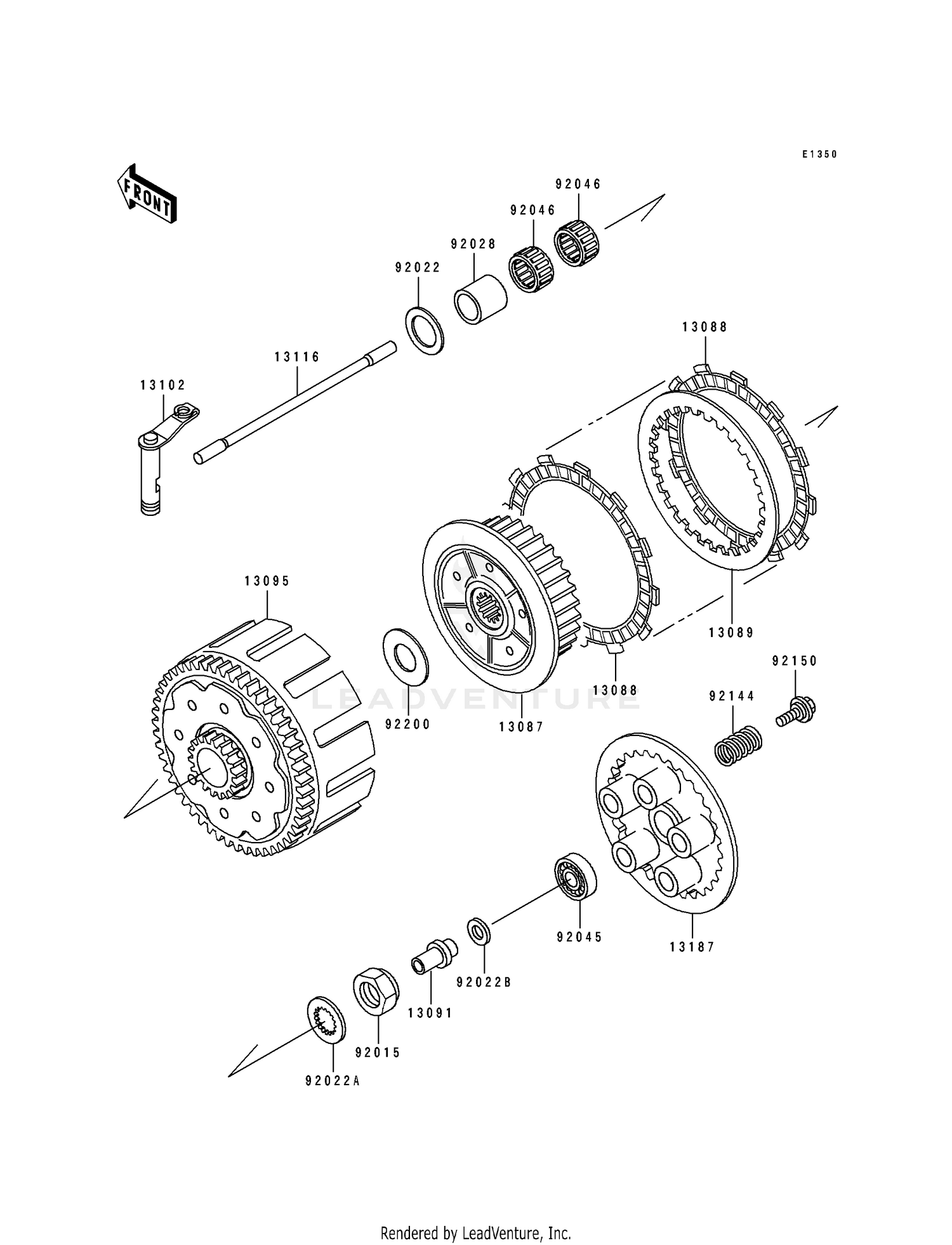

1997 Kawasaki KX 250 CLUTCH OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13087
HUB-CLUTCH
13087-1168
|
$123.13 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-1105
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE-CLUTCH
13089-1066
|
$12.33 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER
13091-1762
|
$70.48 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING-COMP-CLUTCH
13095-1343
|
$393.13 | ||
|
Available to order. Add to View Price |
|||
|
#13102
RELEASE-COMP-CLUTCH
13102-1137
Superseded by 13102-1154
|
$55.75 | ||
|
Unavailable |
|||
|
#13116
ROD-PUSH
13116-1156
|
$22.61 | ||
|
Available to order. Add to View Price |
|||
|
#13187
PLATE-CLUTCH OPERATIN
13187-1012
Superseded by 13187-1087
|
$74.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,20MM
92015-1725
|
$17.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER PLAIN
92022-1075
|
$14.34 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER
92022-1942
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,PLAIN
92022-269
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1702
|
$52.67 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,6001C3ML01
92045-1235
|
$15.51 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,K30X34
92046-1222
|
$20.60 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,CLUTCH
92144-1351
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,CLUTCH
92150-1489
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,22.5X47X2
92200-1143
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
