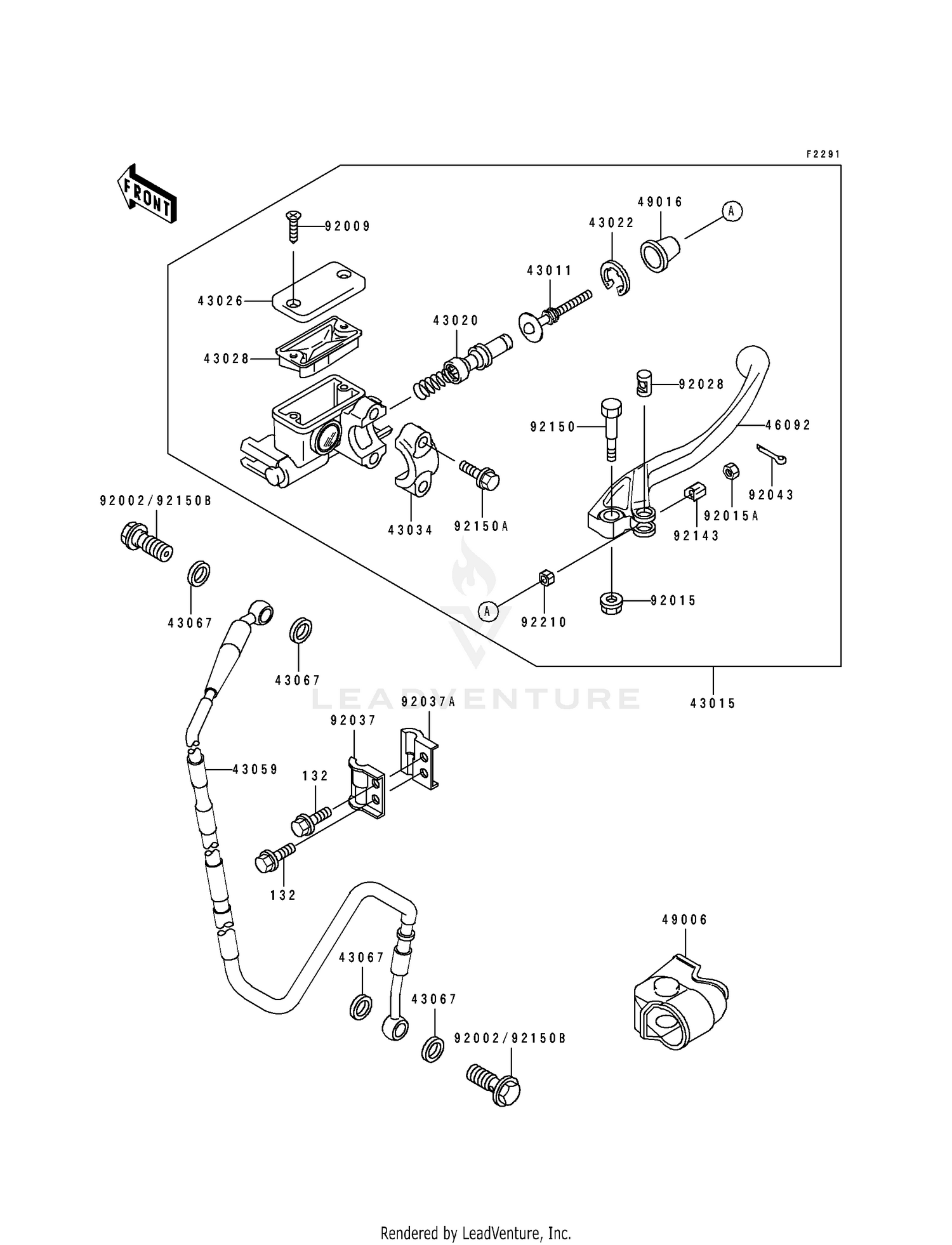

1997 Kawasaki KX 250 FRONT MASTER CYLINDER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,6X16
132G0616
Superseded by 132BA0616
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#43011
ROD-BRAKE,FR MASTER C
43011-1166
Superseded by 43011-1181
|
$20.71 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,
43015-1582
|
$297.34 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1112
|
$61.76 | ||
|
Available to order. Add to View Price |
|||
|
#43022
STOPPER-BRAKE,PISTON
43022-1010
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1075
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-1067
|
$17.54 | ||
|
Available to order. Add to View Price |
|||
|
#43034
HOLDER-BRAKE
43034-1110
|
$18.23 | ||
|
Available to order. Add to View Price |
|||
|
#43059
HOSE-BRAKE,FR
43059-1950
|
$147.25 | ||
|
Available to order. Add to View Price |
|||
|
#43067
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#46092
LEVER-GRIP,FRONT BRAK
46092-1191
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,FRONT BRAKE LEVE
49006-1286
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,MASTER CYLINDER
49016-1044
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,OIL,L=23
92002-1888
Superseded by 92153-0627
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,4MM
92009-1458
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1528
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,ADJUST
92015-1642
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1792
|
$11.81 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,BRAKE HOSE,OUTSIDE
92037-1362
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,BRAKE HOSE,INSIDE
92037-1363
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN
92043-1539
|
$2.74 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1882
|
$8.53 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,LEVER SET
92150-1451
|
$13.21 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT
92150-1452
Superseded by 92002-1894
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92150B
BOLT,OIL,L=23
92150-1886
|
$14.78 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,ADJUST
92210-1064
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
