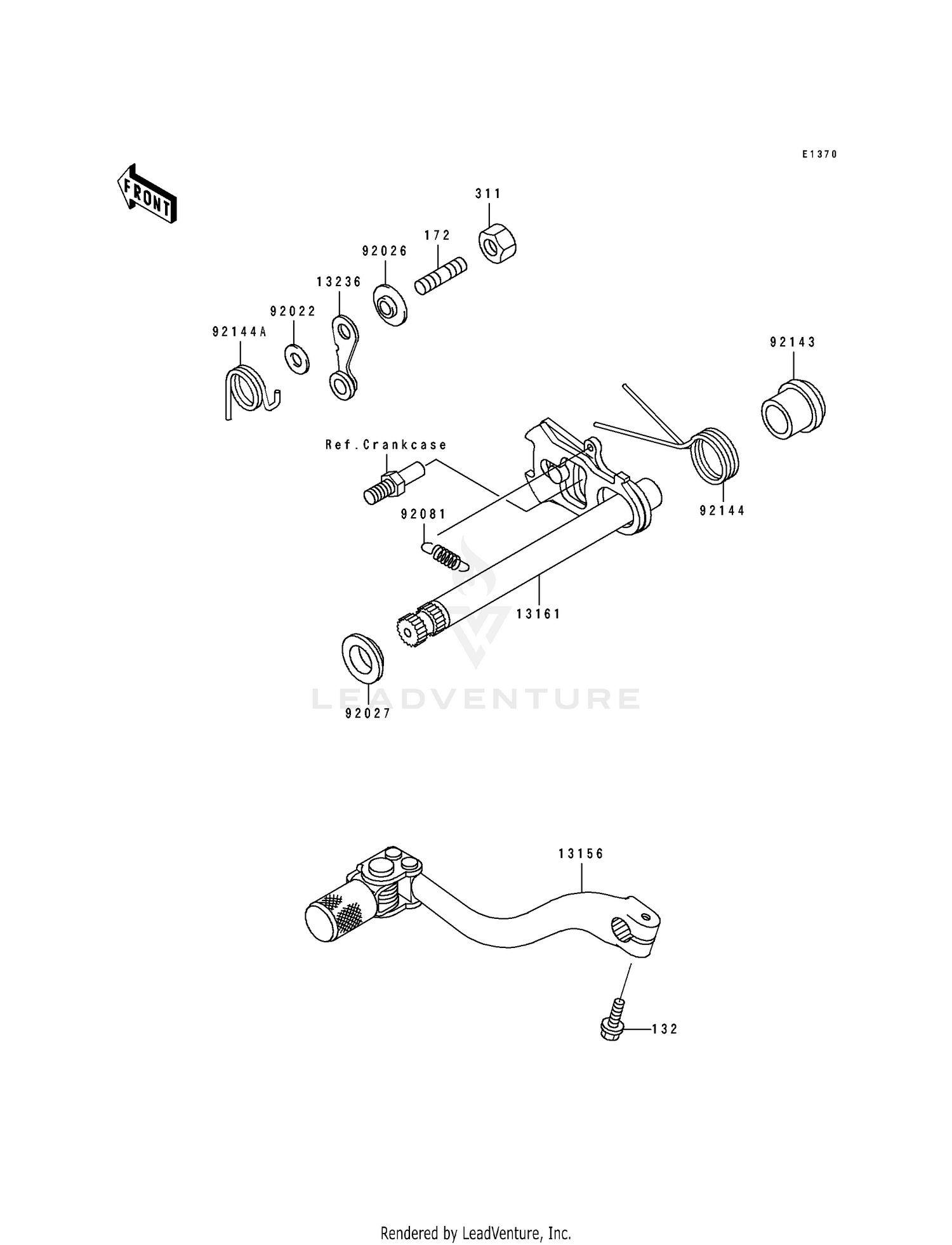

1997 Kawasaki KX 250 GEAR CHANGE MECHANISM OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT,6X25
132G0625
Superseded by 92153-1148
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#172
BOLT-STUD,6X12
172G0612
Superseded by 172BA0612
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311G0600
Superseded by 311BA0600
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#13156
LEVER-CHANGE,PEDAL
13156-1347
|
$90.14 | ||
|
Available to order. Add to View Price |
|||
|
#13161
LEVER-COMP-CHANGE SHA
13161-1233
Superseded by 13161-1252
|
$51.24 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,POSITION
13236-1253
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6X12.8X1.2
92022-1827
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-1217
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,CHANGE SHAFT,L
92027-1512
|
$11.90 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,CHANGE LEVER
92081-076
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,RETURN SPRING
92143-1498
|
$9.90 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,CHANGE SHAFT R
92144-1485
Superseded by 92145-1365
|
$6.56 | ||
|
Available to order. Add to View Price |
|||
|
#92144A
SPRING,LEVER POSITION
92144-1997
Superseded by 92145-1063
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
