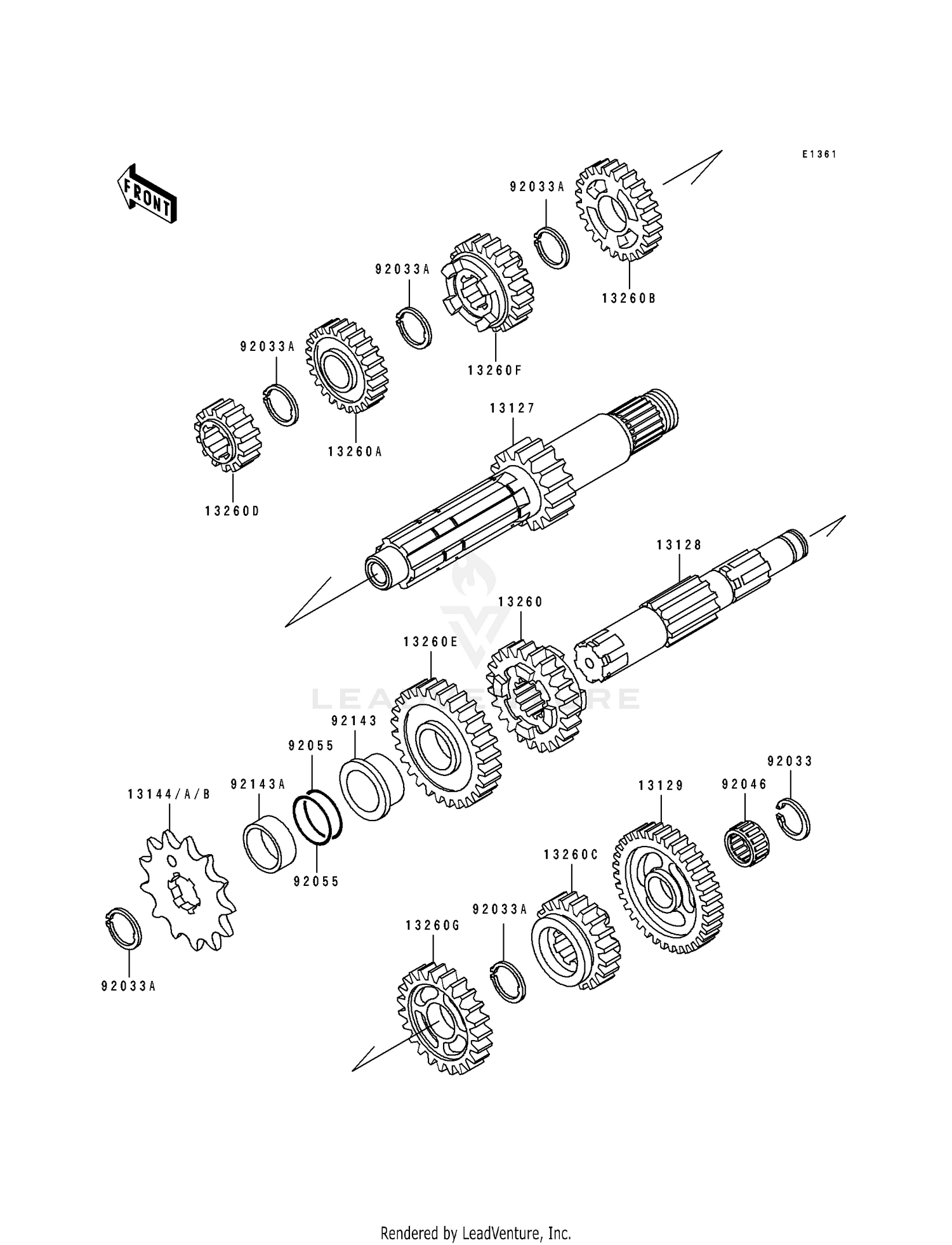

1997 Kawasaki KX 250 TRANSMISSION OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13127
SHAFT-TRANSMISSION IN
13127-1227
|
$192.83 | ||
|
Available to order. Add to View Price |
|||
|
#13128
SHAFT-TRANSMISSION OU
13128-1215
|
$162.07 | ||
|
Available to order. Add to View Price |
|||
|
#13129
LOW GEAR,OUTPUT,32T
13129-1160
|
$115.63 | ||
|
Available to order. Add to View Price |
|||
|
#13144
ENGINE SPROCKET,15T
13144-069
|
$51.86 | ||
|
Available to order. Add to View Price |
|||
|
#13144A
ENGINE SPROCKET,14T
13144-1005
|
$33.30 | ||
|
Available to order. Add to View Price |
|||
|
#13144B
ENGINE SPROCKET,13T
13144-1027
|
$31.81 | ||
|
Available to order. Add to View Price |
|||
|
#13260
GEAR,OUTPUT 4TH,25T
13260-1109
|
$116.29 | ||
|
Available to order. Add to View Price |
|||
|
#13260A
GEAR,INPUT 4TH,22T
13260-1367
Superseded by 13260-1893
|
$88.02 | ||
|
Available to order. Add to View Price |
|||
|
#13260B
GEAR,INPUT TOP,24T
13260-1368
|
$89.42 | ||
|
Available to order. Add to View Price |
|||
|
#13260C
GEAR,OUTPUT TOP,24T
13260-1607
|
$122.57 | ||
|
Available to order. Add to View Price |
|||
|
#13260D
GEAR,INPUT 2ND,16T
13260-1628
|
$83.10 | ||
|
Available to order. Add to View Price |
|||
|
#13260E
GEAR,OUTPUT 2ND,26T
13260-1629
|
$135.83 | ||
|
Available to order. Add to View Price |
|||
|
#13260F
GEAR,INPUT 3RD,18T
13260-1630
|
$120.78 | ||
|
Available to order. Add to View Price |
|||
|
#13260G
GEAR,OUTPUT 3RD,24T
13260-1631
Superseded by 13260-1894
|
$112.65 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,18MM
92033-029
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,25MM
92033-1089
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,KT202614
92046-1170
|
$17.54 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-035
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1361
|
$30.03 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR,SPROCKET
92143-1441
|
$24.97 | ||
|
Available to order. Add to View Price |
|||
