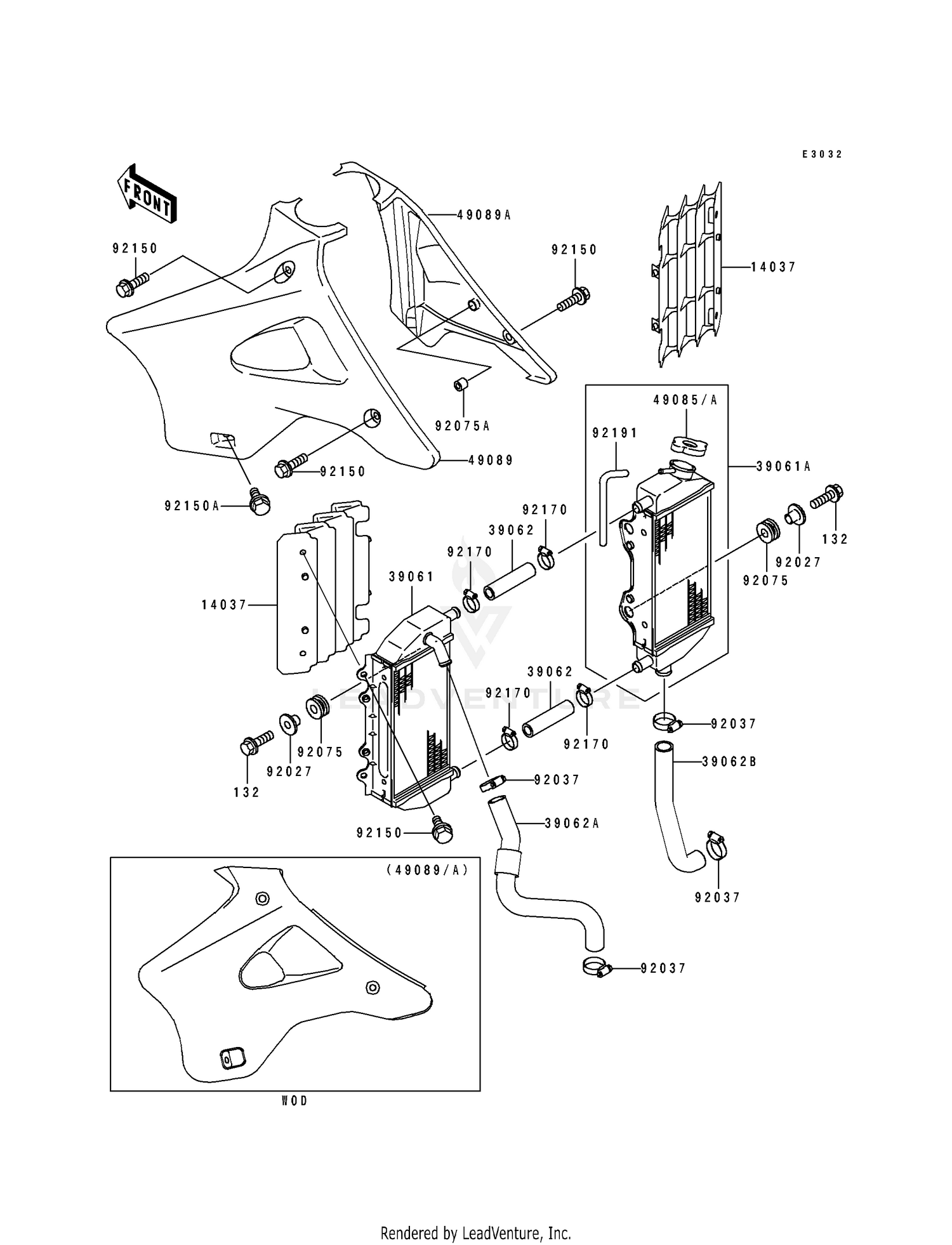

1997 Kawasaki KX 250 RADIATOR OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,6X20
132G0620
Superseded by 132BA0620
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#14037
SCREEN
14037-1179-RZ
Superseded by 14037-1310-RZ
|
$24.92 | ||
|
Available to order. Add to View Price |
|||
|
#39061
RADIATOR-ASSY,LH
39061-1229
Superseded by 39061-1262
|
$383.92 | ||
|
Available to order. Add to View Price |
|||
|
#39061A
RADIATOR-ASSY,RH
39061-1230
Superseded by 39061-0013
|
$425.54 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING,RADIATOR
39062-1551
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#39062A
HOSE-COOLING,HEAD-RAD
39062-1554
|
$39.41 | ||
|
Available to order. Add to View Price |
|||
|
#39062B
HOSE-COOLING,RADIATOR
39062-1555
|
$31.19 | ||
|
Available to order. Add to View Price |
|||
|
#49085
CAP-ASSY-PRESSURE,P=1.6
49085-1059
|
$49.46 | ||
|
Available to order. Add to View Price |
|||
|
#49085A
CAP-ASSY-PRESSURE,P1.1
49085-1070
|
$47.20 | ||
|
Available to order. Add to View Price |
|||
|
#49089
SHROUD-ENGINE,LH,L.GR
49089-1133-6W
|
$62.03 | ||
|
Unavailable |
|||
|
#49089A
SHROUD-ENGINE,RH,L.GR
49089-1134-6W
|
$68.22 | ||
|
Unavailable |
|||
|
#92027
COLLAR,L=11.1
92027-194
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,COOLING HOSE
92037-1589
|
$17.24 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-209
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER RUBBER,CLENER
92075-217
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X12
92150-1435
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,6X20
92150-1801
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1283
Superseded by 92173-1401
|
$13.34 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE,6X9X700
92191-1122
Superseded by 92191-1211
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
