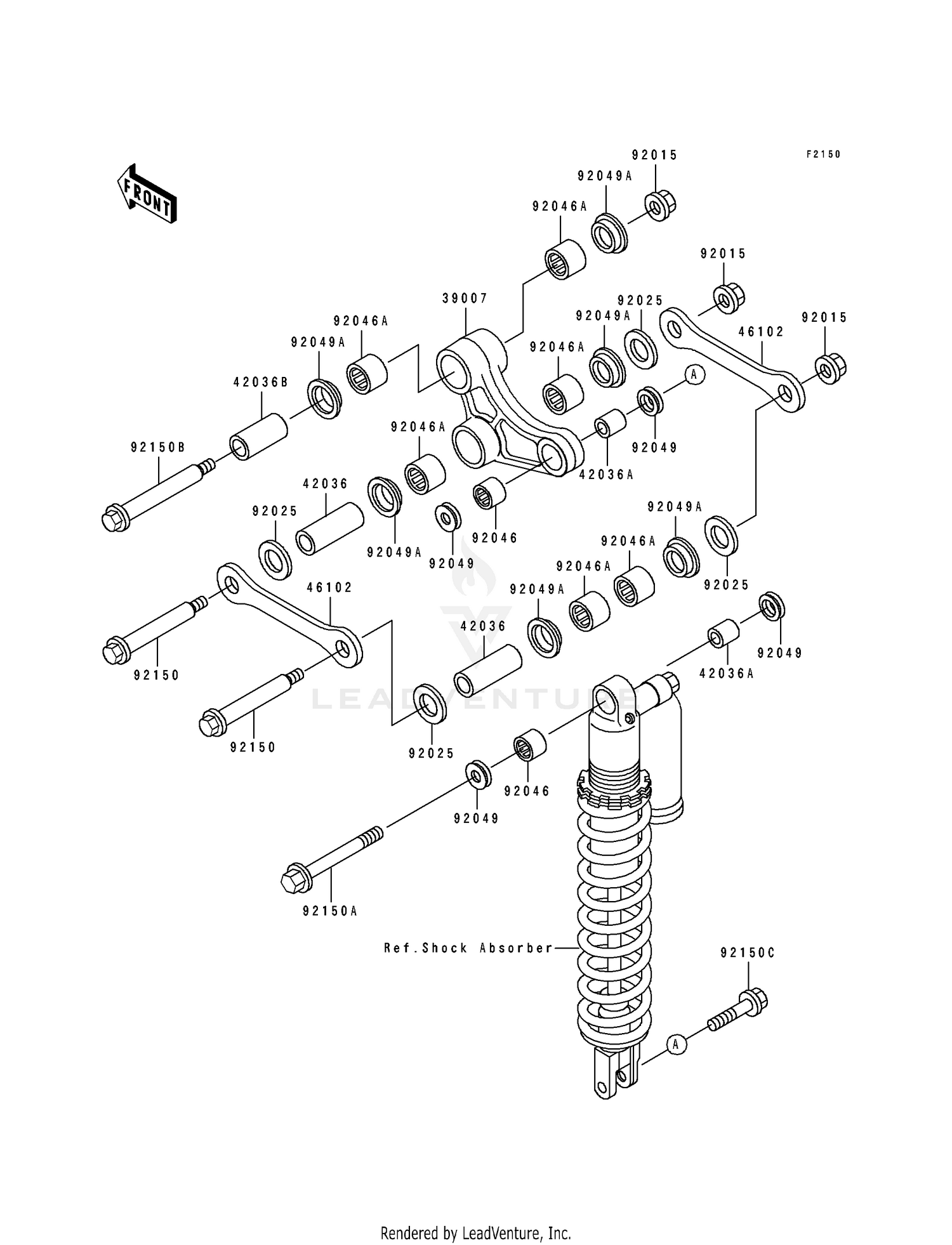

1997 Kawasaki KX 250 REAR SUSPENSION OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#39007
ARM-SUSP,UNI TRAK
39007-1243
|
$198.78 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,15X22X57
42036-1245
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#42036A
SLEEVE,10X16X19
42036-1248
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#42036B
SLEEVE,15X22X45
42036-1309
|
$23.76 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD,SUSPENSION
46102-1404
|
$61.85 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGED,12MM
92015-1433
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#92025
SHIM
92025-1135
|
$4.08 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,16BM2212
92046-1192
|
$17.39 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,22BM28
92046-1216
|
$21.09 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-1330
Superseded by 92049-0069
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,MHA22 28 5.7
92049-1402
|
$9.66 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT
92150-1337
|
$27.30 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,FLANGED,10X42
92150-1571
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#92150B
BOLT,FLANGED,12X76
92150-1701
|
$28.80 | ||
|
Available to order. Add to View Price |
|||
|
#92150C
BOLT,FLANGED,10X40
92150-1711
|
$11.47 | ||
|
Available to order. Add to View Price |
|||
