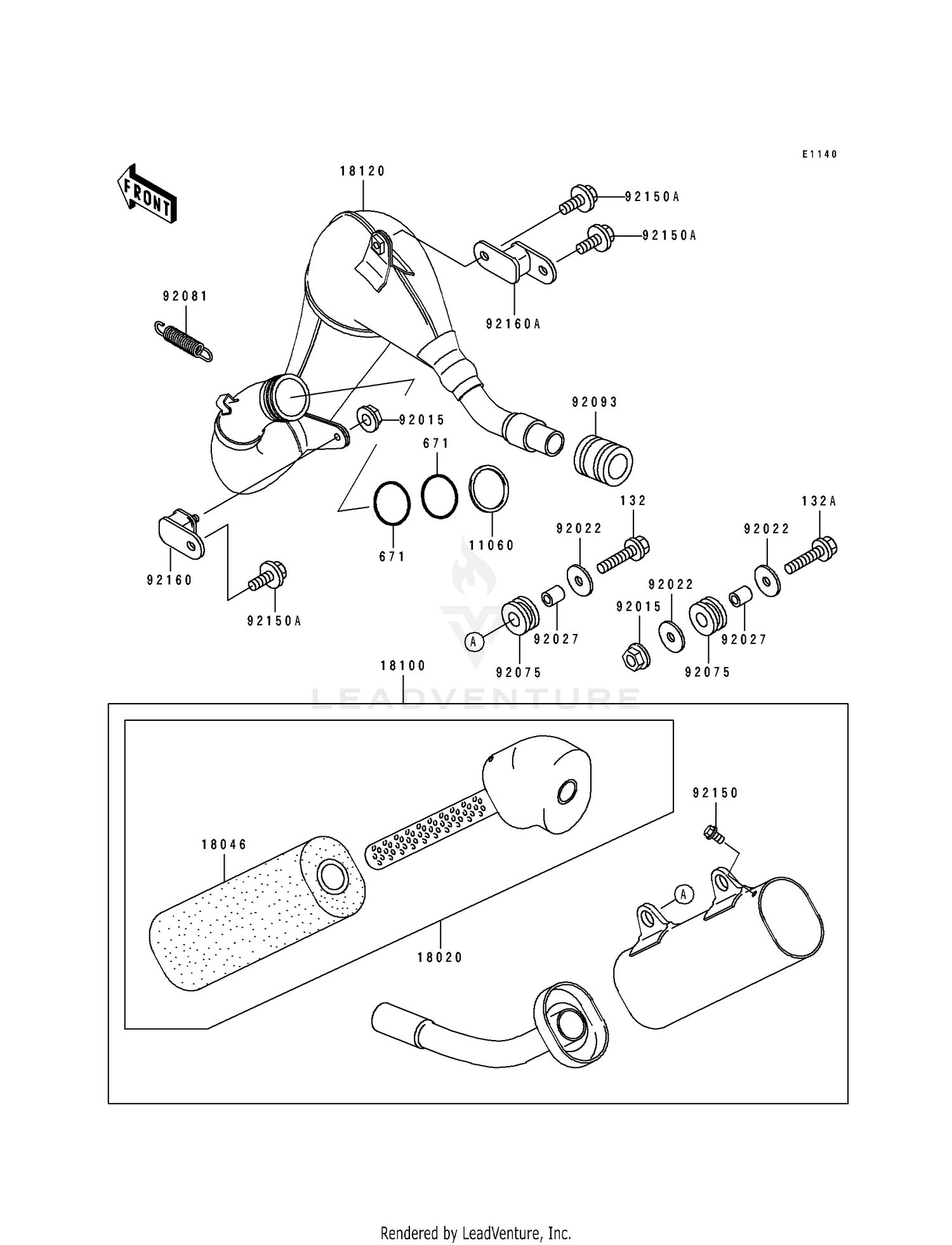

1997 Kawasaki KX 250 MUFFLER(S) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT,6X25
132G0625
Superseded by 92153-1148
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X35
132G0635
Superseded by 132BA0635
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,50MM
671E2550
|
$14.24 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET
11060-1689
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#18020
BAFFLE
18020-1237
|
$168.30 | ||
|
Available to order. Add to View Price |
|||
|
#18046
WOOL,BAFFLE PIPE
18046-1397
|
$123.85 | ||
|
Available to order. Add to View Price |
|||
|
#18100
BODY-ASSY-MUFFLER
18100-1072
|
$231.35 | ||
|
Available to order. Add to View Price |
|||
|
#18120
CHAMBER-EXHAUST
18120-1070
Superseded by 18120-1087
|
$327.90 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X22X1.6
92022-237
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,6.8X10X11.5
92027-1210
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,MUFFLER FITTIN
92075-1857
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,MUFFLER CONECT
92081-1526
|
$11.03 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,MUFFLER CONNECTI
92093-1328
|
$39.76 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,5X8
92150-1406
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,6X12
92150-1435
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,MUFFLER,FR
92160-1176
|
$25.91 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER,MUFFLER,RR
92160-1201
|
$25.91 | ||
|
Available to order. Add to View Price |
|||
