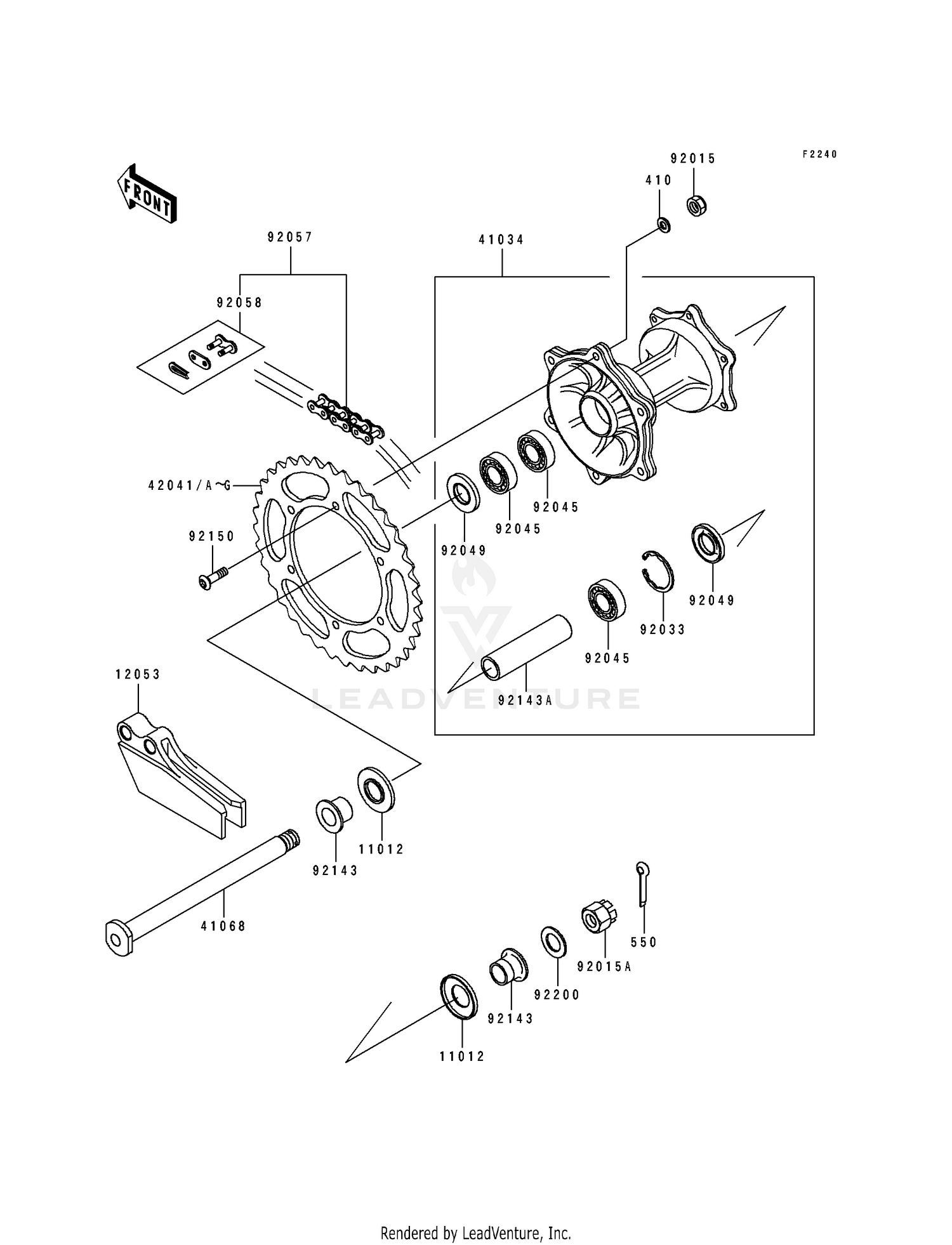

1997 Kawasaki KX 250 REAR HUB OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#410
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,3.0X25
550D3025
Superseded by 550AA3025
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,AXLE
11012-1581
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#12053
GUIDE-CHAIN,DRIVE,RR
12053-1376
|
$72.93 | ||
|
Available to order. Add to View Price |
|||
|
#41034
DRUM-ASSY,REAR BRAKE
41034-1270
|
$618.20 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR
41068-1343
|
$92.52 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,48T,STEEL
42041-1383
|
$67.95 | ||
|
Available to order. Add to View Price |
|||
|
#42041A
SPROCKET-HUB,49T,STEEL
42041-1384
|
$67.95 | ||
|
Available to order. Add to View Price |
|||
|
#42041B
SPROCKET-HUB,50T,STEEL
42041-1408
|
$65.20 | ||
|
Available to order. Add to View Price |
|||
|
#42041C
SPROCKET-HUB,47T,AL
42041-1447
|
$126.59 | ||
|
Available to order. Add to View Price |
|||
|
#42041D
SPROCKET-HUB,48T,AL
42041-1448
|
$126.59 | ||
|
Available to order. Add to View Price |
|||
|
#42041E
SPROCKET-HUB,49T,AL
42041-1449
|
$126.59 | ||
|
Available to order. Add to View Price |
|||
|
#42041F
SPROCKET-HUB,50T,AL
42041-1450
|
$126.59 | ||
|
Available to order. Add to View Price |
|||
|
#42041G
SPROCKET-HUB,51T,AL
42041-1451
|
$117.64 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,8MM
92015-1432
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CASTLE,18MM
92015-1885
|
$10.95 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,42MM
92033-1041
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,6004X8JRLLX2/3A
92045-1239
|
$31.32 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,MHSA25X42X6
92049-1314
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,DID520DMA4KX114L
92057-1438
Superseded by 92057-0740
|
$167.75 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT-CHAIN,DRIVE
92058-1074
|
$11.12 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,RR AXLE,L=20
92143-1905
|
$35.37 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR,RR BRAKE DRUM,
92143-1906
|
$16.68 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,8X28
92150-1978
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,18.5X32X2.3
92200-1149
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
