1985 Kawasaki ZX550A2 GPZ Carburetor Assy OEM Parts

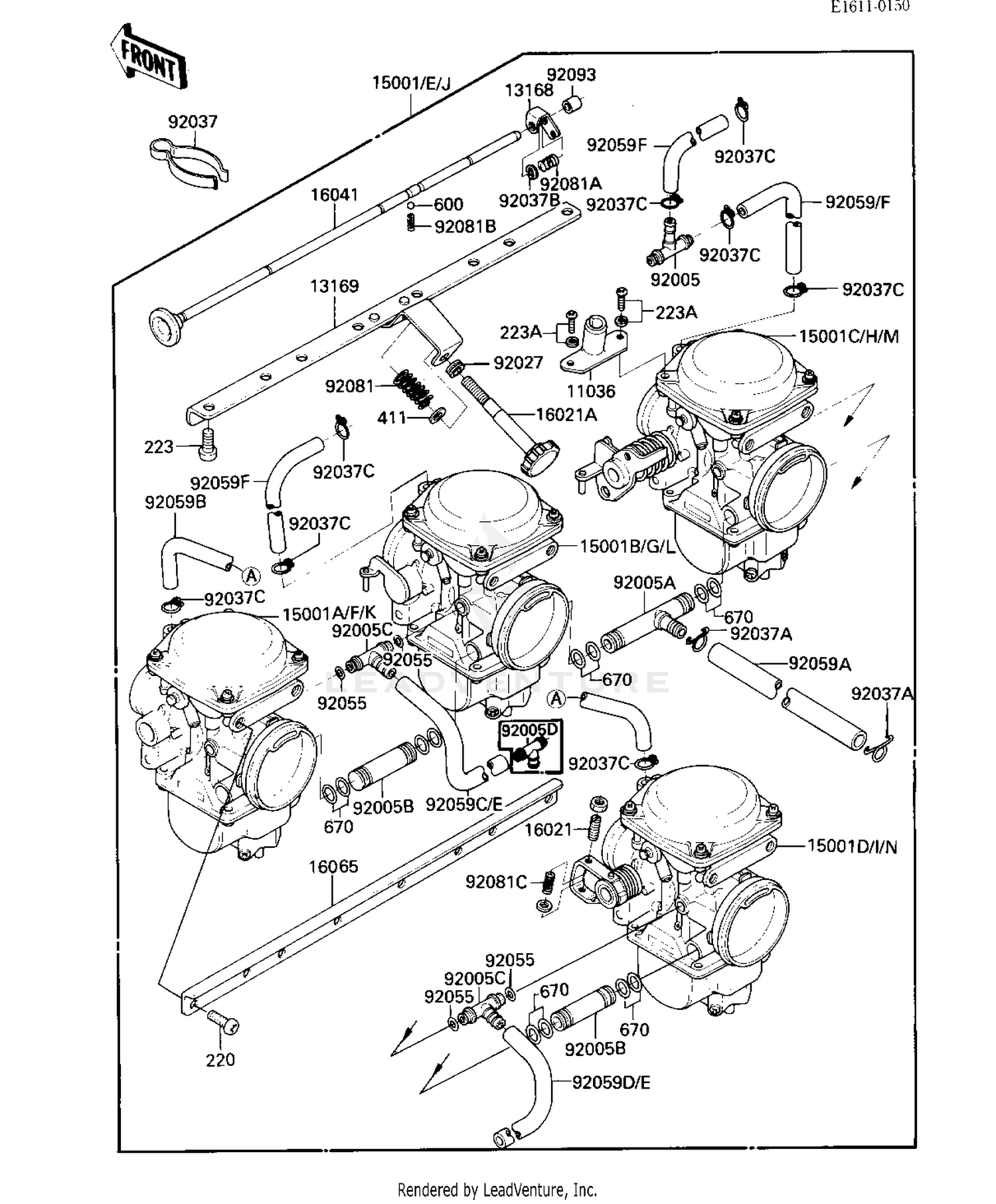

Carburetor Assy Diagram

Item	MSRP	Qty
#11036 BRACKET-A 11036-1453	$15.42
Available to order. Add to View Price
#13168 LEVER 13168-1110	$6.25
Available to order. Add to View Price
#13169 PLATE,CARBURETOR,LWR 13169-1625	$52.41
Available to order. Add to View Price
#15001 CARBURETOR 16001-1974	$917.71
Available to order. Add to View Price
#15001A CARBURETOR,LH,OUTSIDE 16001-1975	$326.16
Available to order. Add to View Price
#15001B CARBURETOR,LH,INSIDE 16001-1976	$288.59
Available to order. Add to View Price
#15001C CARBURETOR,RH,INSIDE 16001-1977	$241.32
Available to order. Add to View Price
#15001D CARBURETOR,RH,OUTSIDE 16001-1978	$326.16
Available to order. Add to View Price
#15001E CARBURATOR (Canada) 16001-1979
Unavailable
#15001F CARBURETOR,LH,OUTSIDE (Canada) 16001-1980
Unavailable
#15001G CARBURETOR,LH,INSIDE (Canada) 16001-1981
Unavailable
#15001H CARBURETOR,RH,INSIDE (Canada) 16001-1982
Unavailable
#15001I CARBURETOR,RH,OUTSIDE (Canada) 16001-1983
Unavailable
#15001J CARBURETOR 16001-1984	$855.13
Available to order. Add to View Price
#15001K CARBURETOR,LH,OUTSIDE 16001-1985	$288.59
Available to order. Add to View Price
#15001L CARBURETOR,LH,INSIDE 16001-1986	$241.32
Available to order. Add to View Price
#15001M CARBURETOR,RH,INSIDE 16001-1987	$288.59
Available to order. Add to View Price
#15001N CARBURETOR,RH,OUTSIDE 16001-1988	$288.59
Available to order. Add to View Price
#16021 SCREW-THROTTLE STOP 16021-1043	$9.28
Available to order. Add to View Price
#16021A SCREW-THROTTLE STOP 16021-1048	$98.71
Available to order. Add to View Price
#16041 SHAFT-CARBURETOR,STAR 16041-1027	$69.67
Available to order. Add to View Price
#16065 HOLDER-CARBURETOR 16065-1057	$43.21
Available to order. Add to View Price
#92005 TJOINT,FUEL 92005-1020	$34.68
Available to order. Add to View Price
#92005A TJOINT,FUEL 92005-1020	$34.68
Unavailable
#92005B JOINT,FUEL 92005-1021	$36.22
Available to order. Add to View Price
#92005C FITTING 92005-1058	$16.93
Available to order. Add to View Price
#92005D FITTING,TUBE,T-TYPE 92005-1115	$13.13
Available to order. Add to View Price
#92027 COLLAR,STOP SCREW 92027-1432	$7.16
Available to order. Add to View Price
#92037 CLAMP,AIR VENT HOSE 92037-1092	$8.96
Available to order. Add to View Price
#92037A CLAMP,FUEL HOSE 92037-1158	$8.53
Available to order. Add to View Price
#92037B CLAMP 92037-1302	$3.10
Available to order. Add to View Price
#92037C CLAMP,TUBE 92037-1378	$9.21
Available to order. Add to View Price
#92055 RING-O 92055-1134	$8.37
Available to order. Add to View Price
#92059 TUBE,5X9X220 92059-1260	$19.74
Available to order. Add to View Price
#92059A TUBE,7X12X200 92059-1290	$25.02
Available to order. Add to View Price
#92059B TUBE,5X9X340 (Canada) 92059-1300
Unavailable
#92059C TUBE,5X8X100 92059-1450	$4.91
Available to order. Add to View Price
#92059D TUBE,5X8X200 92059-1451	$6.90
Available to order. Add to View Price
#92059E TUBE,5X8X240 92059-1461	$25.02
Available to order. Add to View Price
#92059F TUBE,5X9X100 92059-1462	$12.54
Available to order. Add to View Price
#92081 SPRING,ADJUST SCREW 92081-1193	$8.53
Available to order. Add to View Price
#92081A SPRING 92081-1439	$5.23
Available to order. Add to View Price
#92081B SPRING,SHAFT STOP 92081-1440	$6.33
Available to order. Add to View Price
#92081C SPRING 92081-1442	$4.78
Available to order. Add to View Price
#92093 SEAL 92093-1074	$11.76
Available to order. Add to View Price
#220 SCREW-PAN-CROS,6X14 220B0614 Superseded by 220AA0614	$1.44
Available to order. Add to View Price
#223 SCREW-PAN-WS-CROS,4X14 223C0414 Superseded by 223AB0414	$4.05
Available to order. Add to View Price
#223A SCREW-PAN-WS-CROS 223C0418 Superseded by 223AB0418	$3.99
Available to order. Add to View Price
#411 WASHER-PLAIN,5MM 411S0500	$0.93
Available to order. Add to View Price
#600 BALL,STEEL,1/8" 600A0400	$1.91
Available to order. Add to View Price
#670 O RING,7MM 670B1507	$1.26
Available to order. Add to View Price
