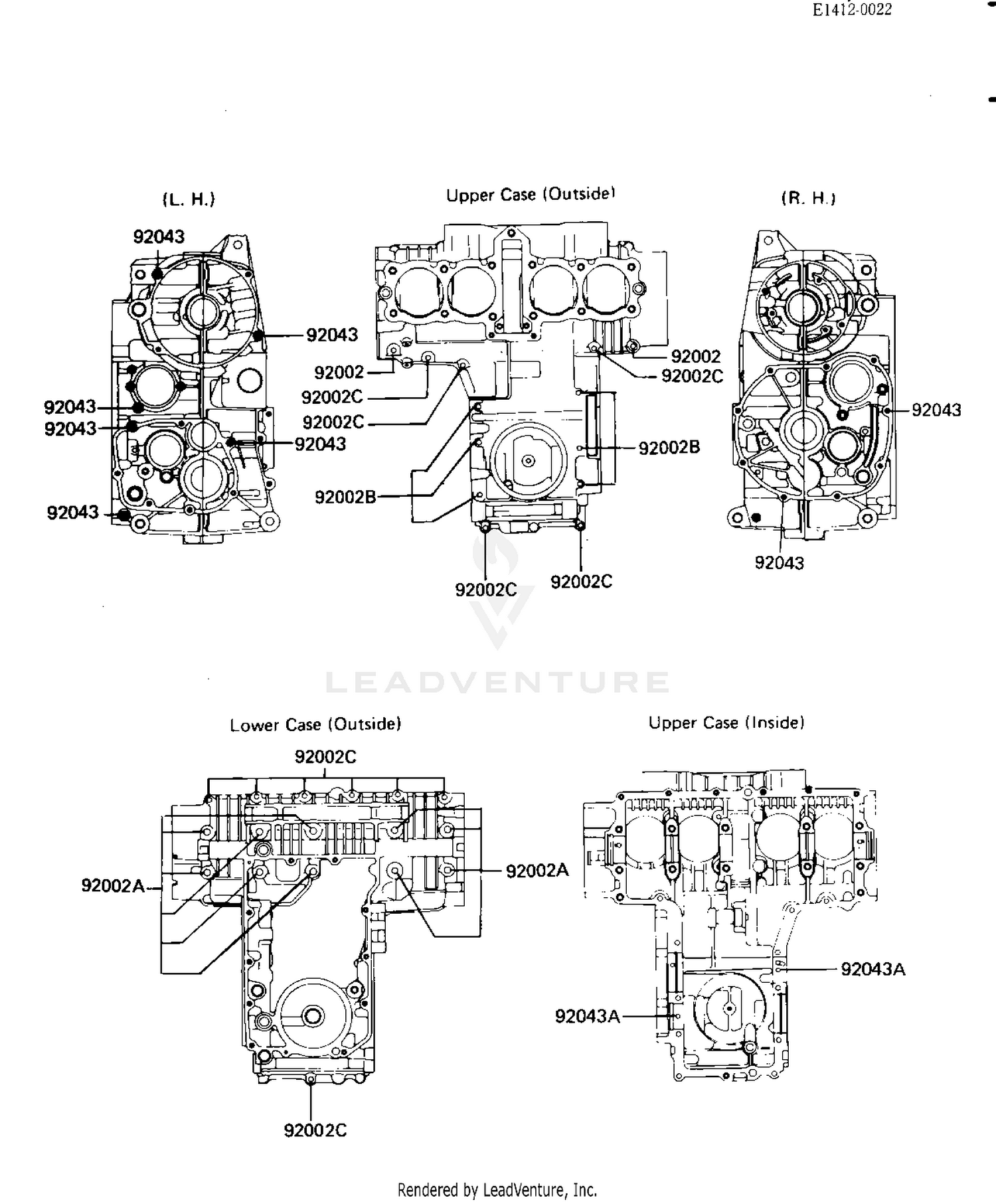

Crankcase Bolt & Stud Pattern Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#92002
BOLT,6X55
92002-1054
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,8X95
92002-1077
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#92002B
BOLT,6X95
92002-1078
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92002C
BOLT,6X40
92002-1080
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,6X16
92042-016
Superseded by 92043-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
