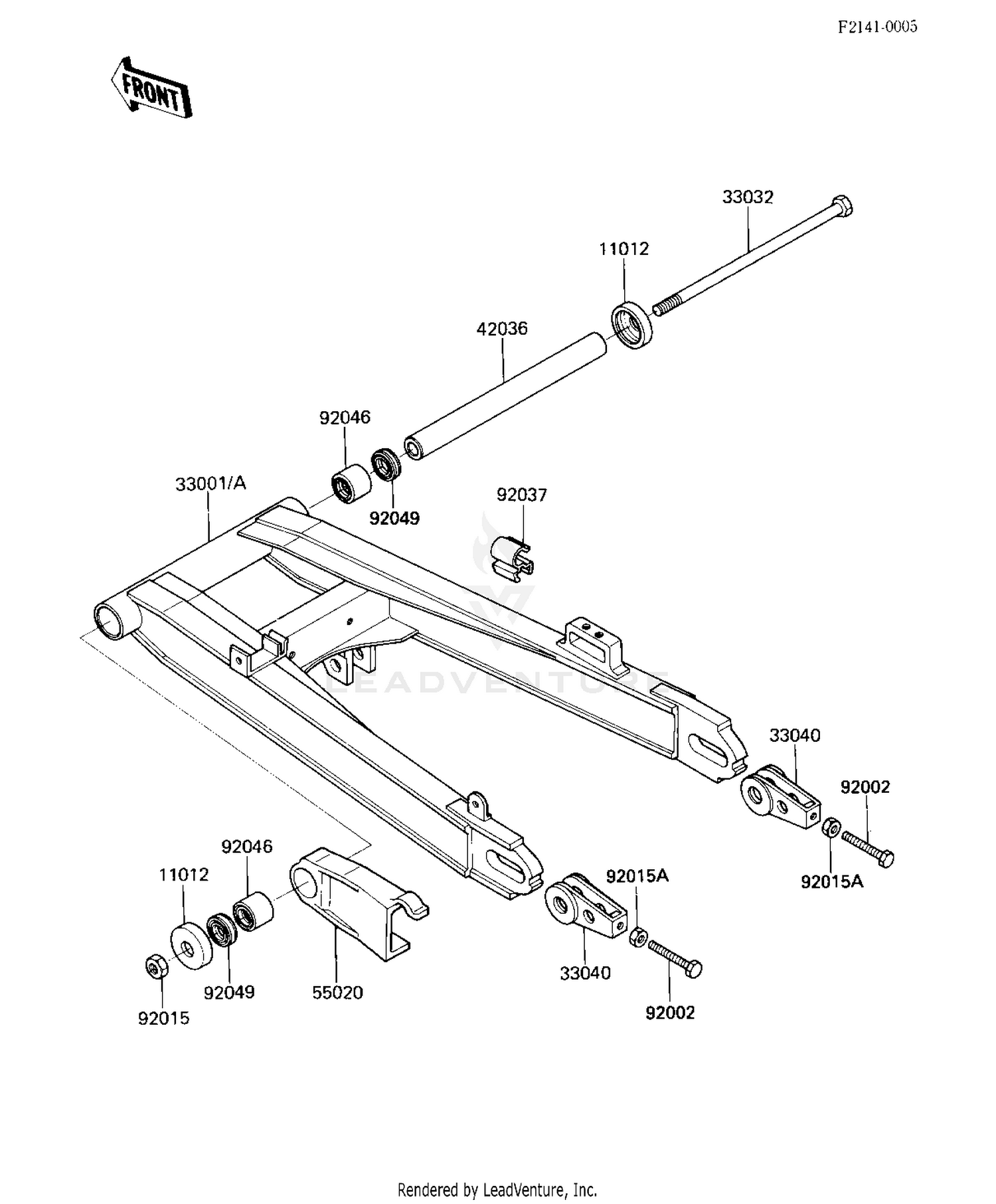

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,SWING ARM
11012-1029
|
$20.24 | ||
|
Available to order. Add to View Price |
|||
|
#33001
ARM-COMP-SWING,G.SILV
33001-1210-F2
|
$492.28 | ||
|
Available to order. Add to View Price |
|||
|
#33001A
ARM-COMP-SWING,SILVER NO. (Can
33001-1210-P1
|
|||
|
Unavailable |
|||
|
#33032
SHAFT-SWING ARM,BLACK
33032-1029
|
$53.28 | ||
|
Available to order. Add to View Price |
|||
|
#33040
ADJUSTER-CHAIN
33040-1051
|
$26.82 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,SWING ARM
42036-1018
|
$50.30 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,CHAIN
55020-1160
|
$45.77 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,8X50
92002-1060
Superseded by 92002-1958
|
$8.06 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,14MM
92015-1327
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,8MM
92015-1364
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,BRAKE HOSE
92037-1392
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,F-2220
92046-1162
|
$20.48 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL,MHA22284
92049-1059
|
$10.61 | ||
|
Available to order. Add to View Price |
|||
