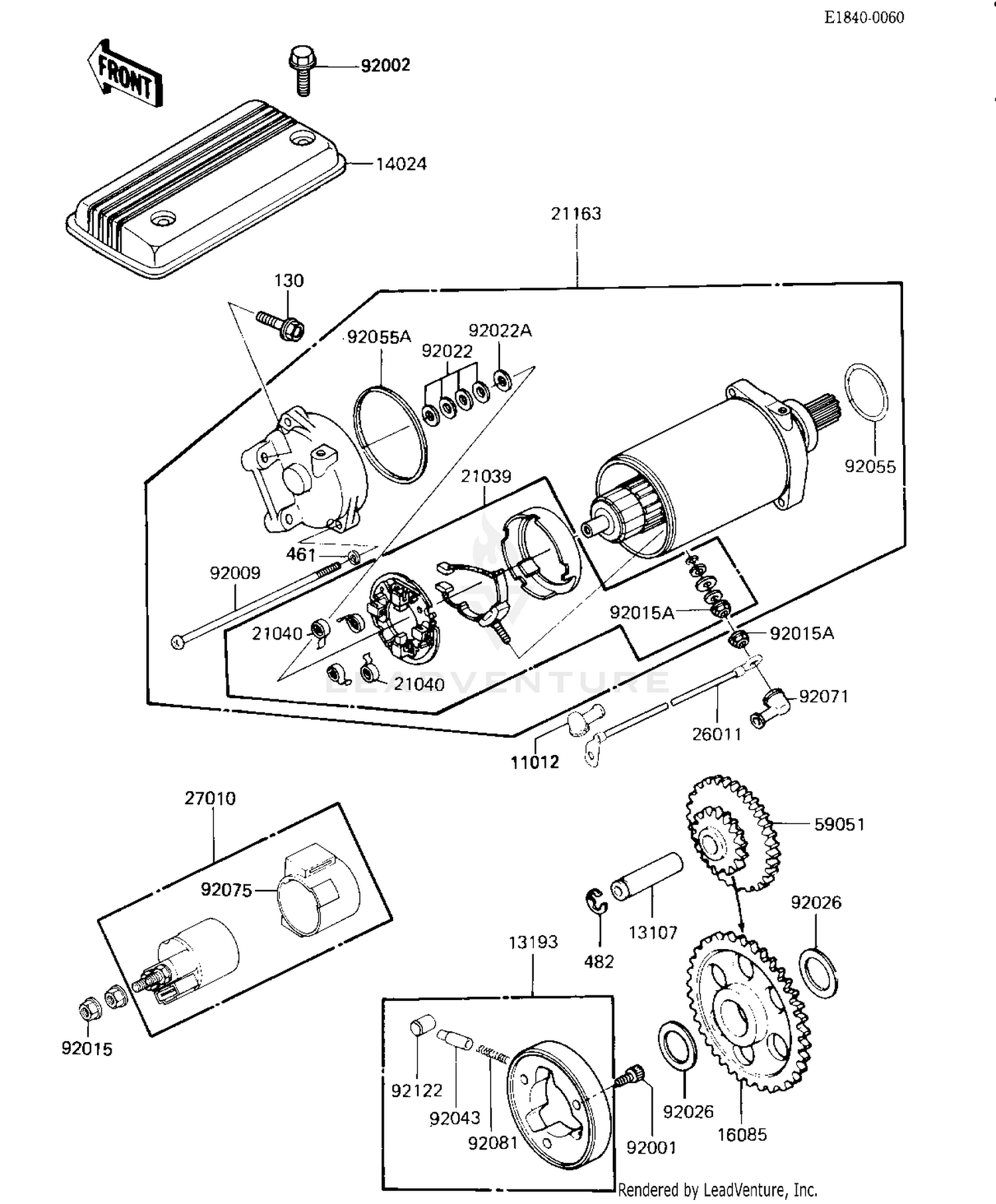

Starter Motor/starter Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,TERMINAL
11012-1354
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#13107
SHAFT,IDLE GEAR
13107-1006
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#13193
CLUTCH-ASSY-ONEWAY
13193-1002
|
$111.54 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,STARTER
14025-1655
|
$23.03 | ||
|
Available to order. Add to View Price |
|||
|
#16085
GEAR,ONEWAY CLUTCH
16085-1030
|
$123.81 | ||
|
Available to order. Add to View Price |
|||
|
#21039
BRUSH,CARBON
21039-1053
|
$90.58 | ||
|
Available to order. Add to View Price |
|||
|
#21040
SPRING-BRUSH
21040-1003
|
$9.08 | ||
|
Available to order. Add to View Price |
|||
|
#21163
STARTER-ELECTRIC
21163-1031
Superseded by 21163-1237
|
$486.13 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD,START MOTOR
26011-1135
|
$71.44 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,MAGNETIC
27010-1235
|
$148.42 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR,STARTER IDLE
59051-1011
|
$119.70 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,SOCKET,8X10
92001-1424
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT-FLANGED,6X16
92002-1099
Superseded by 130BA0616
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,PAN HEAD,6X110
21015-005
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,STARTER MOTOR
92015-1476
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,9.1X18X0.2
21025-011
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,9.1X18X0.8
92022-1132
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,25X36X3.2
92026-1025
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN
92043-132
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
21027-004
Superseded by 92055-1276
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
0 RING,STARTER MOTR
92055-1086
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET,STARTER TERMINAL
21017-017
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,MAGNETIC SWITCH
21064-002
Superseded by 92161-1722
|
$18.94 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,COIL
92081-159
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92122
ROLLER
92122-006
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X25
130G0625
Superseded by 130BA0625
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#482
CIRCLIP-TYPE-E,12MM
482J0200
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
