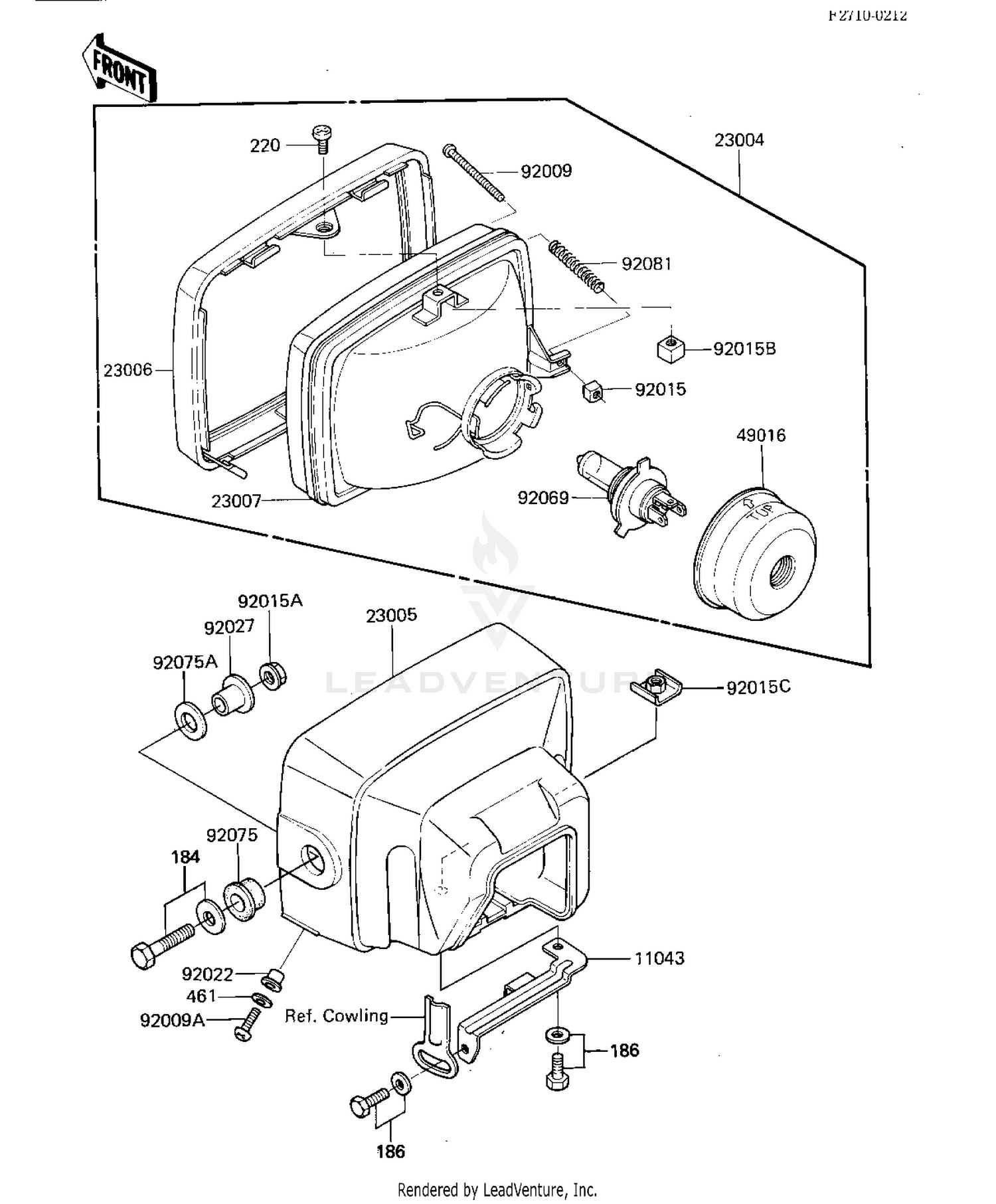

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11043
BRACKET,HEAD LAMP
11043-1640
|
$12.04 | ||
|
Available to order. Add to View Price |
|||
|
#23004
LAMP-HEAD
23004-1169
|
$555.65 | ||
|
Available to order. Add to View Price |
|||
|
#23005
BODY-COMP-HEAD LAMP,B
23005-1051-6Z
|
$138.91 | ||
|
Available to order. Add to View Price |
|||
|
#23006
RIM-LAMP
23006-1022
Superseded by 23006-1021
|
$76.26 | ||
|
Available to order. Add to View Price |
|||
|
#23007
LENS-COMP
23007-1108
|
$172.91 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,HEAD LAMP
49016-1046
|
$11.96 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,FOCUS ADJU.4X52
92009-1033
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,5MM
92011-024
Superseded by 92009-1947
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,4MM,FOCUS ADJUST
23020-018
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,8MM
92015-1014
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,5MM
92015-1157
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#92015C
NUT-6MM,HEAD LAMP
92015-1231
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
23021-010
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=20
92027-1131
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 60/55W,H4
92069-1002
Superseded by 92069-0050
|
$17.64 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,HEAD LAMP FITTING
92075-1109
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,HEAD LAMP FITTING
92075-1110
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,FOCUS ADJUSTING
92081-1103
Superseded by 92081-1701
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#184
BOLT-UPSET-WP-SMALL
184C0835
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#186
BOLT-UPSET-WP
186B0614
Superseded by 186AA0614
|
$0.96 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X10
220B0510
Superseded by 220AA0510
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
