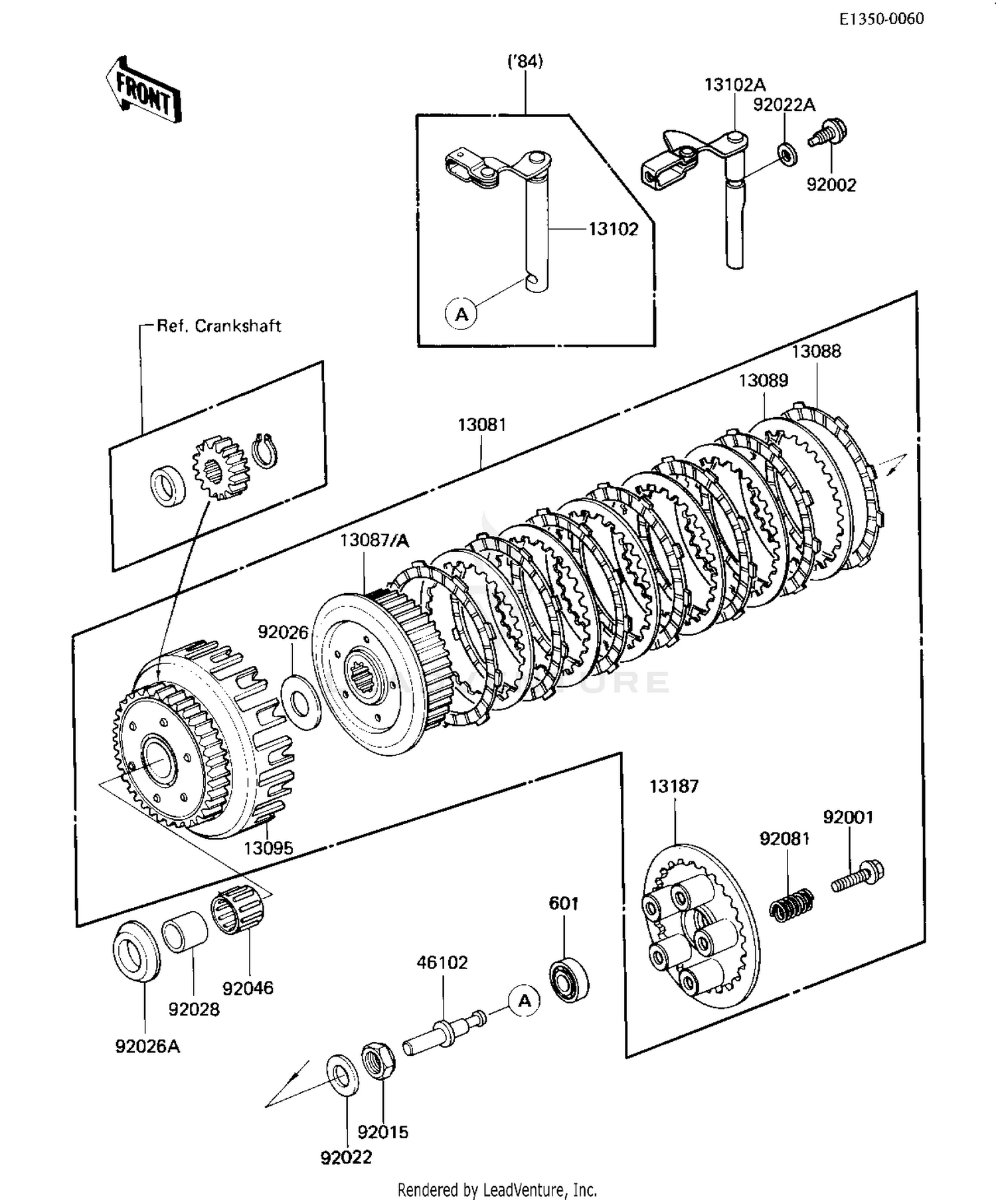

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13081
CLUTCH-ASSY
13081-1086
|
$367.75 | ||
|
Available to order. Add to View Price |
|||
|
#13087
HUB-CLUTCH
13087-1052
Superseded by 13087-1162
|
$129.38 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-040
|
$12.12 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE-CLUTCH,T=2.0
13089-026
|
$12.33 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING,CLUTCH,65T
13095-1030
|
$411.06 | ||
|
Available to order. Add to View Price |
|||
|
#13102
RELEASE-COMP-CLUTCH
13102-1052
Superseded by 13102-1065
|
$52.63 | ||
|
Available to order. Add to View Price |
|||
|
#13012A
RELEASE-COMP-CLUTCH
13102-1065
|
$52.63 | ||
|
Unavailable |
|||
|
#13187
PLATE-CLUTCH OPERATIN
13187-1012
Superseded by 13187-1087
|
$74.97 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD
46102-1030
|
$28.76 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X18
92001-1066
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT
92002-1356
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,20MM
92015-1555
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,20.3X36X2.3
92022-1116
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.2X11X1
92022-304
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,25.5X47X2.5
92026-022
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER,THRUST,T=5.5
92026-116
|
$16.97 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,25X32X23.6
92028-178
|
$24.14 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,KTV323723
92046-028
|
$20.48 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,CLUTCH
92081-139
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,6001C3ML01
92045-1235
|
$15.67 | ||
|
Available to order. Add to View Price |
|||
