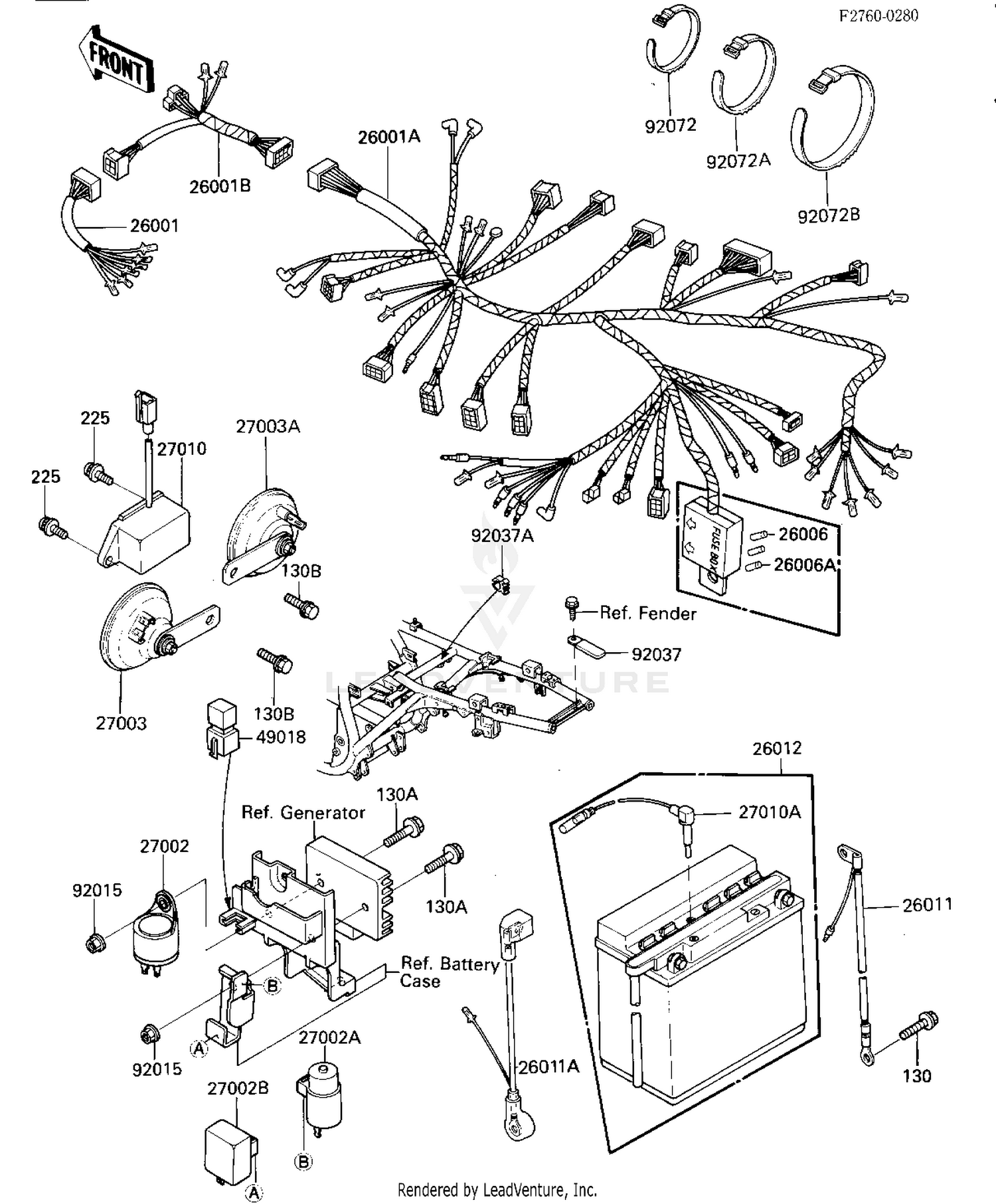

Chassis Electrical Equipment Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#26001
HARNESS,SUB,FR SIGNAL
26001-1520
|
$34.91 | ||
|
Available to order. Add to View Price |
|||
|
#26001A
HARNESS,MAIN
26001-1580
|
$199.83 | ||
|
Available to order. Add to View Price |
|||
|
#26001B
HARNESS,HEAD
26001-1654
|
$34.28 | ||
|
Available to order. Add to View Price |
|||
|
#26006
FUSE,GLASS TUBE,6.4X25,10
26006-003
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#26006A
FUSE,GLASS TUBE,6.4X25,20
26006-005
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD,BATTERY GRO
26011-1195
|
$22.40 | ||
|
Available to order. Add to View Price |
|||
|
#26011A
WIRE-LEAD,BATTERY
26011-1266
|
$36.08 | ||
|
Available to order. Add to View Price |
|||
|
#26012
YUA BAT YB12A-A SENSR
K26012-1050
|
$51.95 | ||
|
Available to order. Add to View Price |
|||
|
#27002
RELAY,HAZARD
27002-1001
|
$50.96 | ||
|
Available to order. Add to View Price |
|||
|
#27002A
RELAY-ASSY
27002-1051
|
$50.53 | ||
|
Available to order. Add to View Price |
|||
|
#27002B
RELAY-ASSY,TURN SIGNAL
27002-1053
|
$56.53 | ||
|
Available to order. Add to View Price |
|||
|
#27003
HORN,LH
27003-1057
Superseded by 27003-1370
|
$62.37 | ||
|
Available to order. Add to View Price |
|||
|
#27003A
HORN,RH
27003-1058
Superseded by 27003-1371
|
$66.45 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,RESERVE LIGHTING
27010-1069
|
$112.33 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,BATTERY,L=200
27010-1177
|
$44.23 | ||
|
Available to order. Add to View Price |
|||
|
#49018
DIODE
49018-1052
Superseded by 49018-0005
|
$45.31 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,L=60
92037-1069
Superseded by 92171-0652
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP
92037-1487
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=123
92072-030
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,L=149
92072-031
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072B
BAND,L=278
92072-1087
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X8
130B0608
Superseded by 130AA0608
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X25
130B0625
Superseded by 130AA0625
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#130B
BOLT-FLANGED,8X12
130C0812
Superseded by 130AB0812
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#225
SCREW-PAN-WSP-CROS
225B0620
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
