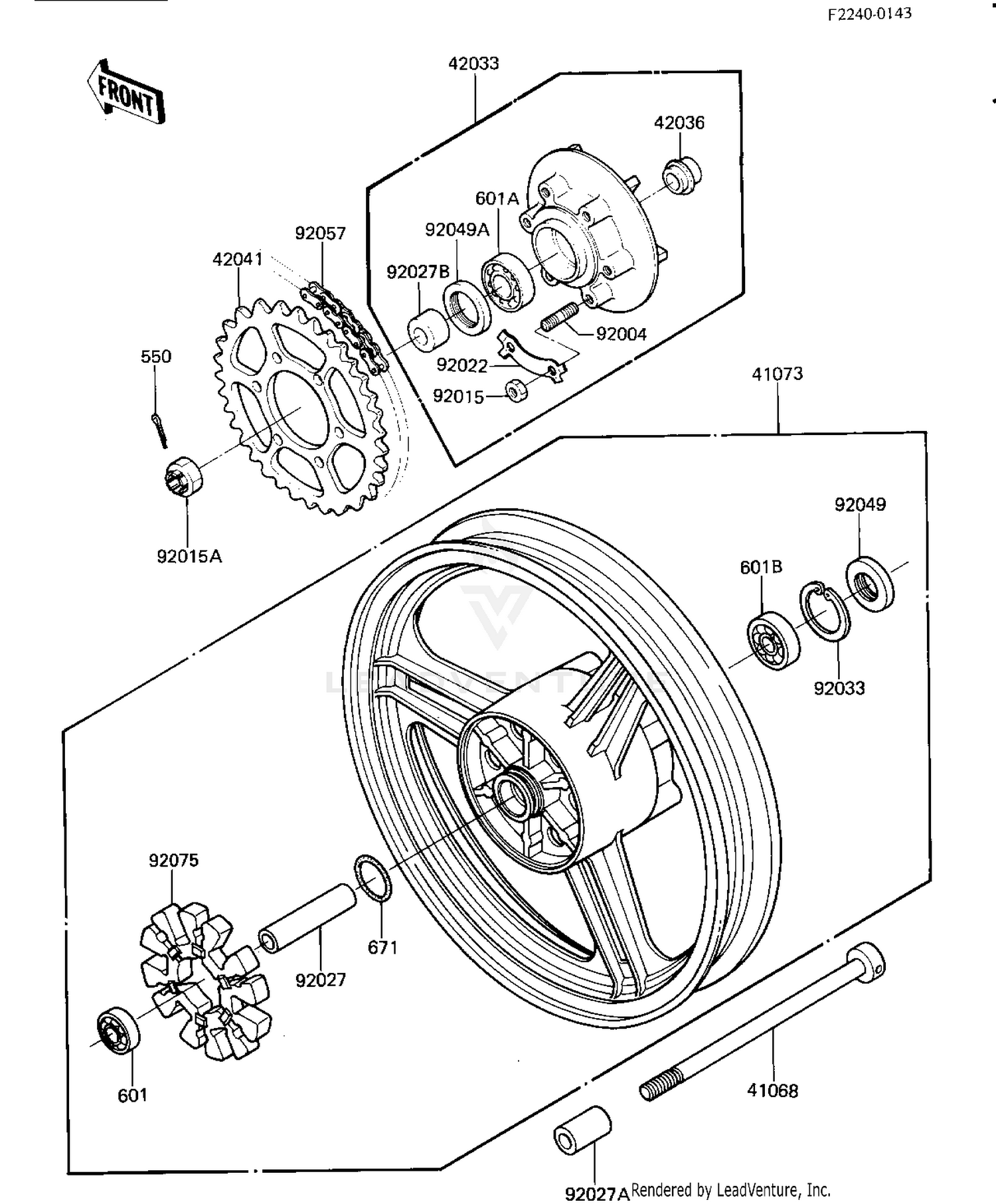

Rear Wheel/hub/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41068
AXLE,RR
41068-1086
|
$70.60 | ||
|
Available to order. Add to View Price |
|||
|
#41073
WHEEL-ASSY,RR,M.GRAY
41073-1275-J9
|
$630.95 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY
42033-1053
|
$178.34 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR HUB,L=30
42036-1055
|
$26.74 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,38T
42041-1165
|
$86.61 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD
92004-1062
Superseded by 92004-1274
|
$7.86 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT 10MM
42045-005
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CASTLE,16MM
92015-055
Superseded by 92015-1951
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,LOCK
92022-1212
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,17X25X92
92027-1545
|
$19.77 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,17X28X32
92027-1569
|
$17.16 | ||
|
Available to order. Add to View Price |
|||
|
#92027B
COLLAR,L=21
92027-1661
|
$24.33 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,47MM
92033-1042
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,BJN28475
92049-1056
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL
92052-006
Superseded by 92049-1287
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,EK520MVXL
92057-1159
Superseded by 92057-0048
|
$253.00 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1436
|
$88.79 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X35
550D4035
Superseded by 550AA4035
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#601
BRG,BALL,#6203ZZC3
601B6203ZZ
|
$21.20 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING BALL #6205
601B6205
|
$19.08 | ||
|
Available to order. Add to View Price |
|||
|
#601B
BRG,BALL,#6303ZZC3
601B6303ZZ
|
$38.83 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,50MM
671B2550
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
