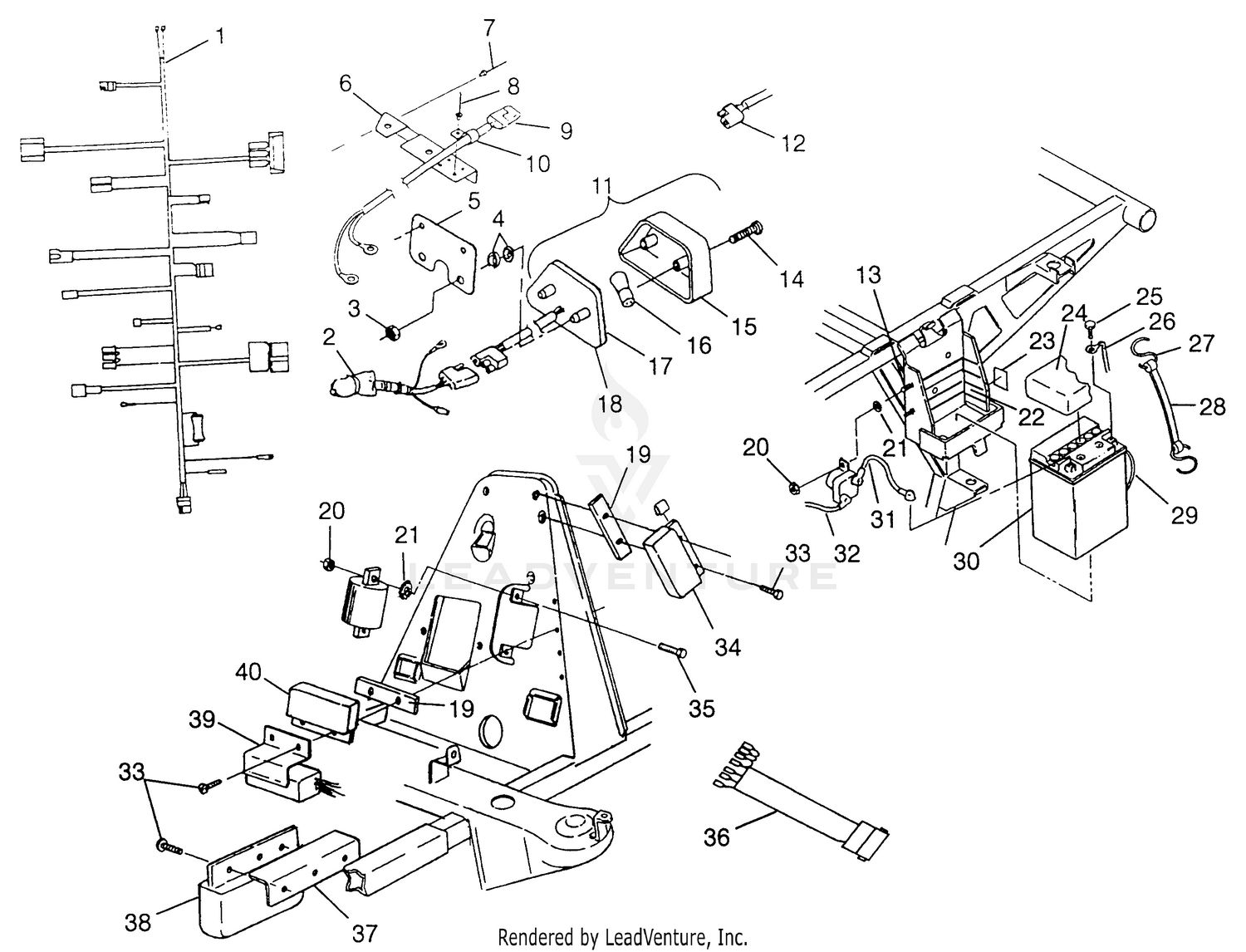

Electrical/taillight Big Boss 6x6 400l W97ae38a (4940814081d001) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS,MAINWIRE CONN.
2460607
|
|||
|
Unavailable |
|||
|
#2
CKT.BREAKER,20 AMP.
2434012
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPEED NUT-WASHER, HEAD-1/4
7670054
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER,NYLON(10)
7555916
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ISOLATOR,TAILLIGHT
5211391-067
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#6
Bracket, Taillight Mount
-------
|
|||
|
Unavailable |
|||
|
#7
Rivet
7621470
Superseded by 7621453
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RIVET,(50)
7621336
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
POWERPLUG ASM,12V.
2410023
|
$36.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP,BLK,5/16 PLASTIC(10)
7080524
|
|||
|
Unavailable |
|||
|
#11
TAIL LIGHT ASM.
2432034
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIGTAIL, POWER
2460442
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW(10)
7512027
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAILLIGHT
4032029
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
LENS,TAILLIGHT
4032046
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULB,TAILLIGHT
4030043
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET,TAILLIGHT
4032045
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BACKING,TAILLIGHT
4032064
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HEAT SINK
5210650
|
|||
|
Unavailable |
|||
|
#20
NUT(10)
7541925
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER(10)
7571602
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PAD-BATTERY
5810290
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
DECAL, BATTERY [No Longer Available]
7072606
|
|||
|
Unavailable |
|||
|
#24
COVER,BATTERY
5431769
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT,BATT,KIT(SHORT)
2200361
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CABLE,BATT/ENG.,BLK.
4010095
|
|||
|
Unavailable |
|||
|
#27
HOOK-BATT.H/D(10)
7010032
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Strap, Battery Holddown
5410424
Superseded by 5412499
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
TUBE,BATTERY VENT
5432077
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BATTERY
4140006
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CABLE,BATT/SOLENOID,RED
4010094
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CABLE,SOL/START,DBLBOOT
4010129
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
LIMITER,SPEED,650HZ,(NOR.) Substituted by 4010248
4060184
|
|||
|
Unavailable |
|||
|
#35
SCREW(10)
7512007
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
HARNESS,ADAPTOR JUMPER
2460637
|
|||
|
Unavailable |
|||
|
#37
HEATSINK RECT.
5131036
|
|||
|
Unavailable |
|||
|
#38
RECTIFIER,LR-37
4060133
|
|||
|
Unavailable |
|||
|
#39
BRKT,CDI(ATV 400)
5240428
|
|||
|
Unavailable |
|||
|
#40
LIMITER,RPM,350HZ,LR44-2 Substituted by 4060204
4060159
|
|||
|
Unavailable |
|||
