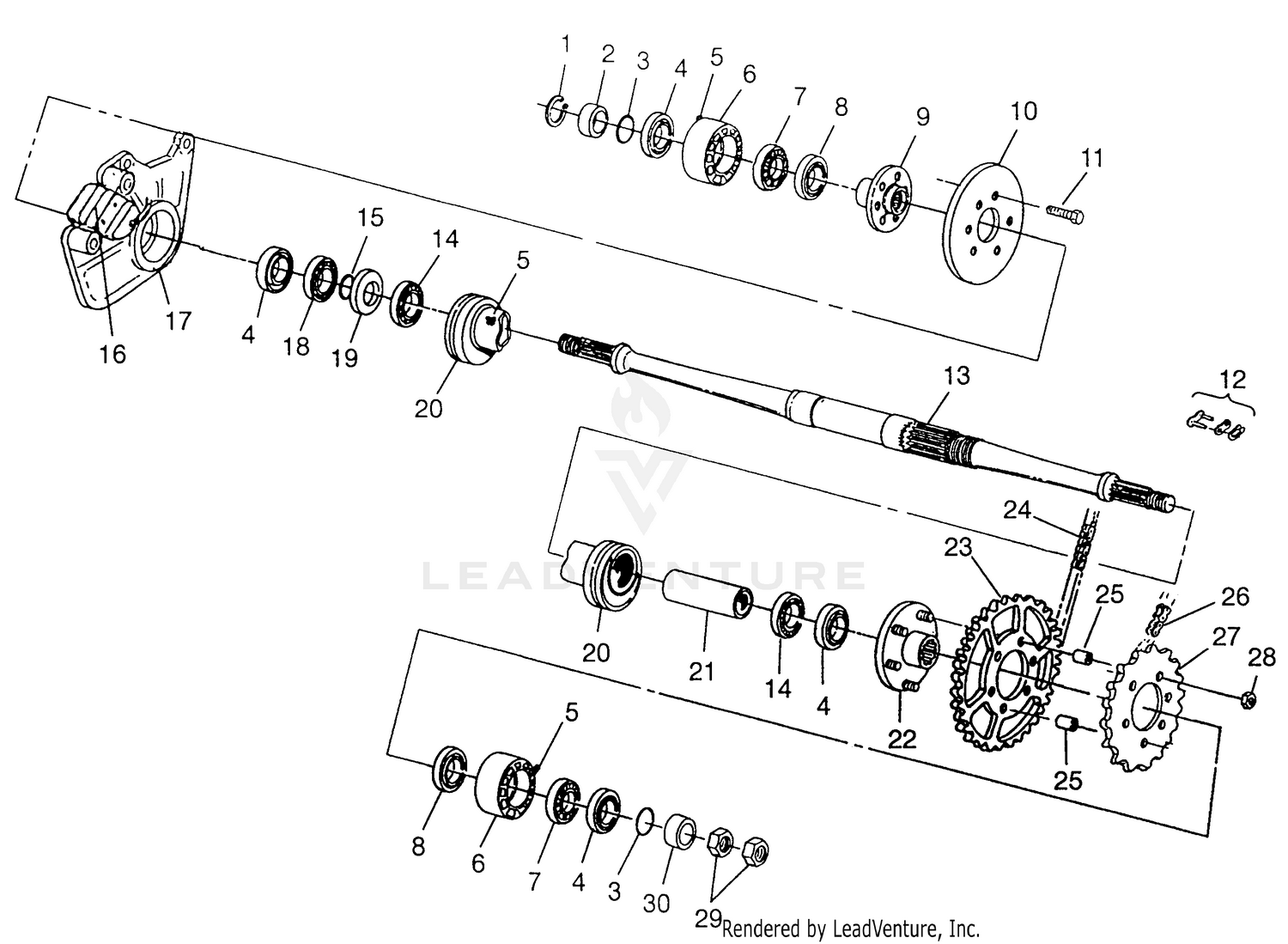

Middle Drive Big Boss 6x6 400l W97ae38a (4940814081c002) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING, SNAP(10)
7710414
|
|||
|
Unavailable |
|||
|
#2
SPACER
5020530
|
|||
|
Unavailable |
|||
|
#3
O RING
5410541
|
|||
|
Unavailable |
|||
|
#4
SEAL, REAR AXLE
3610013
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FITTING,LUBE.W/BALL CK.(10)
7080306
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOUSING,SWING ARM
5130945
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
3514807
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL
3610024
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HUB, BRAKE, BLK.
1910041-067
|
|||
|
Unavailable |
|||
|
#10
DISC,BRAKE
5211326
Superseded by 5242935
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT(10)
7515488
|
|||
|
Unavailable |
|||
|
#12
CONNECTOR LINK
3225024
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
AXLE,MIDDLE,(6X6)
5020803
|
|||
|
Unavailable |
|||
|
#14
BEARING, BALL
3515501
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O RING
5410537
|
|||
|
Unavailable |
|||
|
#16
Asm., Brake Caliper
-------
|
|||
|
Unavailable |
|||
|
#17
MOUNT,BRAKE CAL.
5130944
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
3515502
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER
5020531
|
|||
|
Unavailable |
|||
|
#20
HOUSING, AXLE
5130663
|
$97.49 | ||
|
Unavailable |
|||
|
#21
NOT AVAILABLE
5010204
Superseded by 9999999
|
|||
|
Available to order. Add to View Price |
|||
|
#22
HUB,SPROCKET ASM.
1520172
|
|||
|
Unavailable |
|||
|
#23
SPROCKET,42T,(ATV)
3222070
|
|||
|
Unavailable |
|||
|
#24
CHAIN-520 ORD4,O-RING,88 PTCH
3224042
Superseded by 3221193-088
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPACER
5332935
|
|||
|
Unavailable |
|||
|
#26
DRIVECHAIN ASM, 116P
3224055
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPROCKET, 30T
3222047
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT LOCK(10)
7542403
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, JAM
7543601
|
|||
|
Unavailable |
|||
|
#30
SPACER
5020532
|
|||
|
Unavailable |
|||
