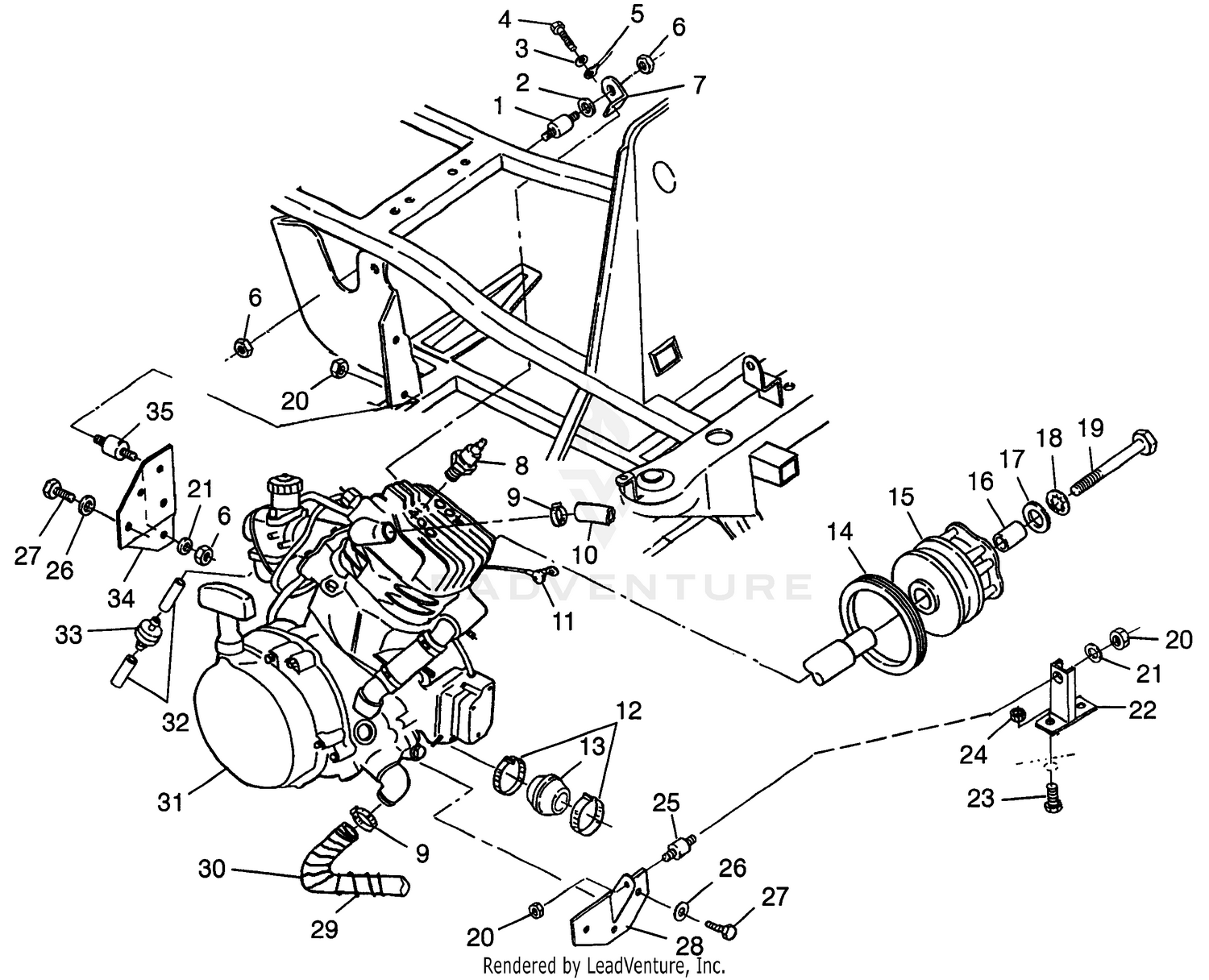

Engine Mounting Big Boss 6x6 400l W97ae38a (4940814081a010) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ISOLATOR-3/8-24M/M,65DURO
3110038
Superseded by 3022069
|
$30.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
INSULATOR,MOTOR MT.
5430802
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT(10)
7515321
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE,GND-ENGINE
4010132
|
$30.99 | ||
|
Unavailable |
|||
|
#6
NUT LOCK(10)
7542411
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
MOUNT,ENG,TOP
5241801-067
|
|||
|
Unavailable |
|||
|
#8
SPARKPLUG (10)
3070156
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP,HOSE,(10)
7080614
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE,ENG,UPPER
5410570
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CABLE,SOL/START,DBLBOOT
4010129
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP, NARROW BAND(10)
7080511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOOT,CLUTCH INTAKE(400)
5410883
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Seal, Cover Case
-------
|
|||
|
Unavailable |
|||
|
#15
Asm., Drive Clutch
-------
|
|||
|
Unavailable |
|||
|
#16
BUSHING-.437 X.770 X.50
5430261
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-.440X1.25X.190 FL-Y
5210748
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-7/16-INT LK-(1222)-Z
7575202
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT(10)
7512566
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT LOCK(10)
7542403
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER(10)
7555801
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
MOUNT,ENG,LOW,BLK
1040532-067
|
|||
|
Unavailable |
|||
|
#23
BOLT(10)
7512457
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT-LOCK(10)
7542439
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
MOUNT,MOTOR
3110026
Superseded by 3022067
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING LOCK
7553001
Superseded by 7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW(10)
7512490
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
MOUNT,ENGINE
1040231-067
|
|||
|
Unavailable |
|||
|
#29
SPRING,HOSE RETAINER
7041079
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE,LOWER ENGINE
5411173
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
ENG.(S.B.)EC38PLE-O7 Substituted by 1211625
3085547
|
|||
|
Unavailable |
|||
|
#32
FUEL LINE,1/8 ID,600 CM.
8360009-600
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Valve, Check
7052047
Superseded by 7051011
|
$9.29 | ||
|
Unavailable |
|||
|
#34
MOUNT, REAR MOTOR, BLK.
5240542-067
|
|||
|
Unavailable |
|||
|
#35
ISOLATOR-3/8-24M/M,60DURO
3110042
Superseded by 3022070
|
$27.79 | ||
|
Unavailable |
|||
