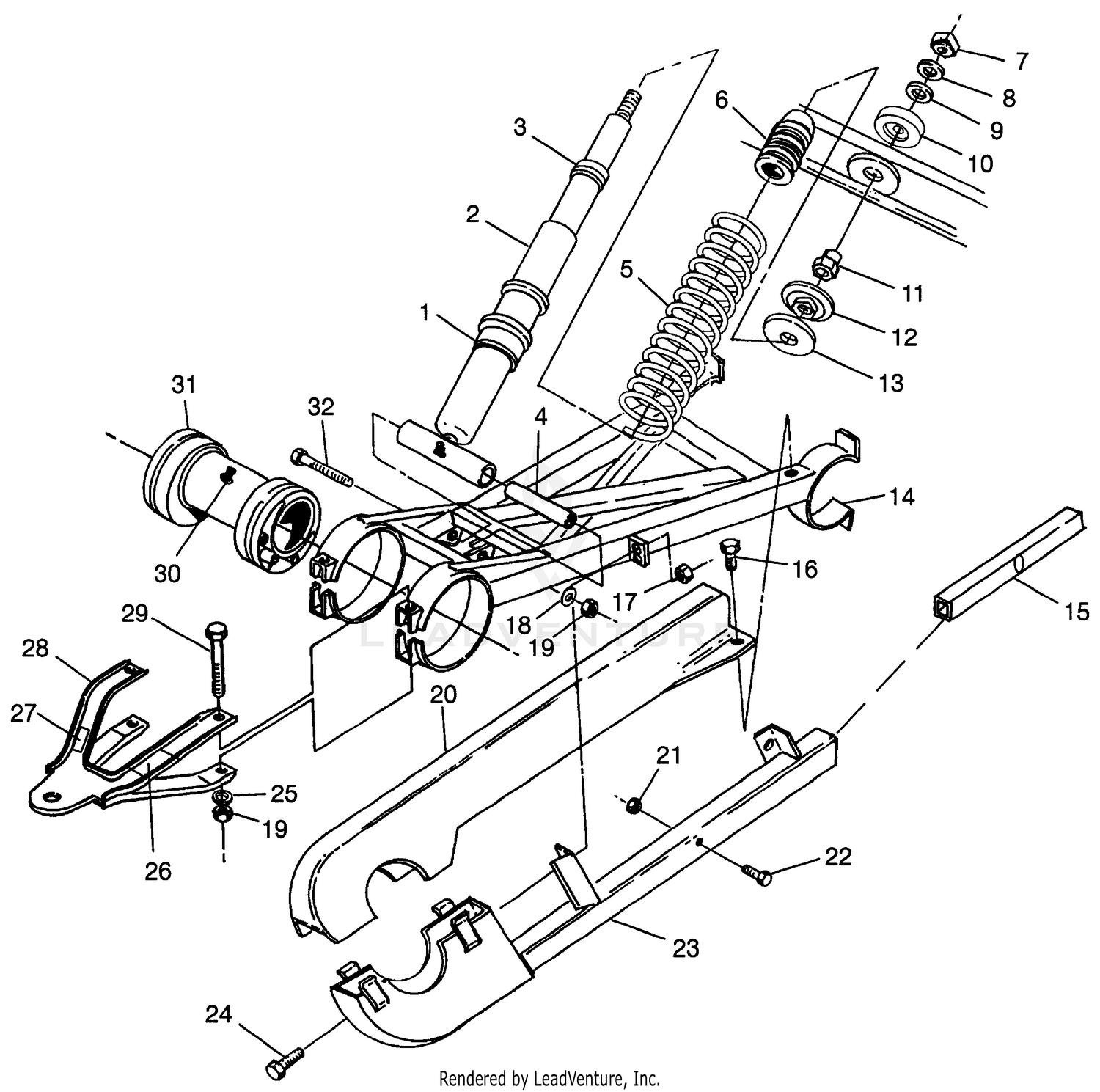

Swing Arm Weldment (rear) Big Boss 6x6 400l W97ae38a (4940814081c014) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ADAPTER,SPRING,SEAT
5630351
|
|||
|
Unavailable |
|||
|
#2
STRUT, REAR, BLK.
1580053-067
|
|||
|
Unavailable |
|||
|
#2
STRUT ASM,REAR
1580078
|
|||
|
Unavailable |
|||
|
#3
CAP, STRIKER
1580070
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE,STRUT MT.SLEEVE
5333172
|
|||
|
Unavailable |
|||
|
#5
SPRING,COMP,BLK.
7041303-067
|
|||
|
Unavailable |
|||
|
#6
BUMPER-MCU,19.1MM ID
5410535
Superseded by 5412529
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT,FLEX LOC(10)
7542507
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER(10)
7555749
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER-RUBBER
5810291
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIVOT-BALL,TOP,DELRIN
5430806
Superseded by 5432872
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER, THREADED
5130631
|
|||
|
Unavailable |
|||
|
#12
PIVOT-BALL,BOTTOM,DELRIN
5430807
Superseded by 5432871
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER(10)
7555740
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ARM,SWING,EXT.
1580055-067
|
|||
|
Unavailable |
|||
|
#15
GUIDE, REAR, CHAIN
5521279
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW(10)
7512252
|
|||
|
Unavailable |
|||
|
#17
NUT, NYLOK(10)
7542327
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Washer, Flat
7555776
Superseded by 7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, LOCK,(10)
7542503
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GUARD,CHAIN,TOP,EXT.
5431556
|
|||
|
Unavailable |
|||
|
#21
NUT(10)
7541925
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW(10)
7515117
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GUARD,CHAIN,LOW.EXT.
1040287-067
|
|||
|
Unavailable |
|||
|
#24
BOLT(10)
7512325
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER(10)
7555883
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Decal - Chain Tension
-------
|
|||
|
Unavailable |
|||
|
#27
DECAL, HITCH Substituted by 7078261
7072533
|
|||
|
Unavailable |
|||
|
#28
Kit, Hitch
2200472
Superseded by 2873036
|
$36.99 | ||
|
Unavailable |
|||
|
#29
BOLT(10)
7512576
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
FITTING,LUBE.W/BALL CK.(10)
7080306
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOUSING, AXLE
5130663
|
$97.49 | ||
|
Unavailable |
|||
|
#32
BOLT(10)
7512579
|
$8.99 | ||
|
Unavailable |
|||
