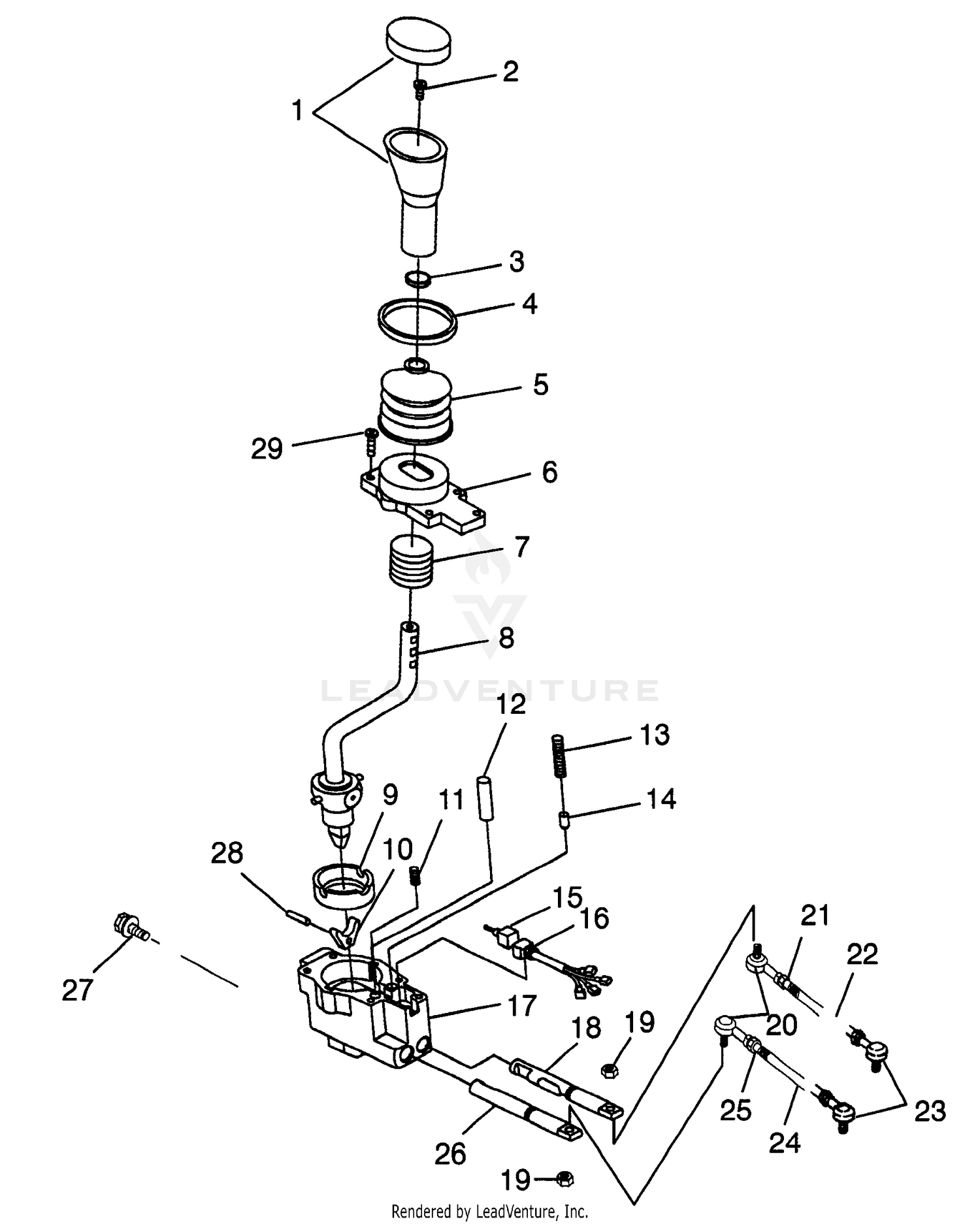

Gear Selector Big Boss 6x6 400l W97ae38a (4940814081d005) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
SELECTOR ASM,GEAR,GENII
1341220
|
|||
|
Unavailable |
|||
|
#1
GEAR SELECT KNOB,HLR,BLACK,ASM.
3233195
Superseded by 3233195-070
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW,(10)
7512024
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STRAP, WIRE
3233131
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP
3233132
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT,GEAR SELECTOR
3233368
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER,GEAR SELECTOR
3233213
|
|||
|
Unavailable |
|||
|
#7
SPRING,HOLDING
3233158
|
$4.99 | ||
|
Unavailable |
|||
|
#8
HANDLE,SUBASM,GS 400
3233458
|
|||
|
Unavailable |
|||
|
#9
CUP,BEARING
3233063
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
INTERLOCK,BUTTERFLY
3233084
|
|||
|
Unavailable |
|||
|
#11
SPRING,CENTERING
3233083
|
|||
|
Unavailable |
|||
|
#12
PIN, STOP
3233062
|
$13.39 | ||
|
Unavailable |
|||
|
#13
SPRING,DETENT
3233069
|
$7.19 | ||
|
Unavailable |
|||
|
#14
BULLET,DETENT
3233060
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SW,GEARSELECT,W/THRM.JKT.
3233455
|
|||
|
Unavailable |
|||
|
#16
STRAP, WIRE
3233090
|
|||
|
Unavailable |
|||
|
#17
BODY,GEARSELECT
3233457
|
|||
|
Unavailable |
|||
|
#18
SLIDE ASM,HIGH/REV
3233217
|
|||
|
Unavailable |
|||
|
#19
NUT-6MM X 1 NYLOK-Z
7546707
Superseded by 7546703
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROD END,RH,6MM.
7061014
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT(10)
7546701
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
ROD,SHIFTLINK,LOW
5020936
|
$39.19 | ||
|
Available to order. Add to View Price |
|||
|
#23
ROD END,LH,6MM.
7061013
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
ROD,HI-RA.SHIFTLINK
5020690
Superseded by 5020729
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT(10)
7546702
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SLIDE ASM,LOW
3233218
|
|||
|
Unavailable |
|||
|
#27
SCREW(10)
7515181
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN,INTERLOCK
3233070
|
|||
|
Unavailable |
|||
|
#29
SCREW,MAGNIGARD COATED
3233085
Superseded by 3233498
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
