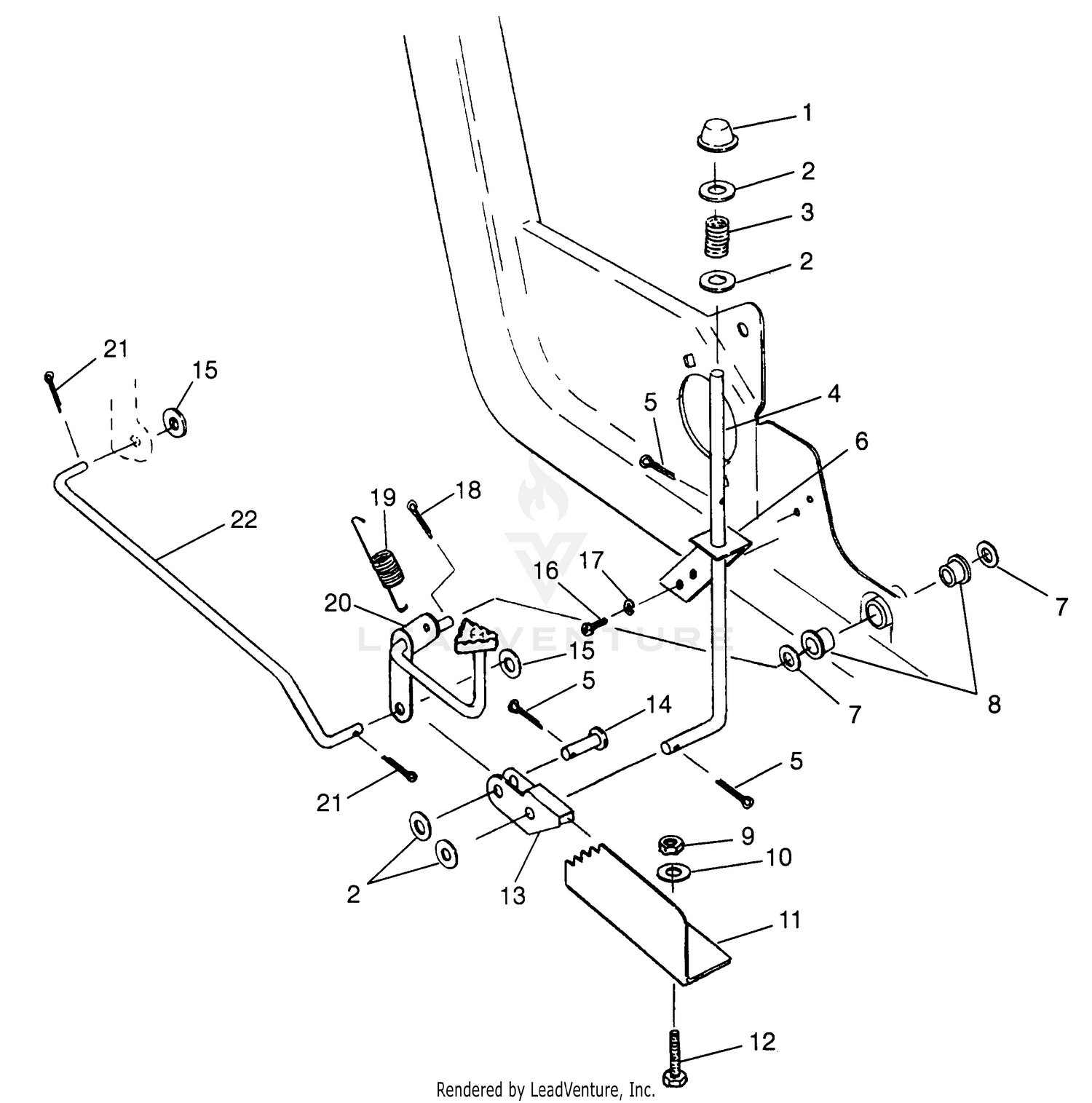

Foot Pedal And Parking Brake Norwegian Big Boss 6x6 400l N97ae38d (4940814081d01a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
BRAKELOCK ASM,(SWED),W/FOOT BRK.
1910154
|
|||
|
Unavailable |
|||
|
#1
PUSHNUT, RED(10)
7670063
|
|||
|
Unavailable |
|||
|
#2
WASHER, FLAT(10)
7558201
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING
7041365
|
|||
|
Unavailable |
|||
|
#4
ROD,BRAKELOCK
5224548
|
|||
|
Unavailable |
|||
|
#5
PIN, COTTER(10)
7661010
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAND OFF
5240525
|
|||
|
Unavailable |
|||
|
#7
WASHER(10)
7555919
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSHING-PEDAL PIVOT
5431107
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-LOCK(10)
7542124
Superseded by 7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Washer
7555843
Superseded by 7558302
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CATCH
5240526
|
|||
|
Unavailable |
|||
|
#12
BOLT(10) Substituted by 7512269
7515101
|
|||
|
Unavailable |
|||
|
#13
FLIPPER
5240524
|
|||
|
Unavailable |
|||
|
#14
PIN, CLEVIS(10)
7661640
|
|||
|
Unavailable |
|||
|
#15
WASHER(10)
7555806
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,(10)
7512024
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DESC NOT_AVAILABLE
7552601
|
|||
|
Unavailable |
|||
|
#18
COTTER PIN(10)
7661401
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING-EXHAUST(10)
7042029
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FOOTBRAKE,BLK.
1910144-067
|
|||
|
Unavailable |
|||
|
#21
PIN COTTER(10)
7661203
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
ROD, BRAKE
5224531
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
