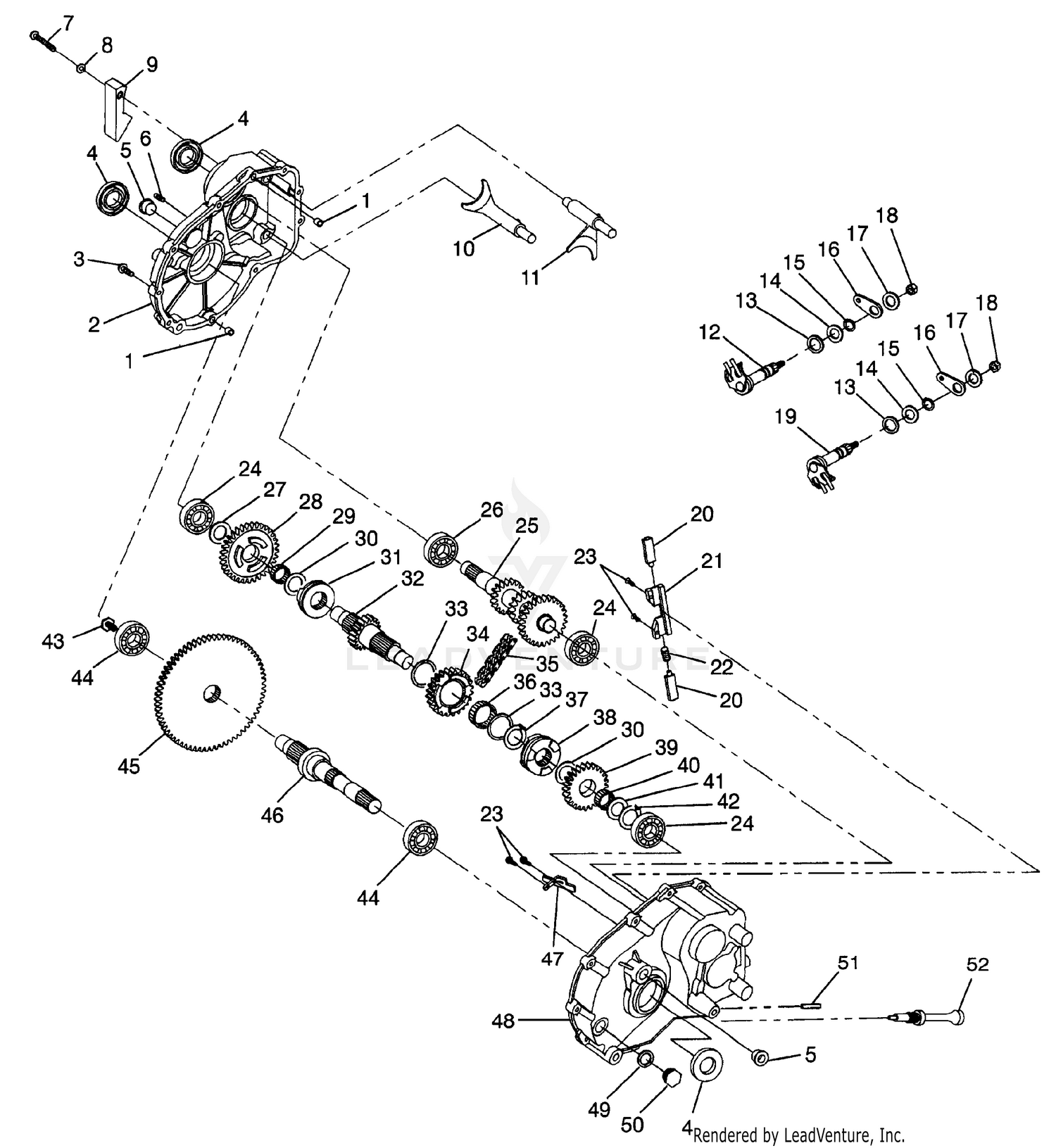

Gearcase Big Boss 6x6 400l W97ae38a (4940814081d003) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
GEARCASE ASM,(400)
1341157
|
|||
|
Unavailable |
|||
|
#1
PIPE, KNOCK
3233021
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
CASE, LH
3233002
|
|||
|
Unavailable |
|||
|
#3
SCREW
3233026
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Seal, Triple Lip
3233248
Superseded by 3233788
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSHING,PIVOT
3233024
|
|||
|
Unavailable |
|||
|
#6
STUD
3233025
|
|||
|
Unavailable |
|||
|
#7
BOLT,(10)
7512265
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER(10)
7555827
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPENER,CARBURETOR
5432082
|
|||
|
Unavailable |
|||
|
#10
SHIFTRAIL,LOW
3233022
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIFTRAIL,HIGH/REV.
3233023
|
|||
|
Unavailable |
|||
|
#12
SHAFT,LOW SHIFT
3233038
|
|||
|
Unavailable |
|||
|
#13
O-Ring
3233044
Superseded by 3233548
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
3233040
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BELLCRANK
3233153
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
3233054
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Nut, Lock
3233055
Superseded by 3233961
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT,HI/REV,SHIFT
3233039
|
|||
|
Unavailable |
|||
|
#20
PIN
3233031
|
$36.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET
3233030
|
$26.79 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING
3233032
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Screw, Tapping
3233033
Superseded by 3233747
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
3233018
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHAFT, INPUT
3233122
|
|||
|
Unavailable |
|||
|
#26
BEARING, BALL, 6205 C3 25X52X15
3233019
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
3233007
|
|||
|
Unavailable |
|||
|
#28
GEAR, 33T
3233125
|
|||
|
Unavailable |
|||
|
#29
BEARING,NEEDLE
3233009
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER
3233010
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
DOG,ENGAGEMENT,LOW
3233126
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SHAFT,REVERSE
3233175
|
$369.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER
3233012
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPROCKET, 24T
3233127
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CHAIN,SILENT,34P
3233036
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING,NEEDLE
3233014
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
RING,RETAINING
3233029
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
DOG,ENGAGEMENT,HI/REV.
3233128
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
GEAR, 25T
3233129
|
|||
|
Unavailable |
|||
|
#40
BEARING,NEEDLE
3233017
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER
3233176
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
RING,RETAINING
3233177
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BUSHING,SPEEDO.DRIVE
5020741
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#44
BEARING
3233020
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
GEAR, 65T
3233130
|
|||
|
Unavailable |
|||
|
#46
SHAFT,OUTPUT
3233123
|
|||
|
Unavailable |
|||
|
#47
DEFLECTOR,OIL
3233043
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
CASE, RH
3233003
|
|||
|
Unavailable |
|||
|
#49
WASHER
3233035
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
PLUG
3233448
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
VENT
3233037
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
Dipstick
3233115
Superseded by 3233478
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
