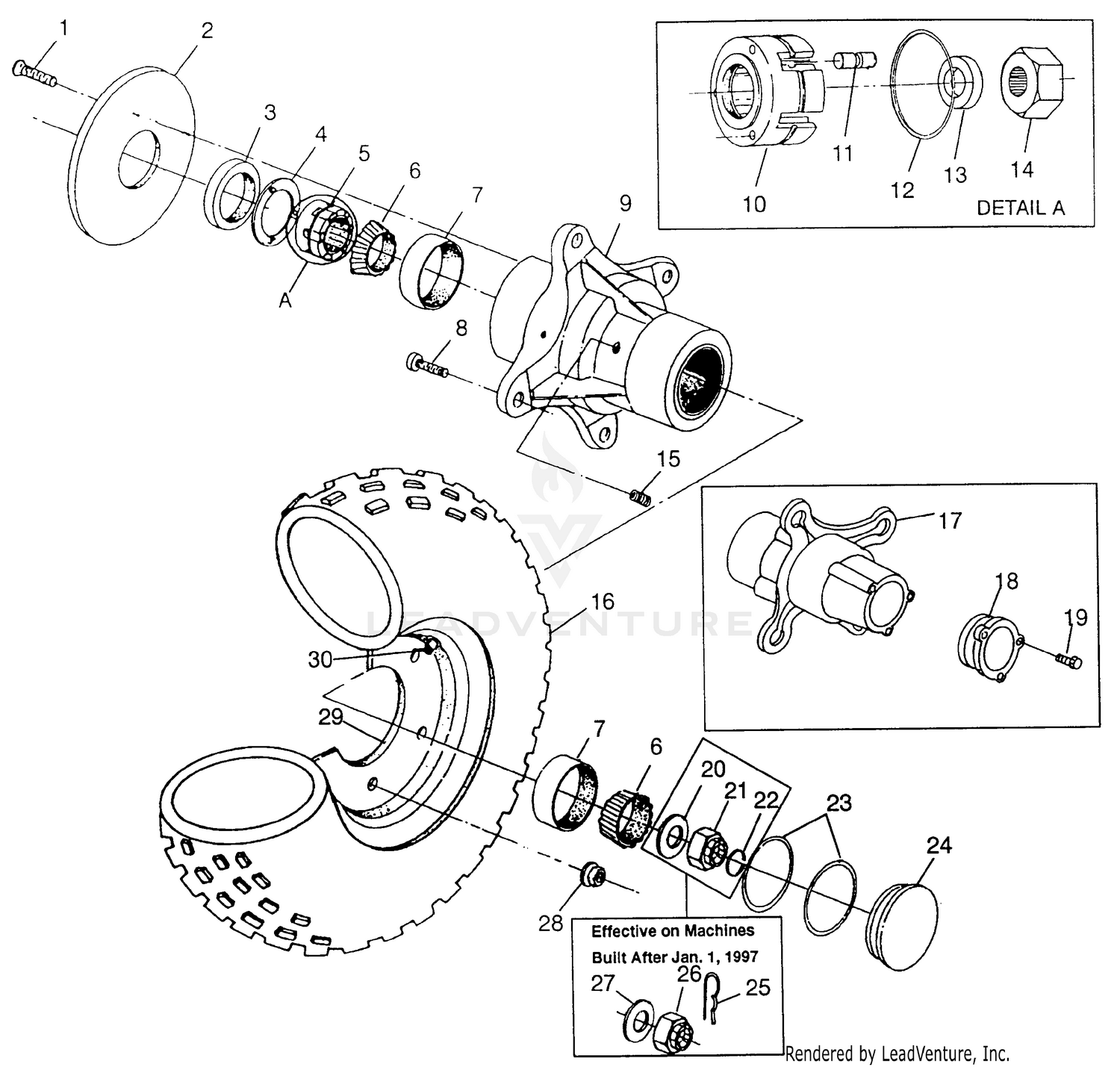

Front Wheel Big Boss 6x6 400l W97ae38a (4940814081b007) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT(10)
7515321
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
DISC,BRAKE
5211326
Superseded by 5242935
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL, FR. HUB
3610019
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, ARMATURE
5211148
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Clutch, Front Hub, Elec./Mech.
1520214
Superseded by 1520281
|
$354.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRG,TAPER.ROLL.CONE
3554506
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRG,TAPER,ROLL CUP
3554507
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
STUD(10)
7515523
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HUB ASM,W/BRG.RACE
1520182
|
|||
|
Unavailable |
|||
|
#10
CAGE, ROLL
3250028
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROLLS
3250010
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING,GARTER
3250032
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Spacer
3250031
Superseded by 1321814
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAM
3250030
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG,PIPE
7052045
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
TIRE-25X8-12 NHS,489
5410947
Superseded by 5413994
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HUB ASM,(3-LOBE)W/BRG.RACE
1520227
|
|||
|
Unavailable |
|||
|
#18
CAP,HUB,3-LOBE,AWD
5432347
Superseded by 5432611
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW(10)
7517250
|
$3.29 | ||
|
Unavailable |
|||
|
#20
WASHER(10)
7555903
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT,RH THREAD
7543201
|
|||
|
Unavailable |
|||
|
#21
NUT,LH THREAD
7543204
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING,RETAINING(10)
7710436
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O RING
5410470
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAP, HUB
5431367
|
$9.29 | ||
|
Unavailable |
|||
|
#25
COTTER PIN(10)
7661401
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SLOTTED(10)
7542810
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
7556004
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT-HXFL-3/8-24 B ZTB P-A
7542459
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Rim, Front, Silver
1520179-117
Superseded by 1520269-486
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
VALVE-RIM
1525017
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
