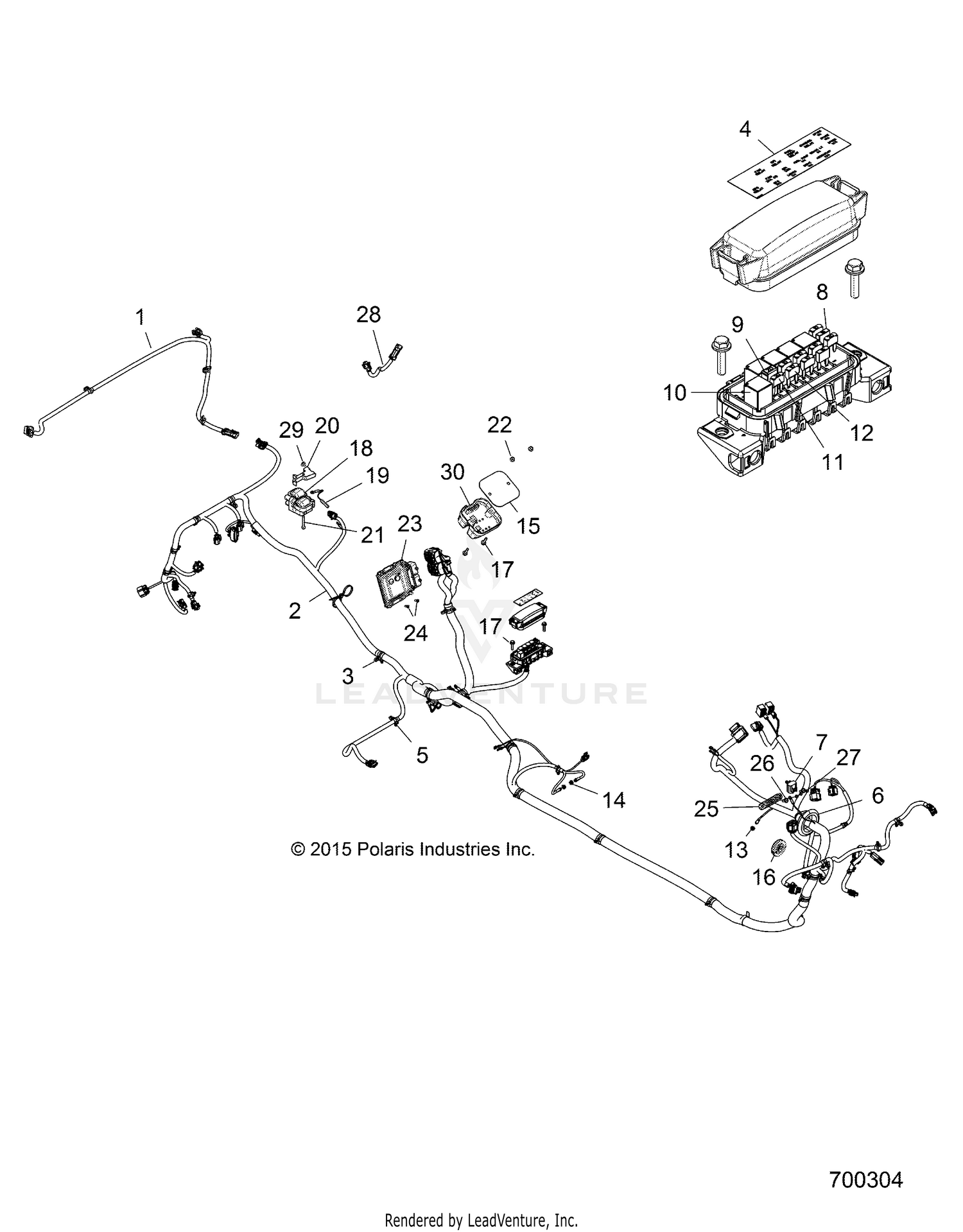

Electrical, Wire Harness - Z16vfe99af/as/am (700304) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, BOX
2412884
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HARNESS, CHASSIS
2413233
|
$1,264.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE-TIE,DIA6-38MM,DUAL-LOOP
7081916
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LABEL-FUSE BOX
7180894
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP-ROUTING
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET-65MM,BLK
5813954
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER-DIAGNOSTIC,W/CLIP
4012170
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE-15AMP,MINI BLADE
2410280
Superseded by 4010859
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BREAKER-CIRCUIT,20 AMP
4011372
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RELAY-SPST,12V,20A,EPXY,HFA
4011283
Superseded by 4016819
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Fuse, 20 AMP
2434017
Superseded by 4012811
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUSE-IGNITION,10 AMP
2434016
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LED-PANEL MNT,12V,BLUE
2413217
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP-ROUTING,DIN BOX
7082020
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, HEAT SINK, REGULATOR
5254970
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
5414440
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE, BLACK
7518576
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Kit, Ignition Coil
4010425
Superseded by 2876049
|
$284.99 | ||
|
Unavailable |
|||
|
#19
JUMPER ,COIL GROUND
4014422
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER-COIL MOUNT
5436577
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
7518780
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
ECM, NO START
4014125
|
$694.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
7519091
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BLOCK-TERMINAL,3 POST,TALL
4015778
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW
7518196
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
7547341
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WIRE, THERMISTER LEAD
4014319
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT-M6 FLANGE,NYLOC
7547274
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
K-REGULATOR ADAPTER
2206367
|
$93.87 | ||
|
Available to order. Add to View Price |
|||
|
#30
REGULATOR-3PH,50A,SERIES,HISPD
4014856
Superseded by 4016868
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
HARNESS-REGULATOR ADAPTE
2413573
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCR-HXFL-M6X1.0X30,RIE,DGPNT
7519202
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Unavailable |
|||
