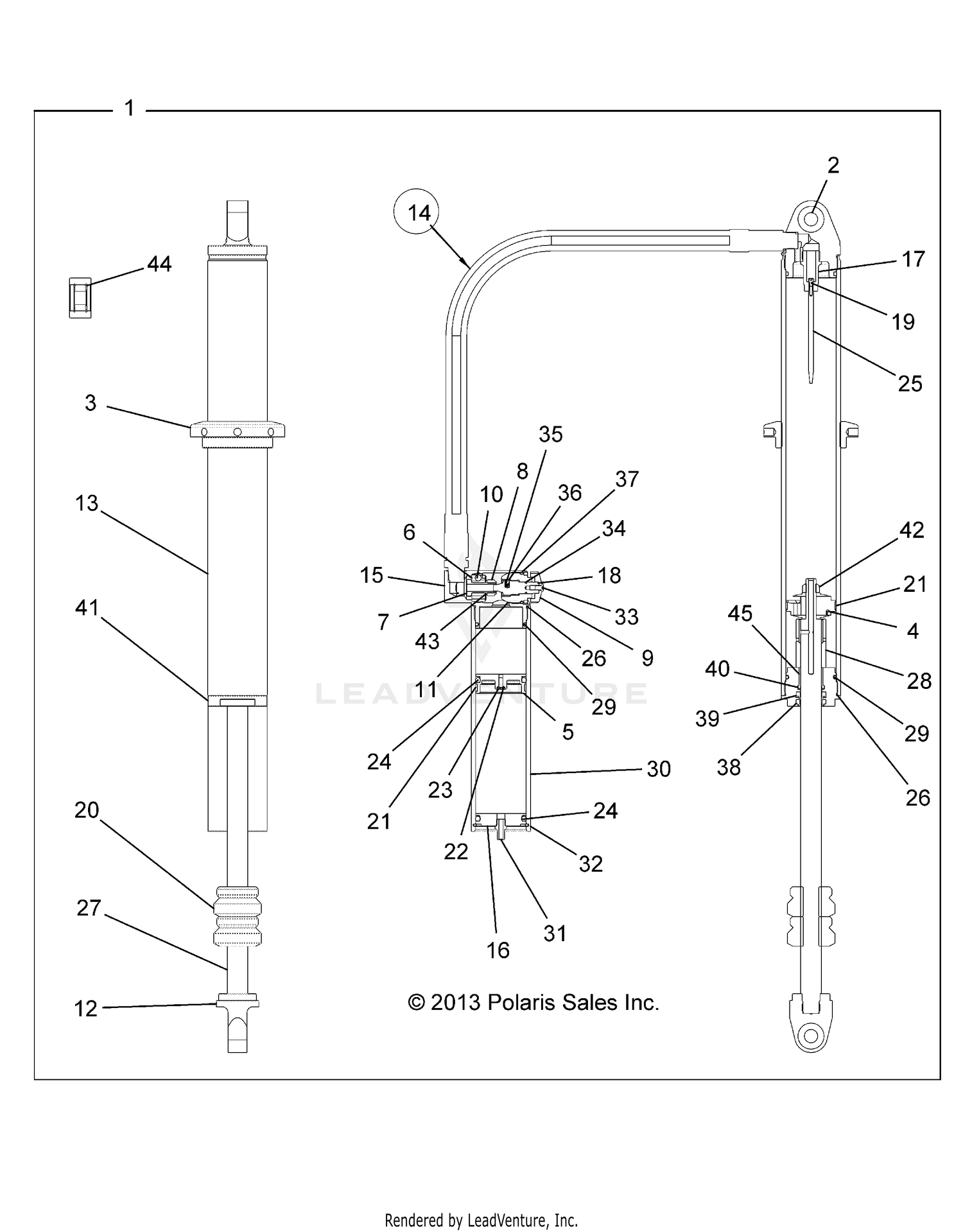

Suspension, Rear Shock - Z16vfe99af/as/am (49rgrshockrr7044087) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK, REAR, 2.5, MP
7044371
|
$939.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING, SPHERICAL
1800592
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SPRING
1800715
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON
1800486
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON
1800480
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE
1800546
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CLICKER
1800547
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, CRIMP
1800164
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
KNOB, ADJUSTER
1800553
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BALL
1800548
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
1800492
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
LOOP, SHAFT
1800555
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BODY, 2.5", 18.55L
1800718
|
$504.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE
1800607
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
MOUNT, RESERVOIR
1800608
|
$294.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
END CAP
1800552
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, NEEDLE
1800611
|
$38.19 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
1800493
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Screw
1800074
Superseded by 1800299
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BUMPER
1800201
Superseded by 1800593
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, PISTON
1800509
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING, BLEED SCREW
1800210
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, BLEED
1800043
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
1800508
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NEEDLE
1800612
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
1800613
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SHAFT
1800632
|
$439.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPACER
1800610
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
1800500
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BODY, RESERVOIR
1800633
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
VALVE
1800021
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
RING, RETAINING
1800507
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW
1800357
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING
1800215
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPRING-D-TENT
1800128
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BALL, DETENT
1800127
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING
1800503
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
WIPER
1800641
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SEAL, SHAFT
1800642
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
O-RING
1800636
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
SEAL HEAD
1800637
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, NYLOK
1800638
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER
1800639
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
RING, RETAINING
1800481
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
SHAFT BUSHING, .875
1800643
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
