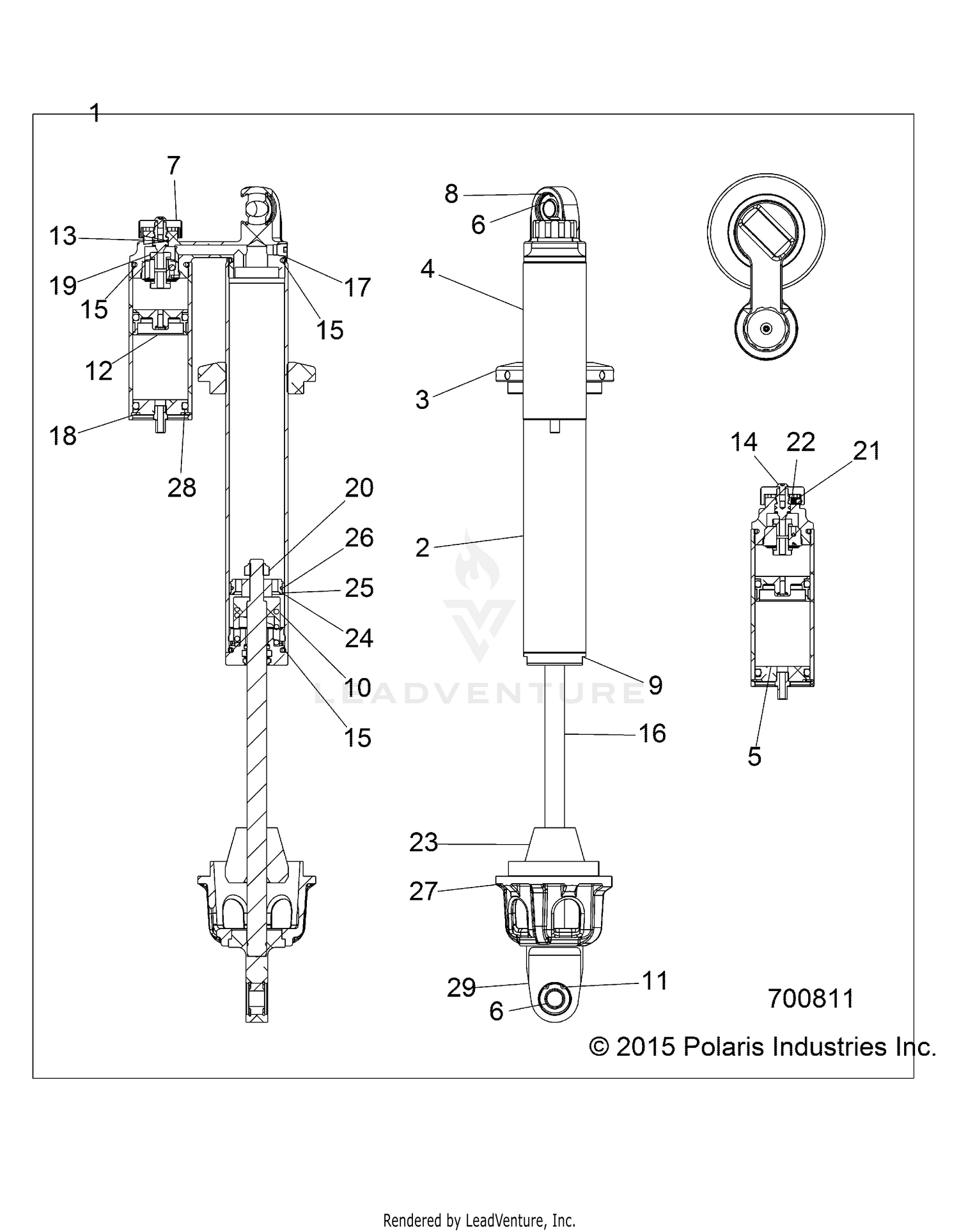

Suspension, Front Shock - Z16vfm99am (700811) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK, FRONT, RH, PASSENGER
7044597
|
$889.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
SHOCK, FRONT, LH, DRIVER
7044596
|
$889.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
2.0 CO BODY
1800602
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING NUT
1800514
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
2.0IN RES BODY 5.0L BLACK
1800575
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP,,END RES 2IN ASM
1800755
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPHERICAL BEARING 1.0OD X .50 ID W TEFLON
1800616
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLICKER KNOB (BLACK)
1800418
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
2IN 45 DEG PB BL RH PASS
1800594
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LH DRIVER 45DEG PB BL
1800595
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HEAD, W NEG SPRING ASM 2IN
1800761
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HYDRO DROOP SPACER
1800598
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING, SNAP 1.0ID
1800041
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SA-0624204 PISTON, RES, IFP
1800739
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLICKER STUD ASM
1800758
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, HEAD
1800357
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING BODY LOOP
1800030
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
12.620L SHAFT-CHROME
1800756
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
1/8 PIPE PLUG
1800599
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RING, SNAP
1800159
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLICKER PISTON ASM
1800757
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, CRIMP (CASTLE) 7/16
1800164
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL, DETENT 3/16"
1800127
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING-D-TENT
1800128
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUMP STOP, MCU, 2.0DIA X
1800603
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PISTON,2IN 3 PORT HI FLOW
1800759
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAND, PISTON WEAR
1800185
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING 2-029 VITON
1800760
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
RETAINER-SPRING,CAST
5633421
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING 2-324
1800184
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
EXT SHAFTLOOP .625THD
1800600
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
