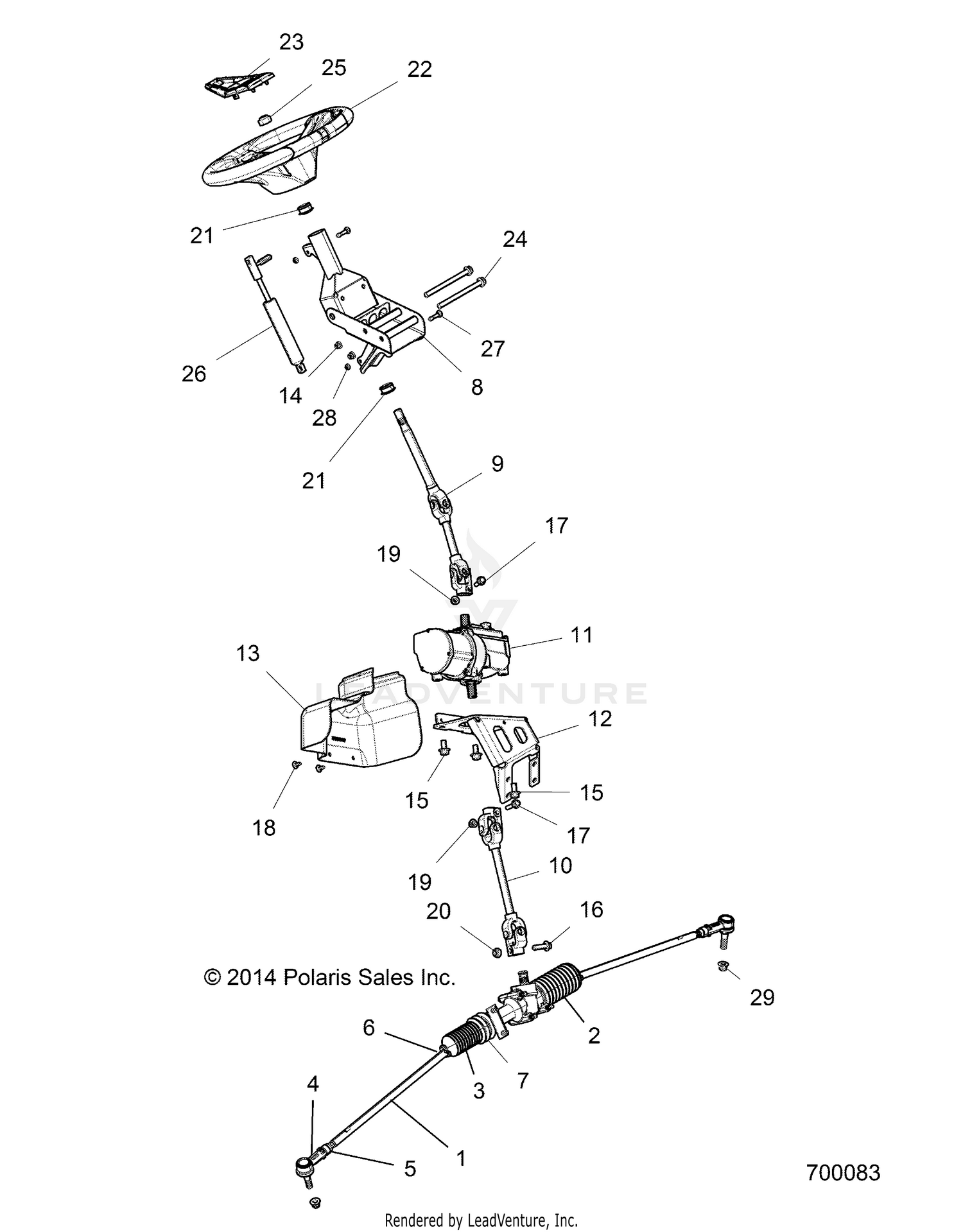

Steering, Steering Asm. - Z16vfe99af/as/am/m99am (700083) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM., GEAR BOX, STEERING
1824205
Superseded by 1824469
|
$689.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
D.S. BELLOWS
5412012
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
P.S. BELLOWS
5412013
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TIE ROD, OUTER
7061189
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, JAM
2205058
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP, SMALL
7080978
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, LARGE
7080979
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ASM-TILT,STEERING,RVTD,M10,BLK
1824317-458
Superseded by 1824420-458
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ASM-TILT,STEERING,RVTD,M10,BLK
1824420-458
|
$179.99 | ||
|
Unavailable |
|||
|
#9
SHAFT, STEERING, UPPER
1823891
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT, STEERING LOWER, EPS
1824012
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ASM., POWER STEERING
2413041
|
$2,239.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
MOUNT, EPS, BLACK
5257531-329
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, EPS
5438626
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
7518558
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
7518644
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
7519052
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
7519092
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
7547385
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSHING-STEERING
7556675
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WHEEL, STEERING
1824014
|
$159.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, STEERING WHEEL, I. RED
5450255-293
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, STEERING WHEEL, WHITE LIGHTNING
5450255-599
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, STEERING WHEEL, LIME SQUEEZE
5450255-630
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
7518665
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
7547506
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
ASM-SHOCK,OIL LOCKING,MACH
7044098
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCR-SH-M6X1.0X11 12.9 ZB SHB
7519980
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT-6MM X 1 NYLOK-Z
7546703
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, FLANGE, NYLOK
7547334
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
