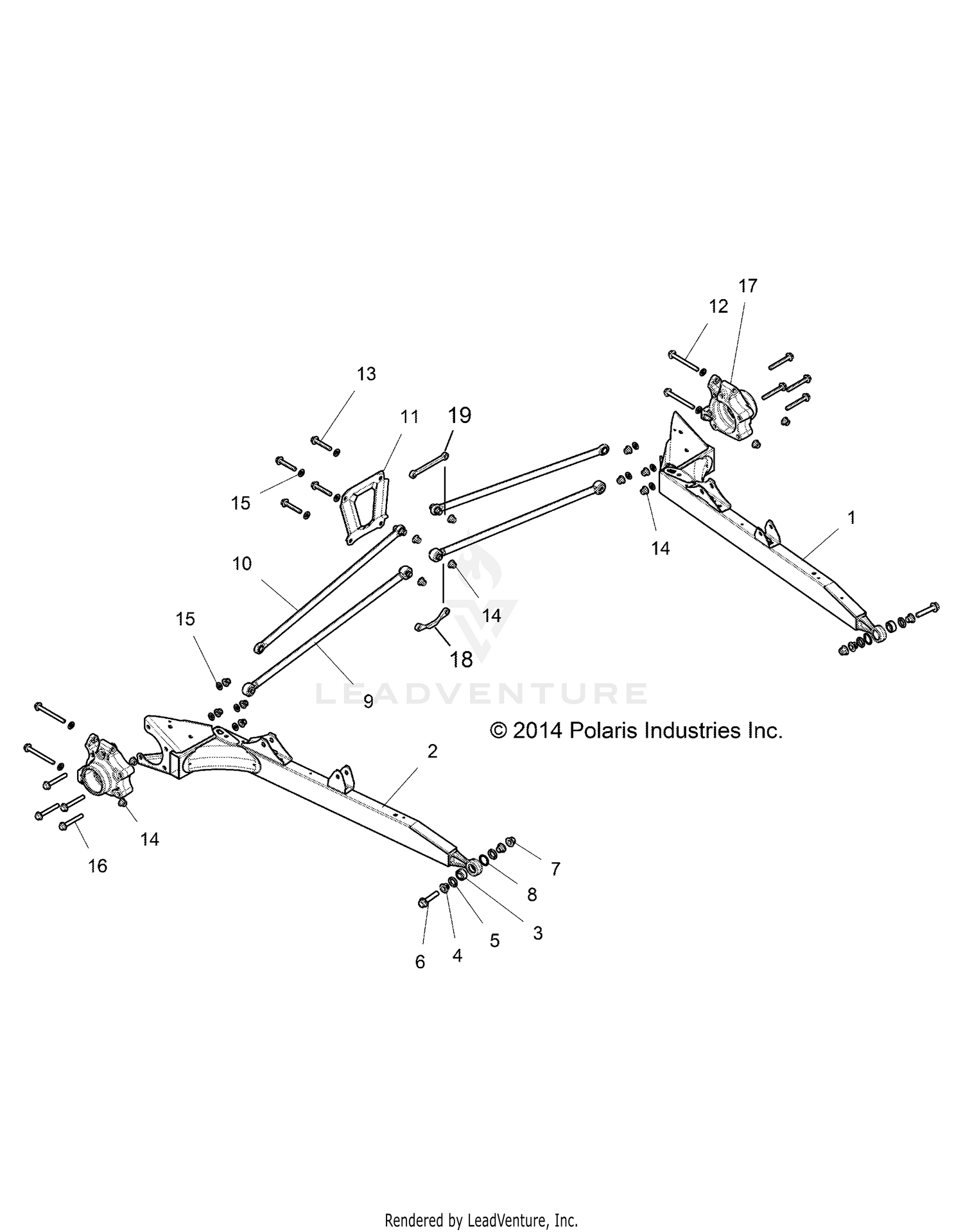

Suspension, Rear Control Arms - Z16vfe99af/as/am/m99am (49rgrsusprr151000) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-TRL ARM,LH,I.RED
1019356-293
|
$504.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
ARM, TRAILING, LH, CLOUD SILVER
1019356-385
|
$504.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
WELD-TRL ARM,LH,LIME SQ
1019356-630
|
$504.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WELD-TRL ARM,RH,I.RED
1019357-293
|
$504.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARM, TRAILING, RH, CLOUD SILVER
1019357-385
|
$504.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WELD-TRL ARM,RH,LIME SQ
1019357-630
|
$504.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, SPHERICAL
3514689
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSHING, REDUCER
5336751
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
5414198
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
7519138
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, FLANGE, NYLOK
7547334
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, RETAINER
7710437
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ASM., RADIUS ROD, BOTTOM, CLOUD SILVER
1543204-385
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ASM-RADIUS ROD,BTM,LIME SQ
1543204-630
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ASM-RADIUS,LOWER,INDY RED
1543455-293
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ASM-RADIUS ROD,I RED
1543377-293
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ASM., RADIUS ROD, CLOUD SILVER
1543377-385
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ASM-RADIUS ROD,LIME SQ
1543377-630
|
$205.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE-REAR,BOLT BRACE,I.RED
5259640-293
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, REAR, BOLT BRACE, CLOUD SILVER
5259640-385
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE-REAR,BOLT BRACE,LIME SQ
5259640-630
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
7519284
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
7519286
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
7519306
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
7556153
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
7519286
|
$8.99 | ||
|
Unavailable |
|||
|
#17
CARRIER, BEARING, WHEEL, LH
5138415
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CARRIER, BEARING, WHEEL, RH
5138416
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRKT-SPACER PLATE,LOWER,I.RED
5260083-293
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRKT-SPACER PLATE,UPPER,I.RED
5260082-293
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
