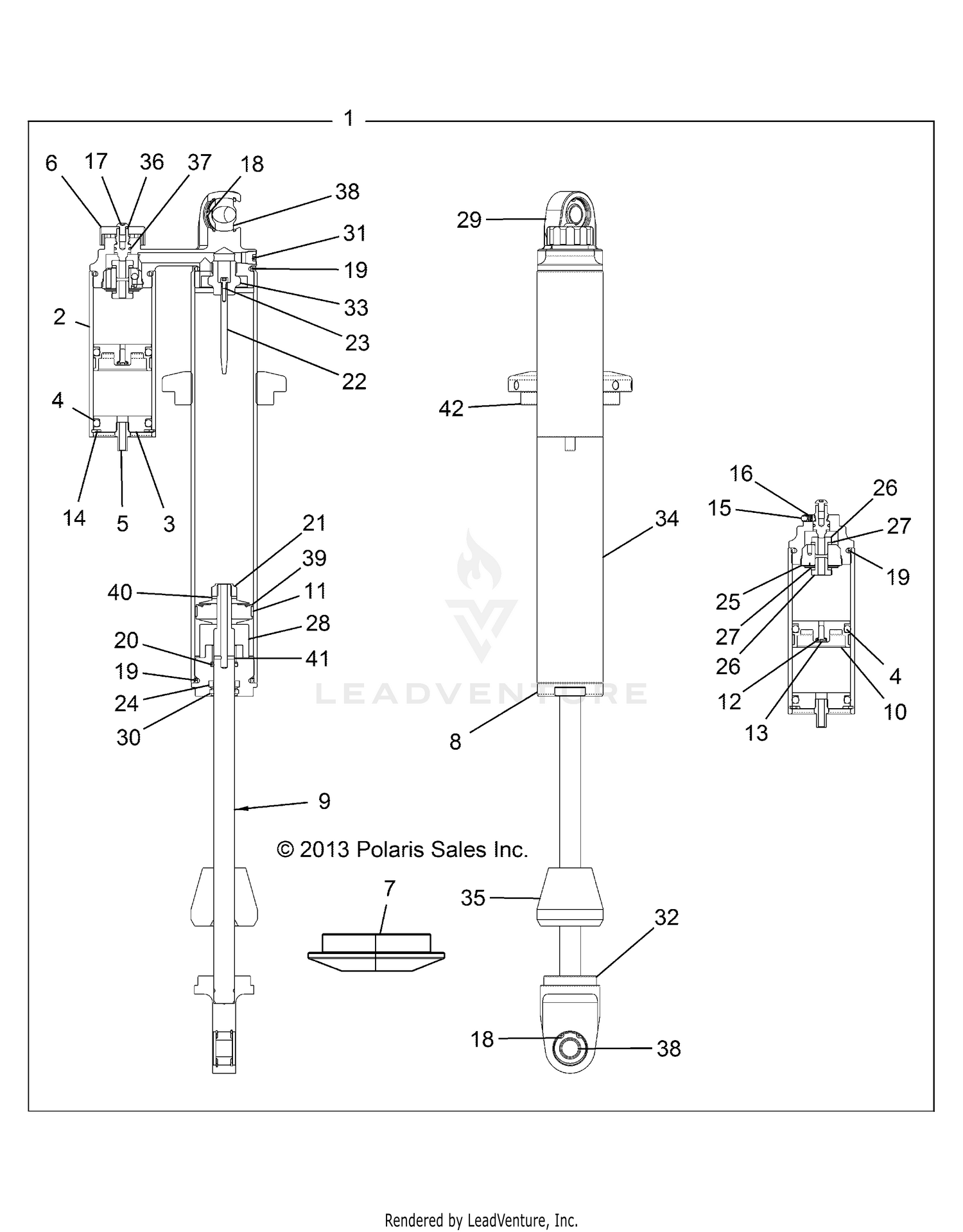

Suspension, Front Shock - Z16vfe99af/as/am (49rgrshockfrt7044116) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK, FRONT, LH, DRIVER
7044116
|
$899.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
SHOCK, FRONT, RH, PASSENGER
7044117
|
$899.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BODY, RESERVOIR
1800575
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
END CAP, RESERVOIR
1800574
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
1800184
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE
1800021
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
KNOB, CLICKER, BLACK
1800418
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER, SPRING
1500867
Superseded by 1501007
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEALHEAD
1800596
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT
1800597
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON, RESERVOIR
1800355
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, PISTON
1800185
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING, BLEED SCREW
1800210
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, BLEED
1800043
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, SNAP
1800159
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BALL, DETENT
1800127
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING-D-TENT
1800128
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
1800357
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RING, SNAP
1800041
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING BODY LOOP
1800030
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING, SHAFT SEAL HEAD, BROWN
1800655
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, CRIMP
1800164
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NEEDLE
1800300
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Screw
1800074
Superseded by 1800299
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL, U-CUP, BLACK
1800656
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PISTON
1800217
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW
1800219
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
1800050
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPACER
1800598
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIGGYBACK, RH
1800594
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIGGYBACK, LH
1800595
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WIPER, D-TYPE
1800034
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLUG, PIPE
1800599
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
LOOP
1800600
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, NEEDLE
1800601
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BODY
1800602
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
STOP, BUMP
1800603
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
STUD, CLICKER
1800352
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING
1800215
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, SPHERICAL
1800616
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
PISTON
1800604
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER
1800187
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BUSHING, SHAFT
1800038
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, SPRING
1800514
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
