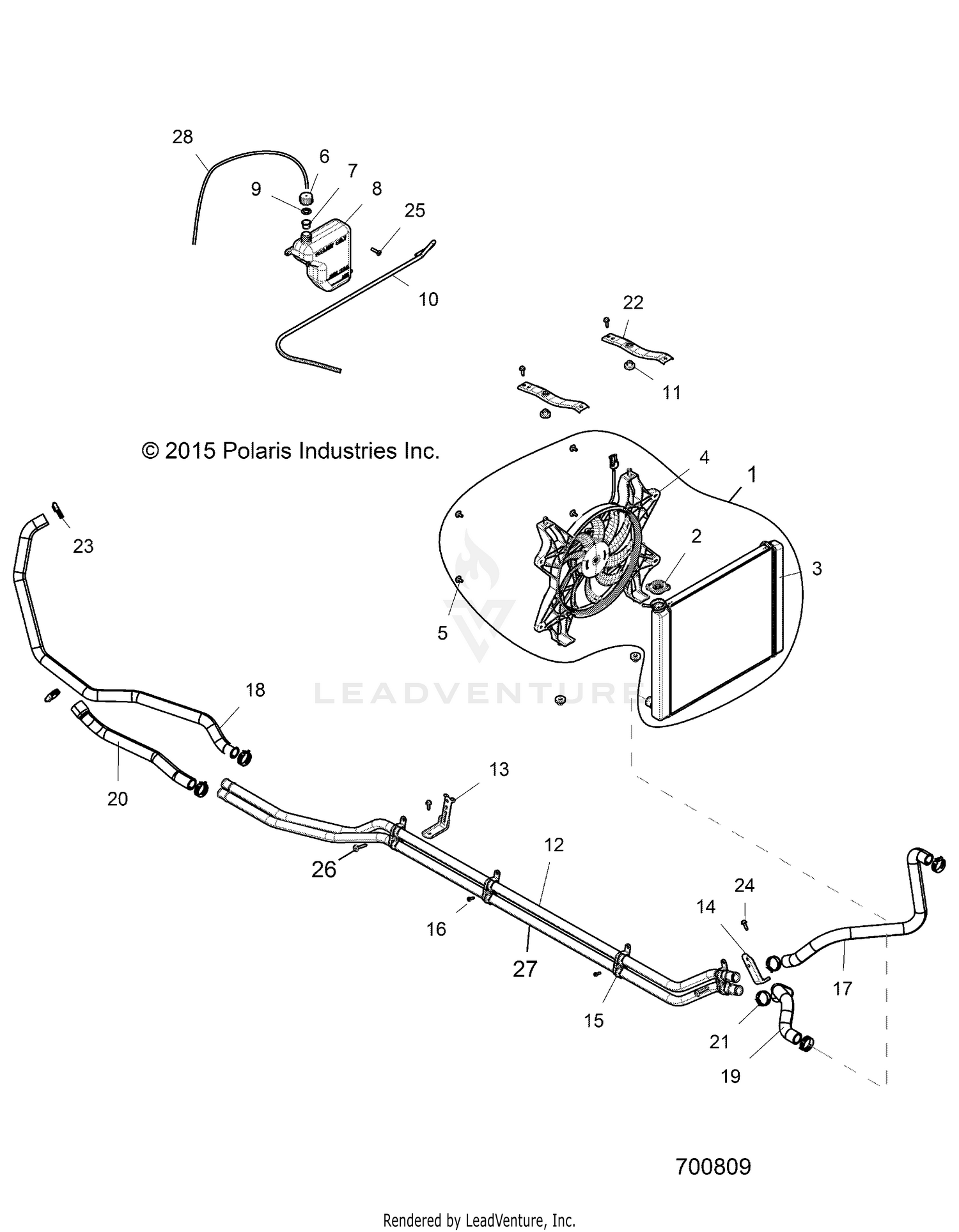

Engine, Cooling System - Z16vfe99af/as/am/m99am (700808) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM., RADIATOR
1240712
|
$699.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP
1240694
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM., RADIATOR, CORE
1240745
|
$564.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FAN, ASM.
2412447
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
7519585
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP-OVERFLOW BOTTLE,W/FITTING
5437635
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
TANK-SURGE
5439202
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
LINE, FUEL
8450003-1525
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET, FLANGED
7052028
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE, COOLANT
5139910
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, COOLANT TUBE, BLACK
5259433-329
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, COOLANT TUBE, BLACK
5260766-329
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET-COOLANT TUBE
5451221
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
7512026
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, UPPER, RADIATOR
5414528
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, ENGINE OUTLET, REAR
5414530
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE, LOWER, RADIATOR, LONG
5414532
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE, ENGINE INLET, REAR
5414976
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP, SPRINGBAND
7080844
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, UPPER RADIATOR MOUNT, BLACK
5256879-329
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP-HOSE(WORM DR)25-40MM
7081192
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCR-M6X1X40,TR/TX-BLK
7519001
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
TUBE, COOLANT
5139911
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Line, Fuel
8360009-100
Superseded by 8360009-600
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
