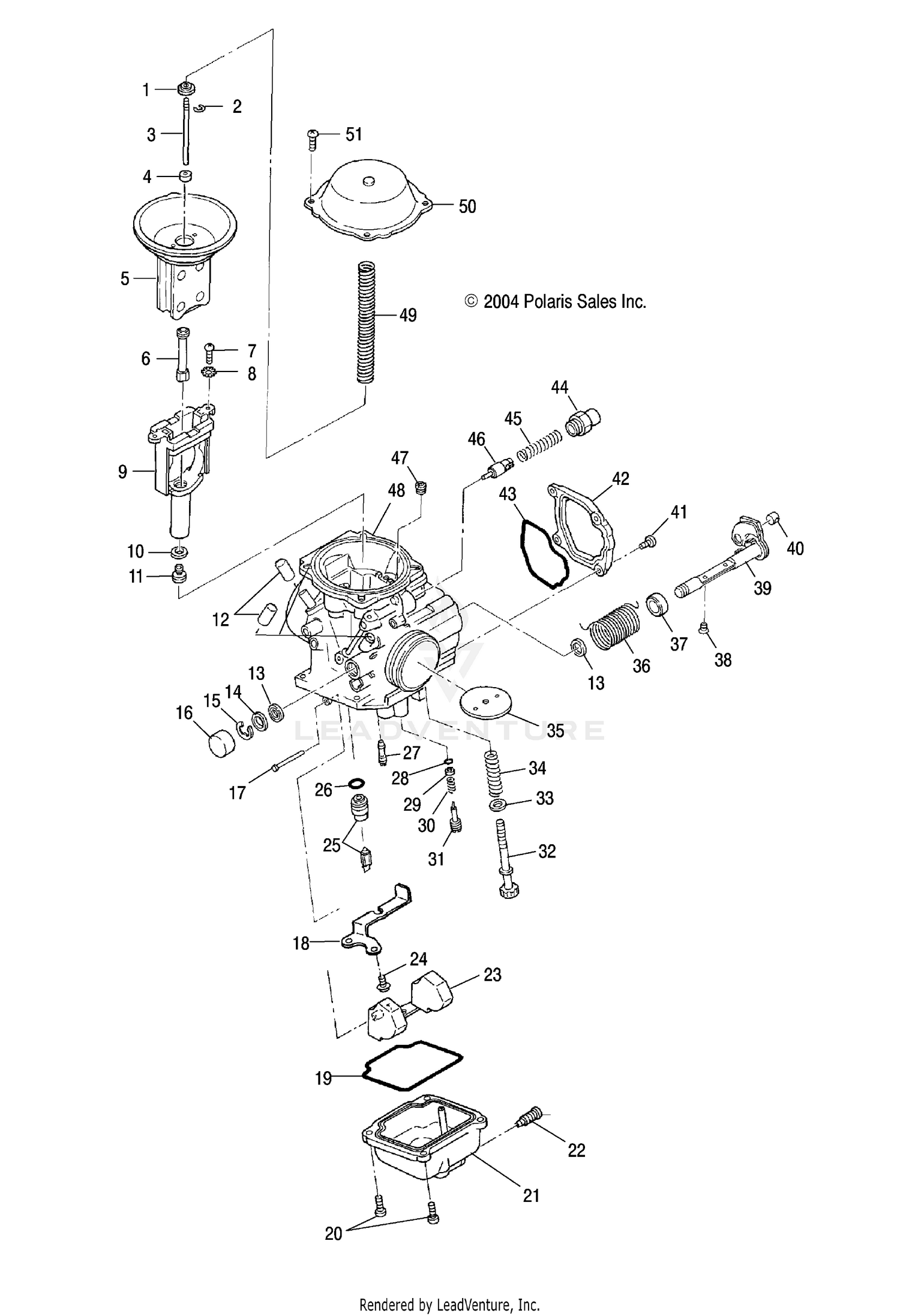

Carburetor - A03ch59aa/af/ag (4994229422d11) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Ring
3130507
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
E-Ring
3130508
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Needle, Jet
3131449
|
|||
|
Unavailable |
|||
|
#4
Ring
3130752
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Asm., Diaphragm
3130732
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Jet, Needle, P-4
3131450
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Screw
3130541
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Washer, Spring
3130540
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Asm., Jet Block
-------
|
|||
|
Unavailable |
|||
|
#10
Washer
3130014
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
MAIN JET,#152.5
3130571
Superseded by 3130570
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Cap
3134505
|
|||
|
Unavailable |
|||
|
#13
Seal
3130515
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Packing
-------
|
|||
|
Unavailable |
|||
|
#15
E-Ring
-------
|
|||
|
Unavailable |
|||
|
#16
Cap
3130519
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Pin, Float
3130361
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Plate
3130594
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-Ring
3130532
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Screw
3130520
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Asm., Float Body
3130590
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Screw
3130521
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Asm., Float
3130529
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Screw
3130591
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Valve, Needle, 1.5
3131360
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-Ring
3130533
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Jet, Pilot, 45
3131397
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-Ring
3130522
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Washer
3130523
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Spring
3130525
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Adjuster
3130524
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Screw, Adjust
3130546
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Ring
3130545
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Spring
3130544
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Valve, Throttle, 100
-------
|
|||
|
Unavailable |
|||
|
#36
Spring
3131398
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Ring
3130514
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Screw
-------
|
|||
|
Unavailable |
|||
|
#39
ASM., THROTTLE SHAFT
-------
|
|||
|
Unavailable |
|||
|
#40
Guide, Cable
3130543
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Screw
3130535
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
Cover
3130511
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
O-Ring
3130512
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
Holder, Guide
3131396
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
Spring
3130538
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
Asm., Plunger
3131395
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
Jet, Air, #160
3130625
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
Asm., Carburetor
1253436
|
$569.99 | ||
|
Unavailable |
|||
|
#49
Spring, Compression
3131451
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
Asm., Cover
3130503
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
SCREW
3130592
Superseded by 3130924
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
