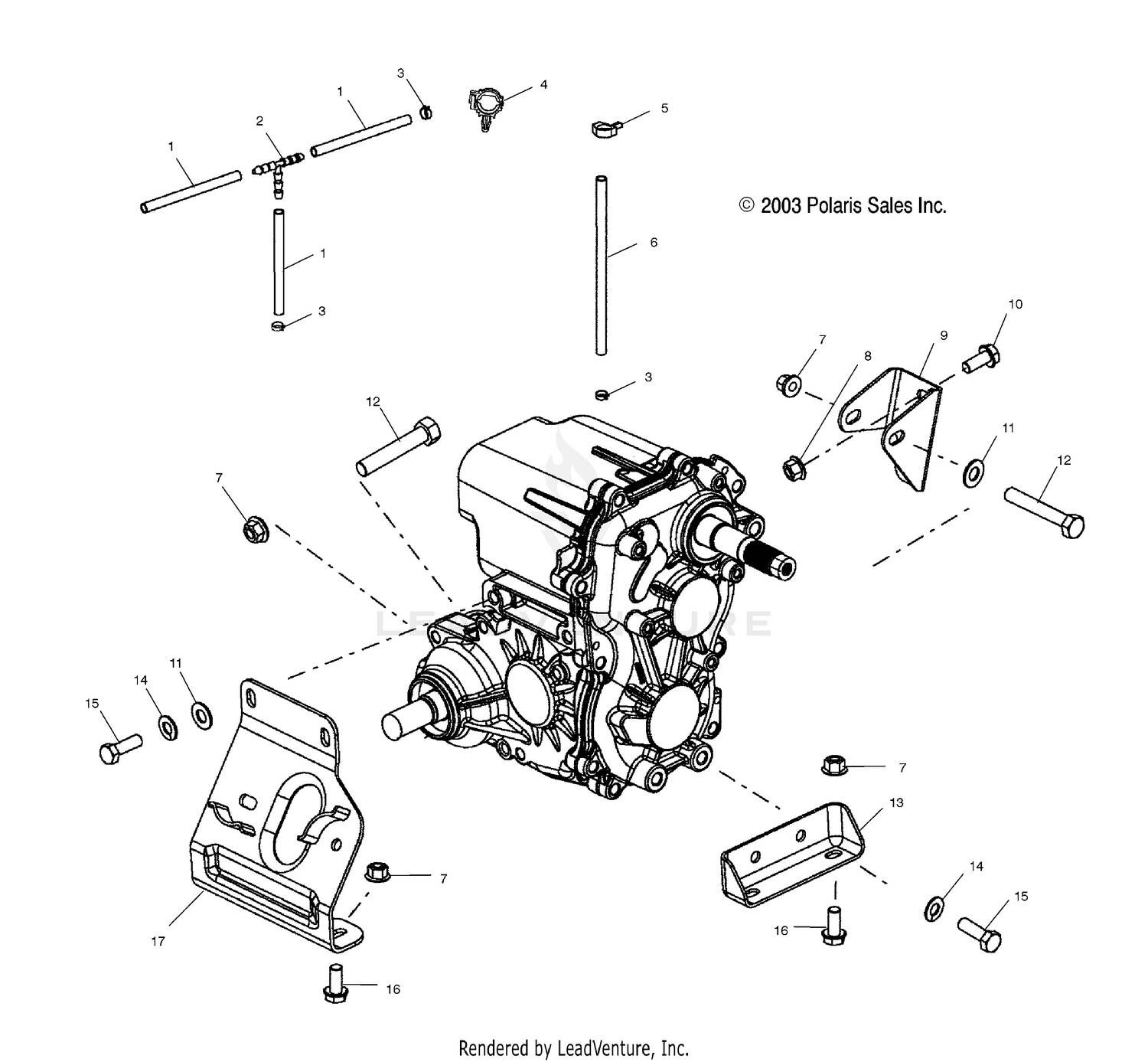

Transmission Mounting - A03ch59aa/af/ag (4975557555c12) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Line, Fuel
8450003-1525
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
T-Fitting
7052075
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP-HOSE, (LARGE GREEN)
7080307
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Clip
7080756
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Clip
7670102
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Line, Fuel
8450003-1525
|
$84.99 | ||
|
Unavailable |
|||
|
#7
Nut, Flange, Lock
7547108
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Nut, Flange
7542321
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Mount, Rear Transmission
5244599-067
|
$11.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw
7515398
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Washer, Flat
7555976
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screw
7515417
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Mount, Transmission
5245524-067
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#14
Washer, Spring Lock
7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Bolt
7515522
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Screw
7517289
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Mount, Rear Engine
1013134-067
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#
ASM., MAIN GEARCASE
-------
|
|||
|
Unavailable |
|||
