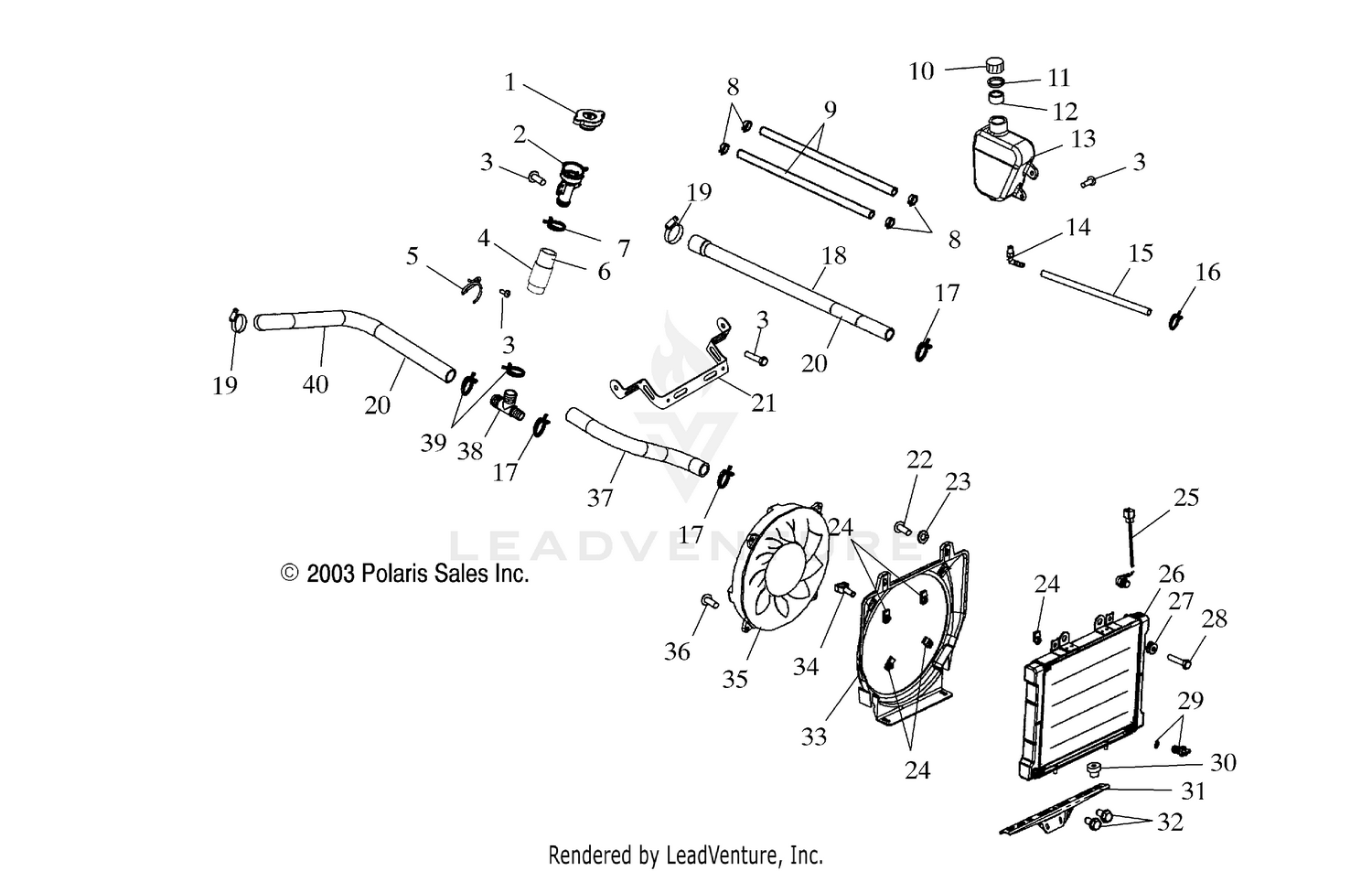

Cooling System - A03ch59aa/af/ag (4975557555a10) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP, PRESSURE
1240044
Superseded by 1240508
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Filler, Coolant
5434325
|
$15.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
Screw
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Guard, Hose
5521644
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Retainer, Hose
7042089
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hose
5412311
Superseded by 5413671
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, SPRINGBAND, BROWN
7080827
Superseded by 7080843
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUEL LINE,1/4 ID(600 CM.)
8450040-150
Superseded by 8450040-600
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
TANK-SURGE
5431673
Superseded by 5436936
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Fitting, Barbed, 90 Degree
7052065
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Line, Fuel
8450003-1525
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP-HOSE, (LARGE GREEN)
7080307
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Clamp
7080826
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Hose, Engine, Upper
5412030
|
|||
|
Unavailable |
|||
|
#19
Clamp, Springband
7080844
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Hose, Guard
5521597
|
|||
|
Unavailable |
|||
|
#21
Bracket, Radiator Mount, Upper
5246656
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Screw
7518014
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
Washer
7556196
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
U-Clip
7547197
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#25
Sensor, Thermal
4010161
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Radiator
1240103
|
|||
|
Unavailable |
|||
|
#27
Grommet
5411975
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Screw
7515179
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Valve, Drain
7052296
|
|||
|
Unavailable |
|||
|
#30
BUSHING-MOUNT,LOWER RADIATOR
5410584
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Bracket, Radiator, Lower
5245773-067
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
Shroud, Fan
5434171
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Clip, Wiring
4010631
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Asm., Fan and Motor
2410288
|
|||
|
Unavailable |
|||
|
#36
Screw
7517975
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Hose, Radiator, Lower
5412312
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Connector, Tee
7052282
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Clamp
7081047
|
|||
|
Unavailable |
|||
|
#40
Hose, Engine, Lower
5412313
Superseded by 5413674
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
