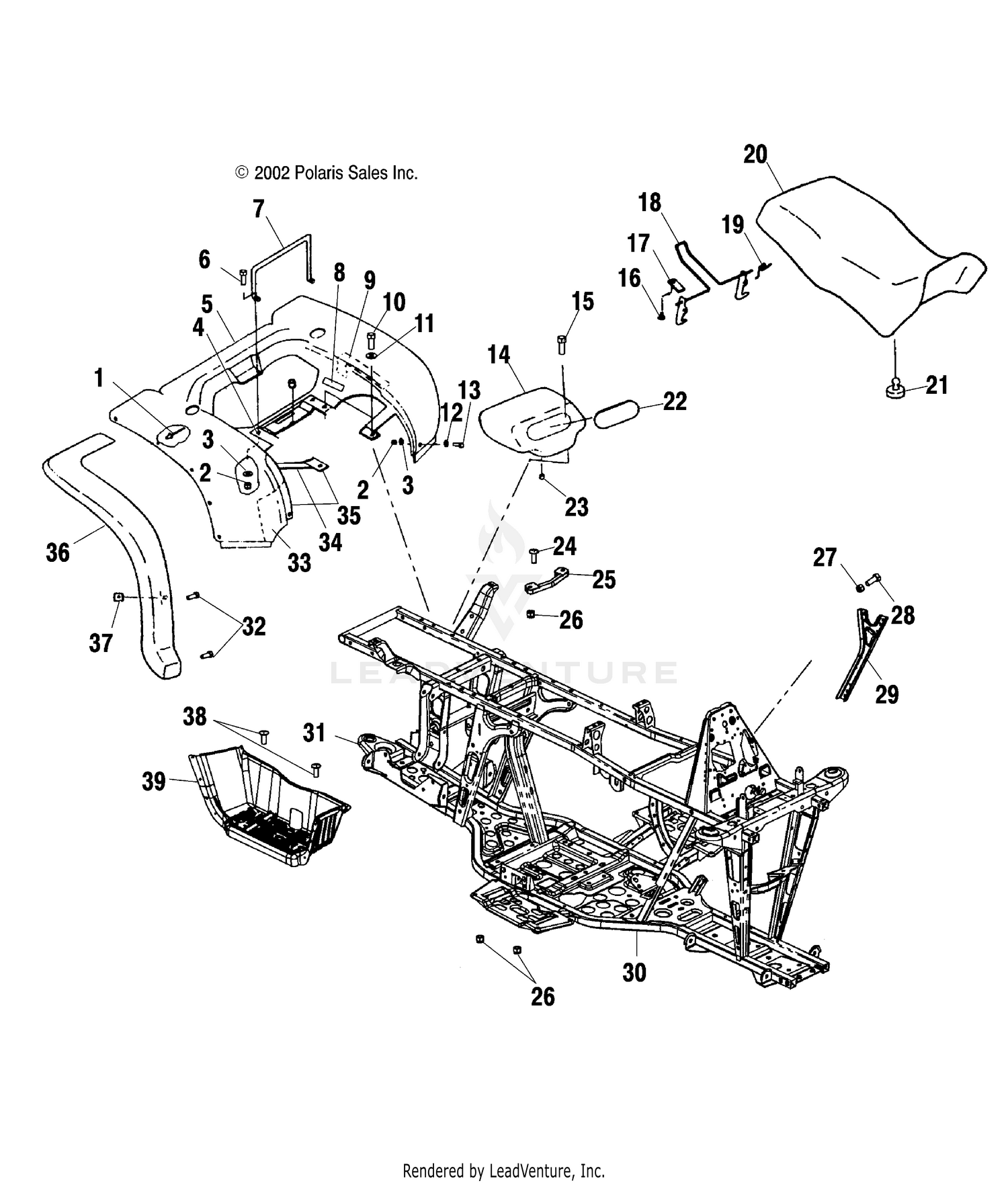

Rear Cab, Seat And Main Frame - A03ch59aa/af/ag (4977187718a03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Rivet, T-Lock
7661645
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Nut, Nylok
7541925
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Washer
7555792
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Foil, Rear Cab, Rear
5811107
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Cab, Rear
5432117-400
|
$354.99 | ||
|
Unavailable |
|||
|
#5
Cab, Rear, Indy Red
5432117-177
Superseded by 5432117-293
|
$354.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Cab, Rear, Indy Red
5432117-341
Superseded by 5432117-293
|
$354.99 | ||
|
Unavailable |
|||
|
#6
Bolt
7511930
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Retainer, Seat Latch
5246076
|
|||
|
Unavailable |
|||
|
#8
Decal, 4 Stroke, Carb/Filter Information
7079902
|
|||
|
Unavailable |
|||
|
#9
Foil, Tape, Rear Cab
5811308
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw
7512242
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Washer, Flat
7555859
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Washer
7556034
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, MACH, PAN HEAD PHIL
7512085
Superseded by 7519641
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
Box, Tool
5431786
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCR-1/4-20X.88,HXWR TAPR,GR5,Y
7517375
Superseded by 7517312
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Rivet
7621403
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bracket, Lever Retainer
5211033
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Latch, Seat
1040387
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Spring, Latch
7041370
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Asm., Seat
2682957-070
Superseded by 2683197-070
|
$524.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Asm., Seat Cover w/White Decal
2682958-070
Superseded by 2684055
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUMPER-RUBBER
5412067
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Cover, Tool Box
5431787
|
$17.49 | ||
|
Unavailable |
|||
|
#23
Cap, Drain
5410896
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Screw
7517377
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Spacer
5432280
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Nut, Nylok
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
Nut, Nylok, Flanged
7542153
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Screw
7512283
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Brace, Frame
5244751-067
|
|||
|
Unavailable |
|||
|
#30
Frame, Main
1014006-067
|
|||
|
Unavailable |
|||
|
#31
DECAL, HITCH, 1500 LBS.
7170509
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Screw
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
Foil, Rear Fender
5811111
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Foil
5811087
|
|||
|
Unavailable |
|||
|
#35
Foil, Rear Cab, Front
5811106
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Guard, Mud, Rear, LH
5431796-070
|
$66.99 | ||
|
Unavailable |
|||
|
#36
Guard, Mud, Rear, RH
5431797-070
|
$66.99 | ||
|
Unavailable |
|||
|
#37
Nut, U-Type Speed
7670057
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
Screw
7517377
|
$5.99 | ||
|
Unavailable |
|||
|
#38
SCREW(10)
7517376
Superseded by 7512279
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Footwell, Black, LH
5432221-070
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Footwell, Black, RH
5433929-070
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
