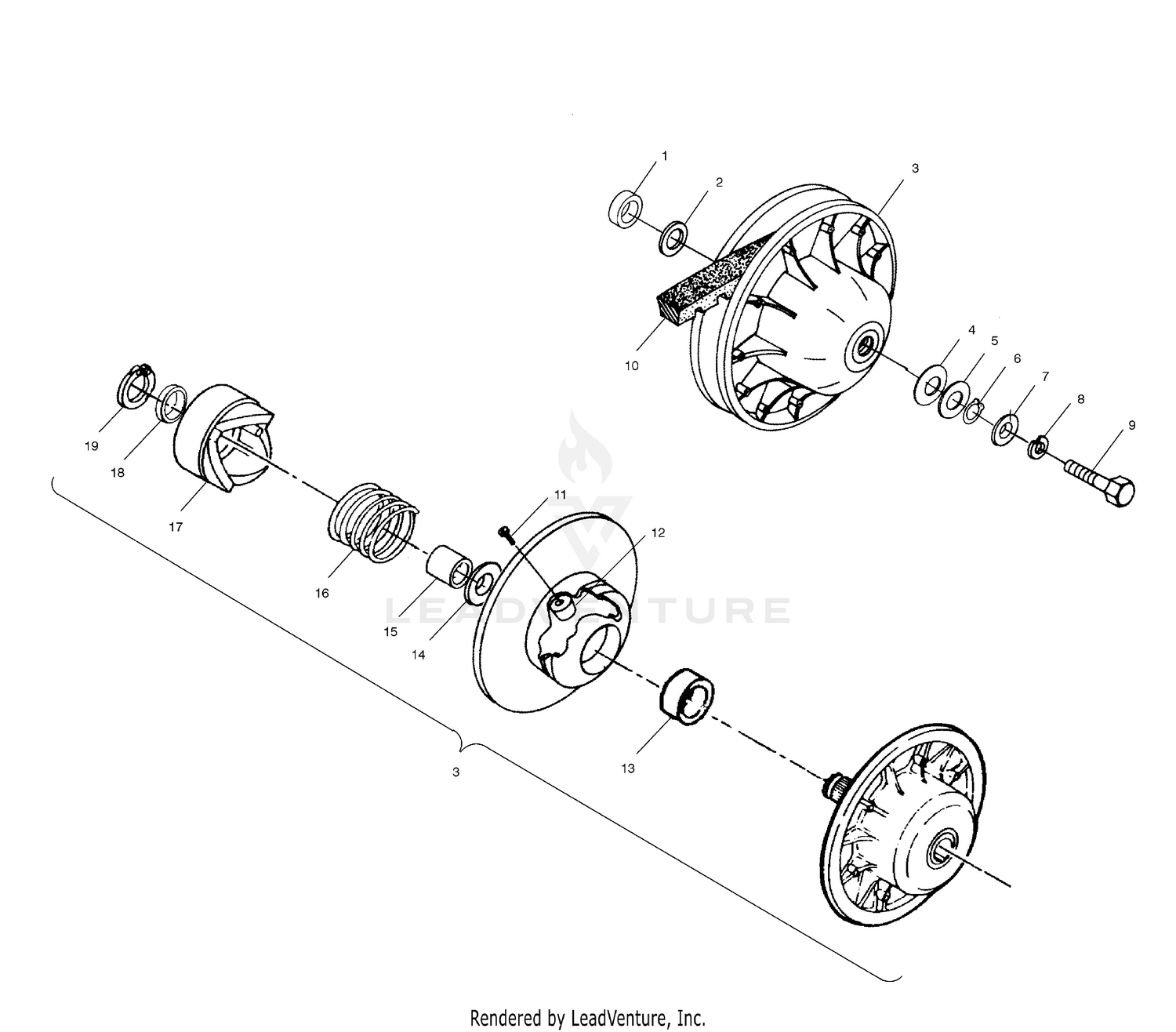

Driven Clutch - A03ch59aa/af/ag (4977187718c02) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Spacer, Driven
5010409
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Bushing
7556120
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Asm., Driven Clutch, EBS
1321973
|
$489.99 | ||
|
Unavailable |
|||
|
#4
Washer
7556203
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Bushing
7556010
|
$4.99 | ||
|
Unavailable |
|||
|
#6
Ring, Retaining
7710461
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Washer, Domed
5220646
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Washer, Spring Lock
7552901
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bolt
7515382
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Belt, Drive
3211091
|
$99.99 | ||
|
Unavailable |
|||
|
#11
Screw
7517323
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Roller, Taper
1321977
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Bearing
3585710
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-2.06X2.62X.105-Y
5211115
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Bearing, Moveable, 1 Inch
3576511
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Spring
7041636
|
$36.19 | ||
|
Available to order. Add to View Price |
|||
|
#17
Ramp, Stationary
5132751
|
|||
|
Unavailable |
|||
|
#18
Spacer
5210753
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Ring, Retaining
7710448
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
