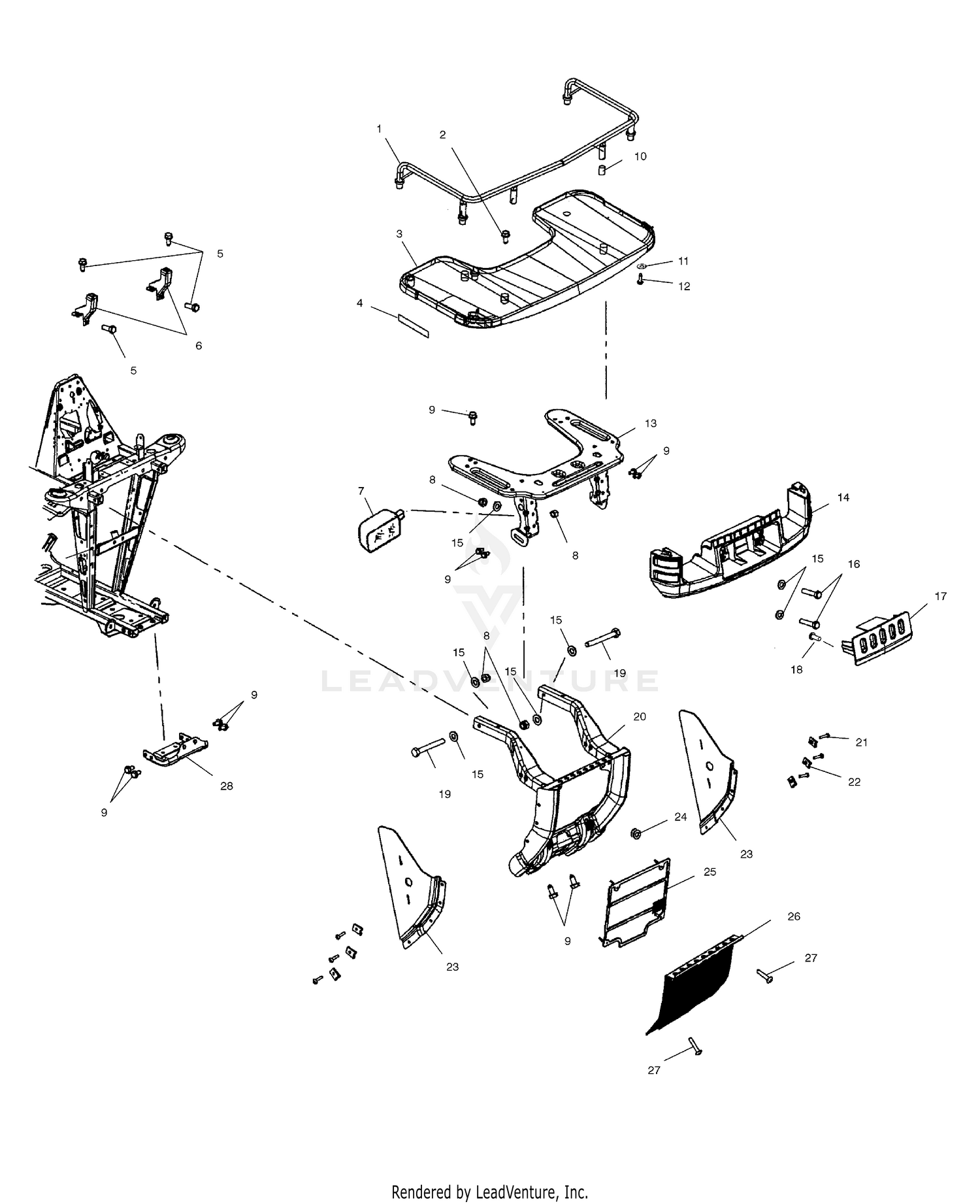

Front Rack And Bumper Mounting - A03ch59aa/af/ag (4977187718a07) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Extender, Front Rack, Silver
1040526-385
|
|||
|
Unavailable |
|||
|
#2
Screw
7517685
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Asm., Front Rack
2632666-070
|
$288.99 | ||
|
Unavailable |
|||
|
#4
Decal, Reflector, Amber
7079926
|
$6.19 | ||
|
Unavailable |
|||
|
#5
Screw
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Support, Front Rack, LH
1013744-067
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Support, Front Rack, RH
1013746-067
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Headlight, LH
2431014
|
$92.99 | ||
|
Unavailable |
|||
|
#7
Headlight, RH
2431015
|
$92.99 | ||
|
Unavailable |
|||
|
#7
Bulb, Replacement, 27W
4030059
|
|||
|
Unavailable |
|||
|
#8
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Screw
7515399
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Insert
5432387
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Washer, Flat
7556175
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screw
7517208
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Support, Front Rack
1014020-067
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Bumper
5434001-070
|
|||
|
Unavailable |
|||
|
#15
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW(10)
7515306
Superseded by 7515352
|
$2.49 | ||
|
Unavailable |
|||
|
#17
Panel
5434002-070
|
|||
|
Unavailable |
|||
|
#18
Screw
7512093
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
Screw
7512329
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Guard, Brush
1013667-067
|
$374.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Screw
7512097
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Nut, U-Type
7670094
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Shield, Side, Radiator, LH
5434314
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Shield, Side, Radiator, RH
5434315
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GROMMET, RUBBER MOUNT
5410774
Superseded by 5412504
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Cover, Radiator
5434313
Superseded by 5435046
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Grill, Brush Guard, Black
5244808-067
Superseded by 5247507-067
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Screw
7518046
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Bracket, Bumper, Lower
5245767-067
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
