2003 Polaris SPORTSMAN 600 TWIN 4X4 Fuel Tank - A03ch59aa/af/ag (4977187718a12) OEM Parts

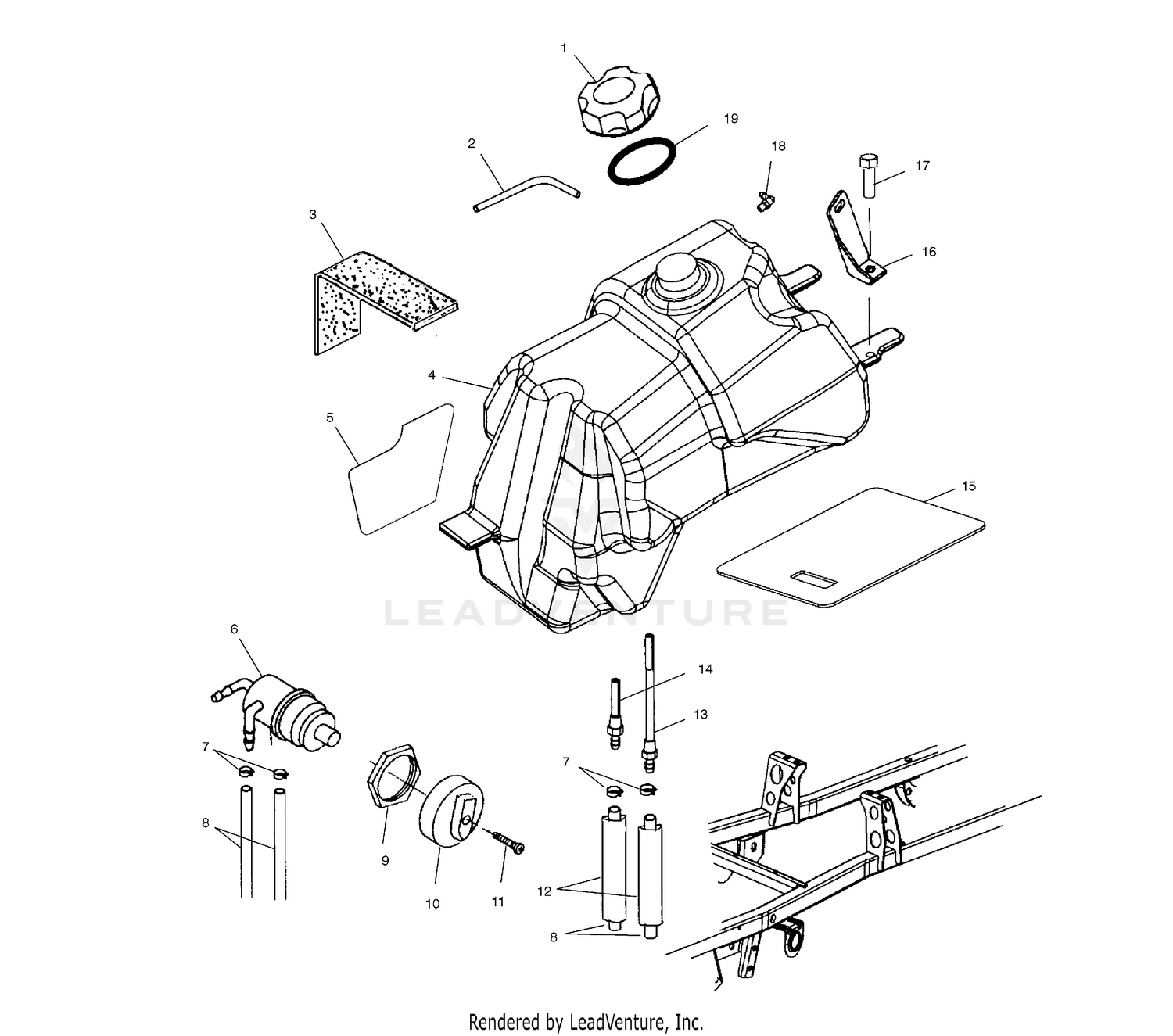

Fuel Tank - A03ch59aa/af/ag (4977187718a12) Diagram

Item	MSRP	Qty
#1 CAP, GAS TANK 5433687 Superseded by 5450389	$24.99
Available to order. Add to View Price
#2 Line, Fuel 8360009-600	$49.99
Available to order. Add to View Price
#3 Seal, Foam 5812265	$34.99
Available to order. Add to View Price
#4 Asm., Fuel Tank 2520203
Unavailable
#5 Foil, Fuel Tank 5182004
Unavailable
#6 Valve, 3-Way 7052161	$49.99
Available to order. Add to View Price
#7 HOSE CLAMP, RED 7080003	$1.49
Available to order. Add to View Price
#8 Hose, Fuel 8450103-600
Unavailable
#9 Nut, Fuel Valve 5432733	$5.99
Available to order. Add to View Price
#10 Knob, Fuel Valve 5432559	$12.99
Available to order. Add to View Price
#11 Screw 7517505	$1.99
Available to order. Add to View Price
#12 Sheath, Reflect Sleeve 8450080-65 Superseded by 8450105-65	$79.99
Available to order. Add to View Price
#13 Fitting, Fuel Outlet, Main 7052150	$34.99
Available to order. Add to View Price
#14 Fitting, Fuel Outlet, Reserve 7052149	$29.99
Available to order. Add to View Price
#15 Foil 5812005 Superseded by 5813045	$24.99
Available to order. Add to View Price
#16 Bracket, Fuel Cover Mount, LH 5246069-067 Superseded by 5247184	$29.99
Unavailable
#16 Bracket, Fuel Cover Mount, RH 5246070-067 Superseded by 5247185	$49.99
Available to order. Add to View Price
#17 Screw 7517685	$1.99
Available to order. Add to View Price
#18 Vent, Tank 5431053	$24.99
Available to order. Add to View Price
#19 Gasket 5812123	$6.99
Available to order. Add to View Price
