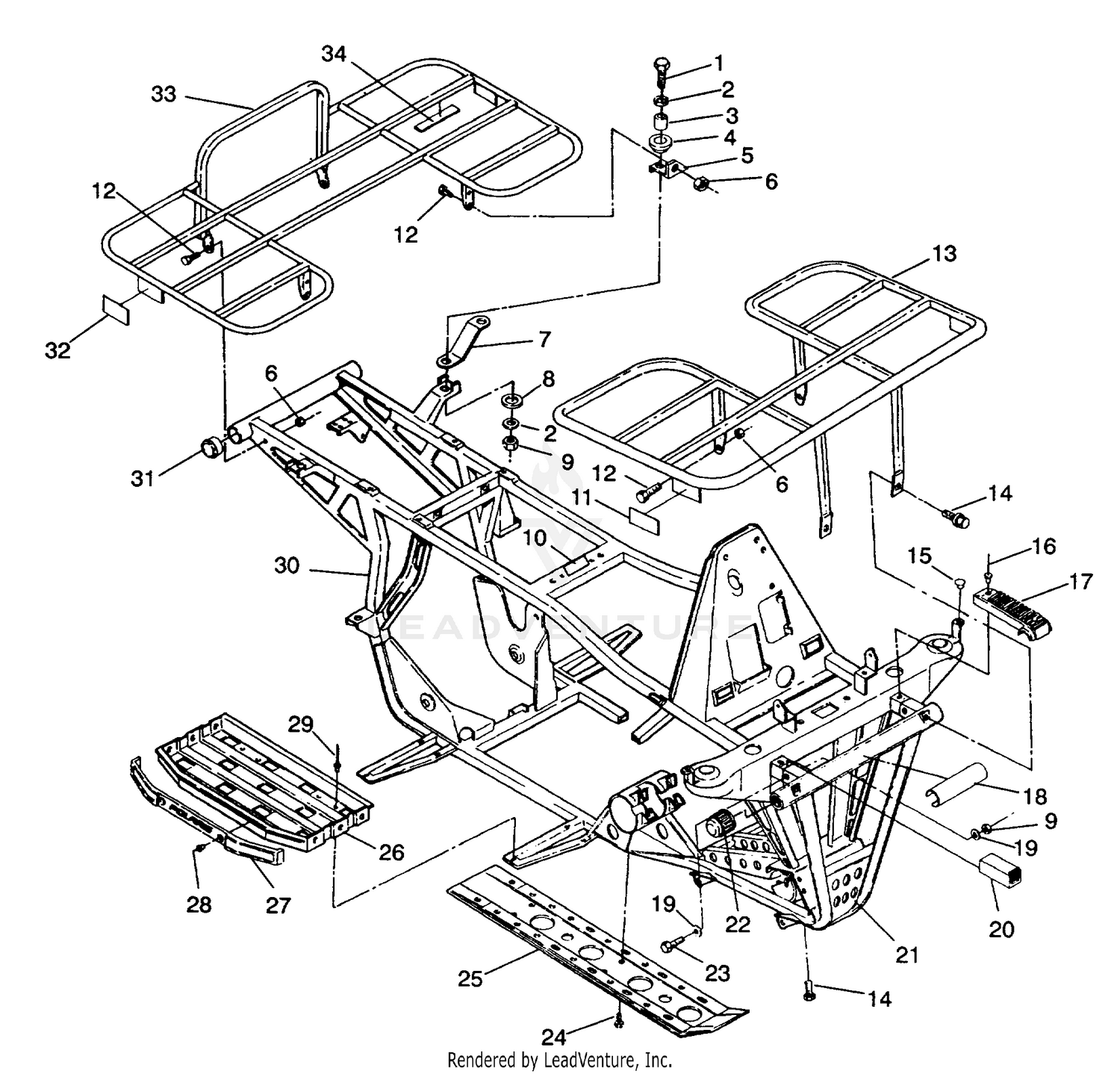

Bumper/rack Mounting 4x4 250 W98127 (4924042404003a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW-FLANGED(10)
7515304
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER(10)
7555716
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSHING-RES. MT.
5010192
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Dampener, Vibration
5410241
Superseded by 5412508
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRKT,LH SUPPORT RACK Substituted by 5243468-067
5220899-067
|
|||
|
Unavailable |
|||
|
#5
BRKT,RH SUPPORT RACK Substituted by 5243469-067
5220901-067
|
|||
|
Unavailable |
|||
|
#6
NUT, NYLOK(10)
7542327
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUPPORT,R.FENDER
5220902-067
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,RUBBER
5410436
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DECAL,FILTER ELEMENT [No Longer Available]
7072791
|
|||
|
Unavailable |
|||
|
#11
REFLECTOR ASM,AMBER
2670134
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW(10)
7515355
|
|||
|
Unavailable |
|||
|
#13
RACK,FRT.BLK.
2670135-067
|
|||
|
Unavailable |
|||
|
#14
SCREW(10)
7512252
|
|||
|
Unavailable |
|||
|
#15
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RIVET(50)
7621229
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER,BRKT,BUMPER MT.
5431023
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#18
DECAL, F.SUSP.
7073455
|
|||
|
Unavailable |
|||
|
#19
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG, FRAME
5810467
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUMPER,FR,(BLK.)
2670113-067
|
|||
|
Unavailable |
|||
|
#22
CAP,BUMPER,FR,BON.BLUE
5431013-157
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT(10)
7512329
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT(10)
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GUARD, ROCK, BLK.
5222272-067
|
|||
|
Unavailable |
|||
|
#26
FOOTPAD,RH,(ATV) Substituted by 1040275-117
1040275
|
|||
|
Unavailable |
|||
|
#26
FOOTPAD,LH,SILVER
1040274
Superseded by 1040274-117
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
TRIM, FOOTREST
5431484
|
|||
|
Unavailable |
|||
|
#28
RIVET,(50)
7661825
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#29
RIVET,INTERLOCK,B(50)
7661625
Superseded by 7661638
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
FRAME,SQUARE(93-4X4,250) [No Longer Available]
1040304-067
|
|||
|
Unavailable |
|||
|
#31
PLUG,ENDCAP(10)
5410794
Superseded by 5432047
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#32
REFLECTOR ASM,RED
2670133
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#33
RACK,REAR,BLK.
2670136-067
|
|||
|
Unavailable |
|||
|
#34
PAD,RACK MOUNT
5810455
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
