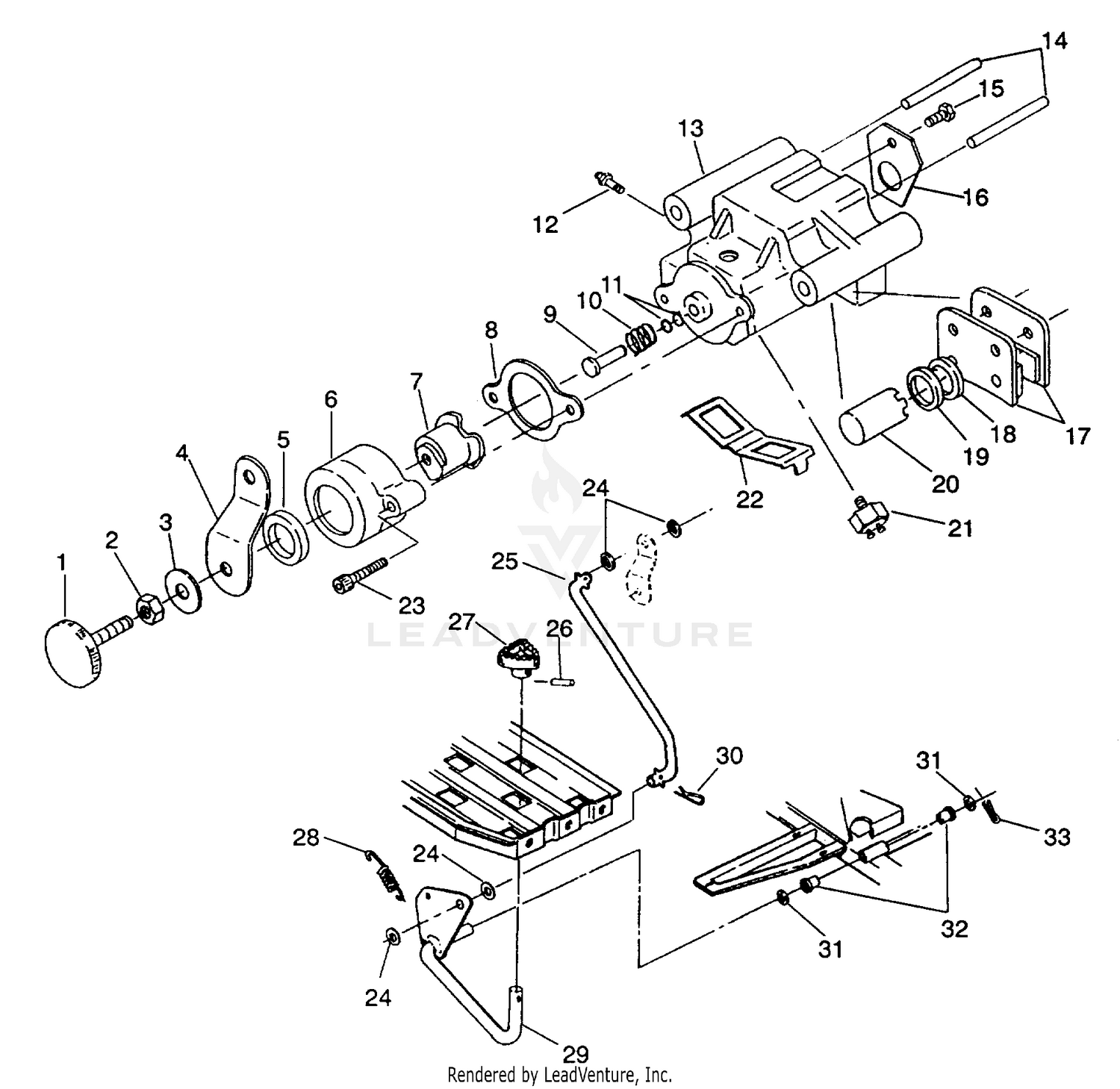

Rear Brake/foot Pedal Assembly 4x4 250 W938127 (4924042404027a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KNOB,BRAKE ADJUSTOR
1930691
|
|||
|
Unavailable |
|||
|
#2
NUT(10)
7542129
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING(10)
7555828
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM,BRAKE,CALIPER
5222664
|
|||
|
Unavailable |
|||
|
#5
SEAL, BRAKE
3610026
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RAMP,STATION.BRAKE Substituted by 2200391
5630395
|
|||
|
Unavailable |
|||
|
#7
RAMP,MOVE.BRAKE Substituted by 2200391
5630394
|
|||
|
Unavailable |
|||
|
#8
GASKET, BRAKE
5830009
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, BRAKE ADJUSTER
5020523
|
|||
|
Unavailable |
|||
|
#10
SPRING,BRAKE,COMP.
7041219
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O RING
5410542
Superseded by 5411432
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW,BLEEDER
7080352
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CALIPER, R.BRAKE
1910073
|
|||
|
Unavailable |
|||
|
#13
CALIPER,REAR BRAKE
5130714
|
|||
|
Unavailable |
|||
|
#14
PIN, DOWEL(10)
7661820
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, SEMS(10)
7512020
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, PIN
5211143
|
|||
|
Unavailable |
|||
|
#17
KIT,BRAKEPAD,REAR
2200464
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RING,SQUARE,(.120)
5410518
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING, SQUARE
5410519
|
|||
|
Unavailable |
|||
|
#20
PISTON, BRAKE
5020521
|
|||
|
Unavailable |
|||
|
#21
SWITCH, STOPLIGHT
4110089
|
|||
|
Unavailable |
|||
|
#22
SPRING,ANTI-RATTLE
5222232
|
|||
|
Unavailable |
|||
|
#23
BOLT, SOC. HD.(10)
7512292
|
|||
|
Unavailable |
|||
|
#24
WASHER(10)
7555827
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
ROD,BRAKE LINK SPRING
5224447
|
|||
|
Unavailable |
|||
|
#26
PIN, SPIRAL(10)
7661416
|
|||
|
Unavailable |
|||
|
#27
PEDAL,FOOT
5130715-067
|
|||
|
Unavailable |
|||
|
#28
SPRING-EXHAUST(10)
7042029
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PEDAL, BRAKE
1910054-067
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, COTTER(10)
7661103
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER THRUST(10)
7558702
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BUSHING-PEDAL PIVOT
5431107
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COTTER PIN(10)
7661401
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
