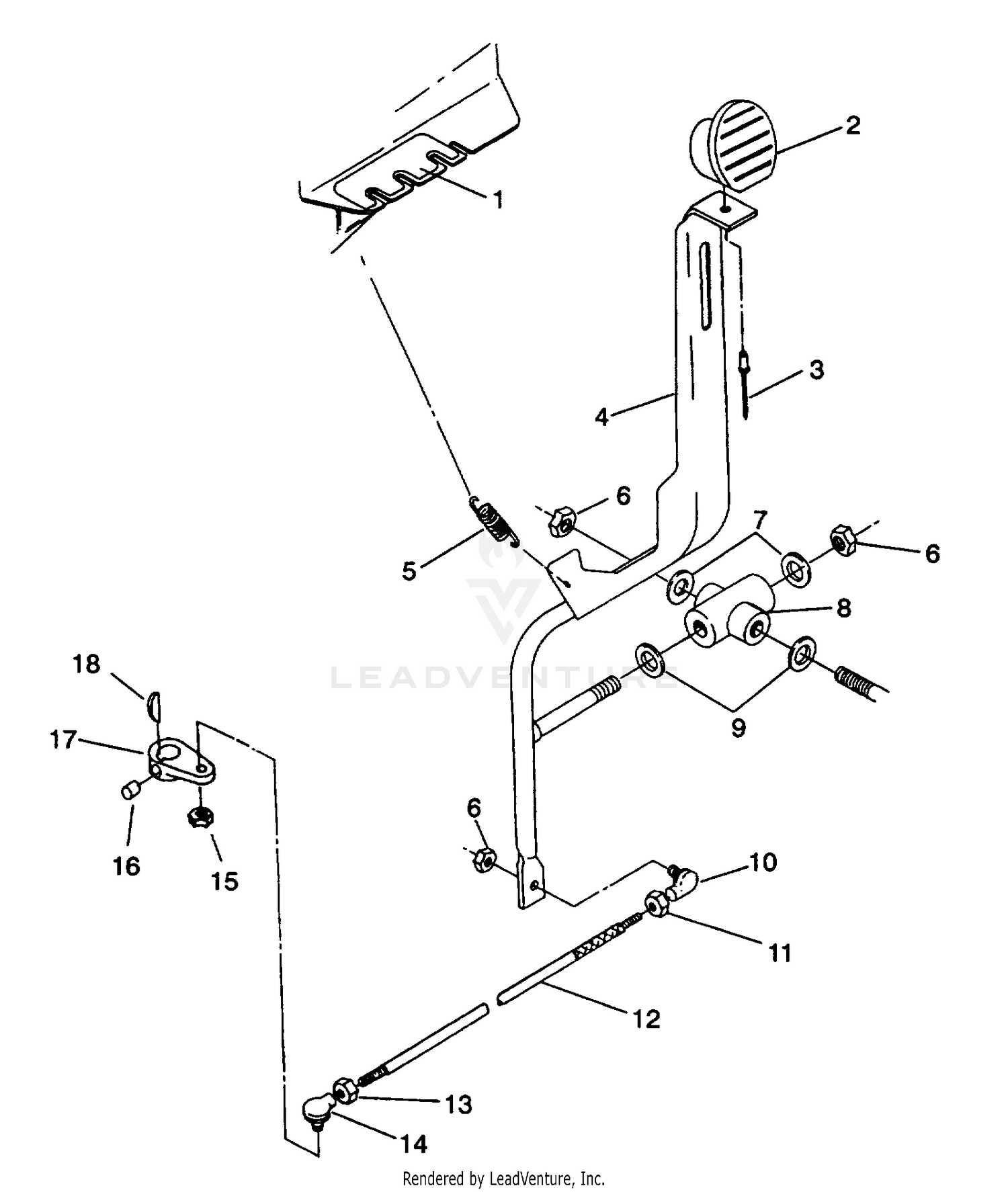

Shift Linkage Assembly 4x4 250 W938127 (4924042404030a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DECAL,SHIFT PATTERN [No Longer Available]
7072905
|
|||
|
Unavailable |
|||
|
#2
KNOB, SHIFT LEVER
5410545
|
$18.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
POP RIVET(50)
7621418
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEVER,SHIFT WELD.
1341071-067
|
|||
|
Unavailable |
|||
|
#5
SPRING,SHIFT LEVER
7041227
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT FLEX-LOC(10)
7542303
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER,WROUGHT(10)
7558302
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BLOCK,SHIFT POINT
5431106
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-.390X.750X.020-WAVE-Y
7555795
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD END,LH,6MM.
7060141
Superseded by 7061013
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT(10)
7546702
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD,SHIFT LINKAGE
5020538
|
|||
|
Unavailable |
|||
|
#13
NUT(10)
7546701
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD END,RH,6MM.
7060142
Superseded by 7061014
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT-6MM X 1 NYLOK-Z
7546703
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, SPIRAL(10)
7661506
|
|||
|
Unavailable |
|||
|
#17
LEVER, SHIFT
5130783
|
|||
|
Unavailable |
|||
|
#18
KEY, HI-PRO
7721113
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
