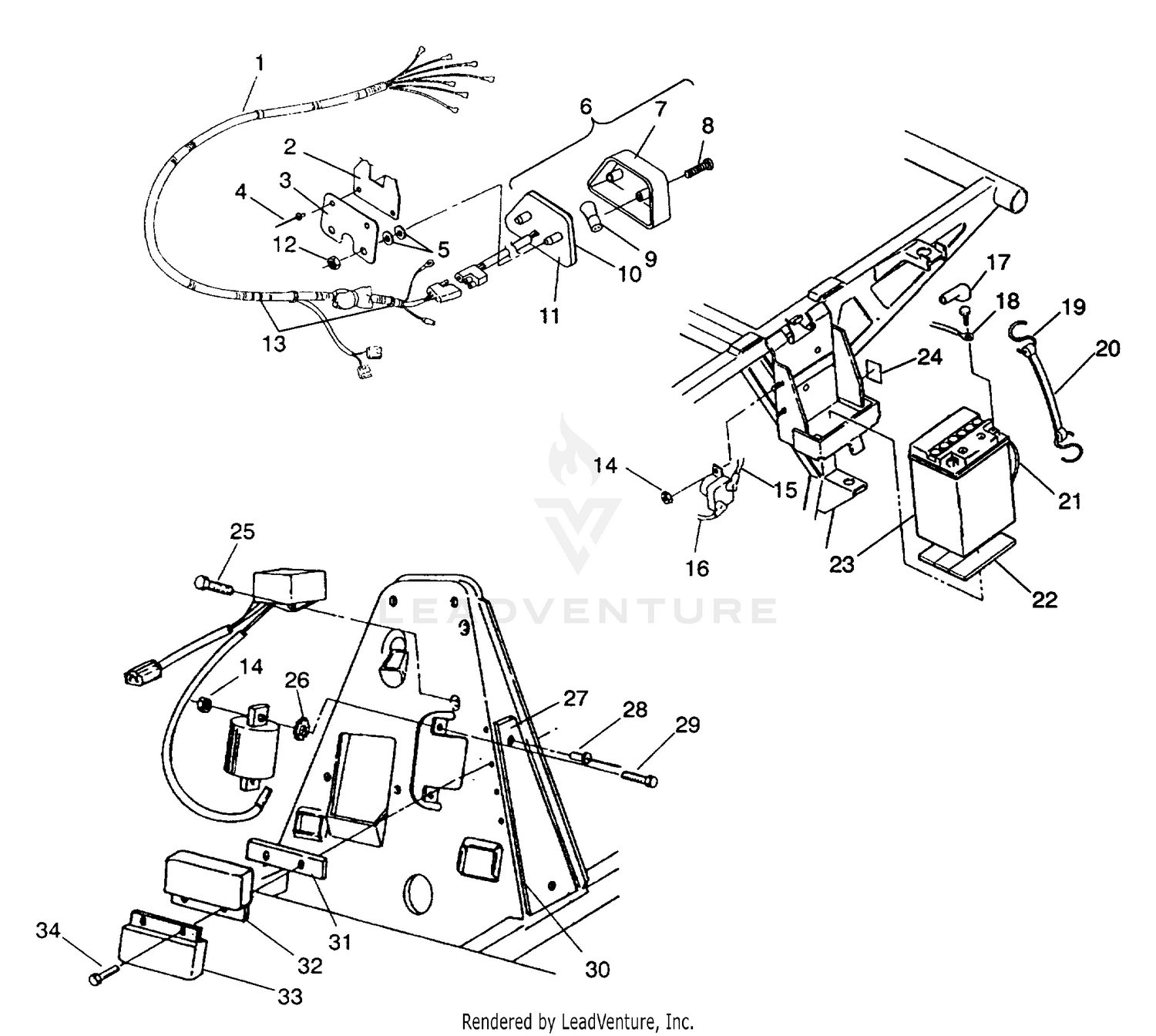

Electrical/taillight Assembly 4x4 250 W938127 (4924042404033a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, MAIN WIRE,4WHL
2460405
|
|||
|
Unavailable |
|||
|
#2
BRACKET,T/L MOUNT
5240244-067
|
|||
|
Unavailable |
|||
|
#3
ISOLATOR,TAILLIGHT
5211391-067
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#4
Rivet
7621470
Superseded by 7621453
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Washer, Flat
7555776
Superseded by 7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
TAIL LIGHT ASM.
2432034
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
LENS,TAILLIGHT
4032046
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, TAILLIGHT
4032029
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB,TAILLIGHT
4030043
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET,TAILLIGHT
4032045
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BACKING,TAILLIGHT
4032064
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPEED NUT-WASHER, HEAD-1/4
7670054
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT(10)
7541925
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE,SOLENOID-STRTR.
4010075
|
|||
|
Unavailable |
|||
|
#16
CABLE,SOLENOID/STARTER
4010064
|
|||
|
Unavailable |
|||
|
#17
INSULATOR-CABLE
5410346
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE,BATTERY-SOLENOID
4010076
|
|||
|
Unavailable |
|||
|
#19
HOOK-BATT.H/D(10)
7010032
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Strap, Battery Holddown
5410424
Superseded by 5412499
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
KIT-TANK VENT
2200190
|
|||
|
Unavailable |
|||
|
#22
PAD-BATTERY
5810290
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BATTERY
4140006
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
DECAL, BATTERY [No Longer Available]
7072606
|
|||
|
Unavailable |
|||
|
#25
BOLT(10)
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER(10)
7571602
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOARD,TERMINAL
4040022
|
|||
|
Unavailable |
|||
|
#28
RIVET, POP(50)
7621322
|
|||
|
Unavailable |
|||
|
#29
SCREW(10)
7512007
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHIELD,TERM.BOARD
5431152
|
|||
|
Unavailable |
|||
|
#31
HEAT SINK
5210650
|
|||
|
Unavailable |
|||
|
#32
NOT AVAILABLE
4060087
Superseded by 9999999
|
|||
|
Available to order. Add to View Price |
|||
|
#33
LIMITER,REV.SPEED
4060085
|
$102.99 | ||
|
Unavailable |
|||
|
#34
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
