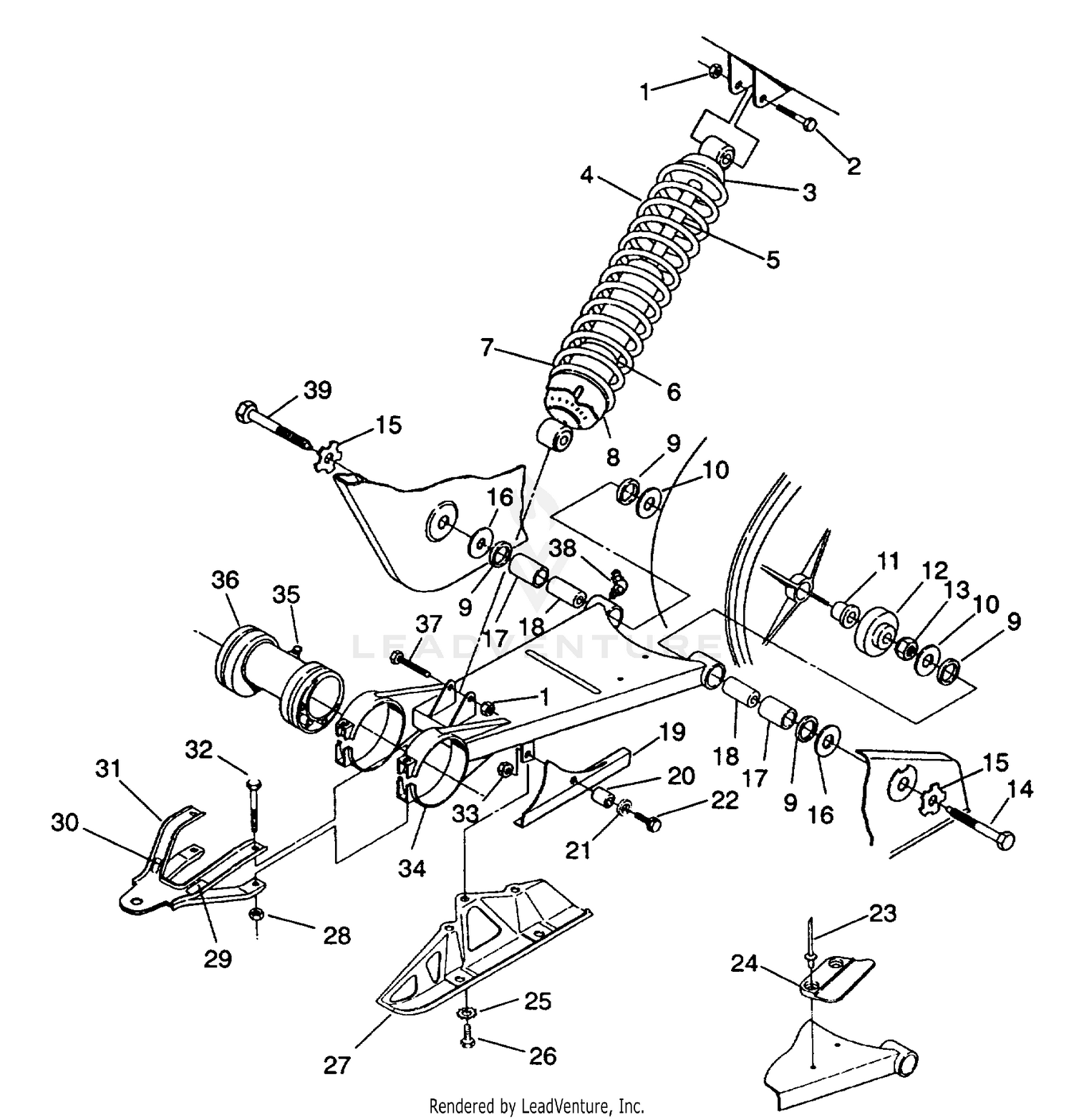

Swing Arm/shock Mounting 4x4 250 W938127 (4924042404022a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT-LOCK(10)
7542439
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT(10)
7515415
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
RETAINER-SPRING,STEEL
5222118
Superseded by 5251753
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING,COMP,REAR
7041204-067
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHOCK,REAR
7041218
Superseded by 7041448
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SLEEVE,SPRING PROTECTOR
5431032
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ADAPTER,SPRING,SEAT
5630351
|
|||
|
Unavailable |
|||
|
#8
CAM,ADJUSTING SPRING
5630334
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL,OIL
3610016
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER(10)
7555779
|
|||
|
Unavailable |
|||
|
#11
Support
-------
|
|||
|
Unavailable |
|||
|
#12
ROLLER,CHAIN GUIDE
5431003
|
|||
|
Unavailable |
|||
|
#13
NUT,CROWN LOCK(10)
7542601
|
|||
|
Unavailable |
|||
|
#14
BOLT, SHOULDER
7512702
|
$15.49 | ||
|
Unavailable |
|||
|
#15
PLATE,BOLT LOCK
5220958
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSHING, MACH.(10)
7555752
|
|||
|
Unavailable |
|||
|
#17
BEARING
3576507
|
$11.99 | ||
|
Unavailable |
|||
|
#18
NOT AVAILABLE
5010255
Superseded by 9999999
|
|||
|
Available to order. Add to View Price |
|||
|
#19
GUARD, CHAIN
5430952
Superseded by 5430776
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BUSHING
5332828
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-FLANGED(10)
7515304
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RIVET(50)
7621433
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GUIDE, CHAIN
5431017
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW(10)
7512252
|
|||
|
Unavailable |
|||
|
#27
GUARD, SWING ARM
1040166-067
|
|||
|
Unavailable |
|||
|
#28
NUT,FLANGE(10)
7542522
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
DECAL,CHAIN TENSION Substituted by 7074752
7074177
|
|||
|
Unavailable |
|||
|
#30
DECAL, HITCH Substituted by 7078261
7072533
|
|||
|
Unavailable |
|||
|
#31
Kit, Hitch
1040294-067
Superseded by 2873036
|
$36.99 | ||
|
Unavailable |
|||
|
#32
BOLT(10)
7512576
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT LOCK(10)
7542321
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
ARM, SWING
1580048-067
|
|||
|
Unavailable |
|||
|
#35
FITTING,LUBE.W/BALL CK.(10)
7080306
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
HOUSING, AXLE
5130663
|
$97.49 | ||
|
Unavailable |
|||
|
#37
BOLT(10)
7515438
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
FITTING, LUBE.
7080438
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, SHOULDER
7512701
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
