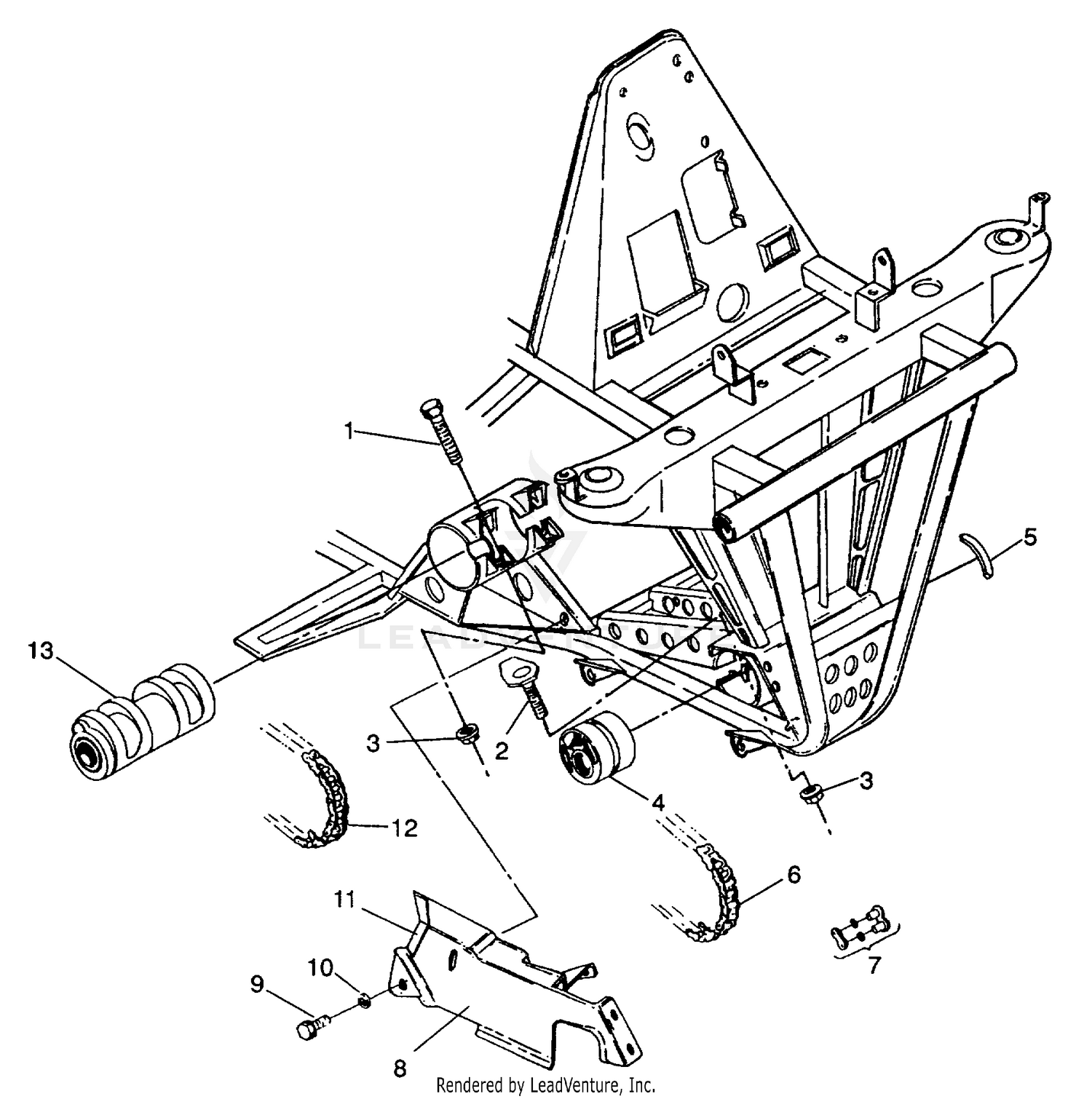

Front Drive Assembly 4x4 250 W938127 (4924042404010a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT(10)
7512551
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLAG(10)
7512577
|
|||
|
Unavailable |
|||
|
#3
NUT,FLANGE(10)
7542522
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TIGHTENER ASM,FRONT
1380024
|
|||
|
Unavailable |
|||
|
#5
SPACER,F.ECCENTRIC Substituted by 5811519
5431095
|
|||
|
Unavailable |
|||
|
#6
CHAIN-520 ORD4,O-RING,64 PITCH
3224041
Superseded by 3221193-064
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONNECTOR LINK
3225024
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUARD,CHAIN,FRONT
5431472
|
|||
|
Unavailable |
|||
|
#9
SCREW(10)
7512252
|
|||
|
Unavailable |
|||
|
#10
Washer, Flat
7555776
Superseded by 7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
TAPE,FOIL,PAN#3
5810493
|
|||
|
Unavailable |
|||
|
#12
CHAIN-520 ORD4,O-RING,70 PITCH
3224044
Superseded by 3221193-070
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
TGT.ASM,CTR,SHORT,W/O SPKT.
1380023
Superseded by 1380129
|
$288.99 | ||
|
Unavailable |
|||
