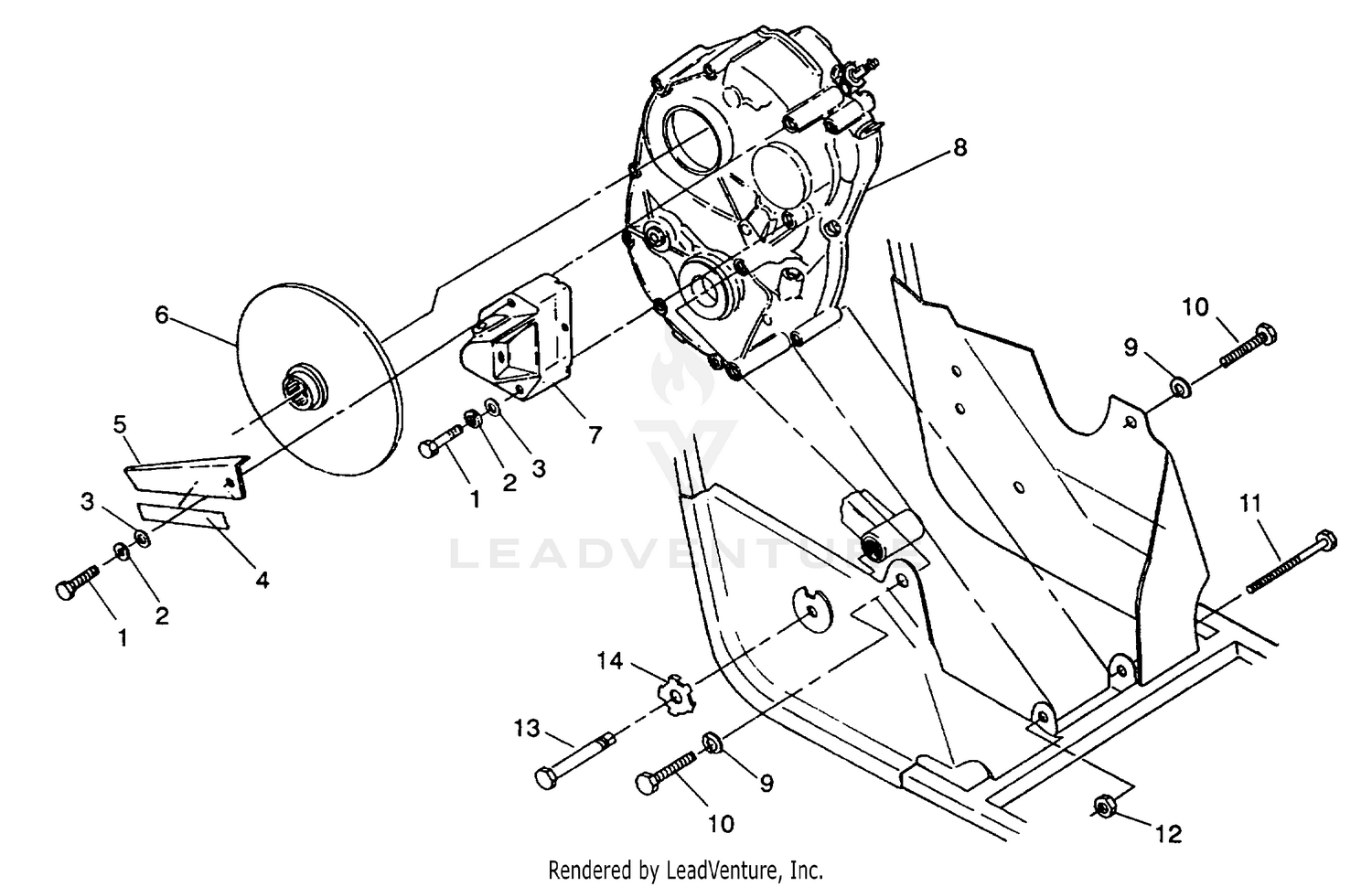

Gearcase/brake Mounting 4x4 250 W938127 (4924042404026a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT(10)
7515345
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DECAL(CPSC),BRAKE SHIELD Substituted by 7075339
7072790
|
|||
|
Unavailable |
|||
|
#5
COVER,BRAKE DISC.
5222563-067
|
|||
|
Unavailable |
|||
|
#6
DISC, BRAKE
1910087
|
|||
|
Unavailable |
|||
|
#7
CALIPER, R.BRAKE
1910047
|
|||
|
Unavailable |
|||
|
#8
TRANSMISSION(4X4) [Cannot Purchase as Assembly]
1341066
|
|||
|
Unavailable |
|||
|
#9
WASHER(10)
7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw
7515458
Superseded by 7512492
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT(10)
7515472
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT LOCK(10)
7542403
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SHOULDER
7512701
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SHOULDER
7512702
|
$15.49 | ||
|
Unavailable |
|||
|
#14
PLATE,BOLT LOCK
5220958
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
