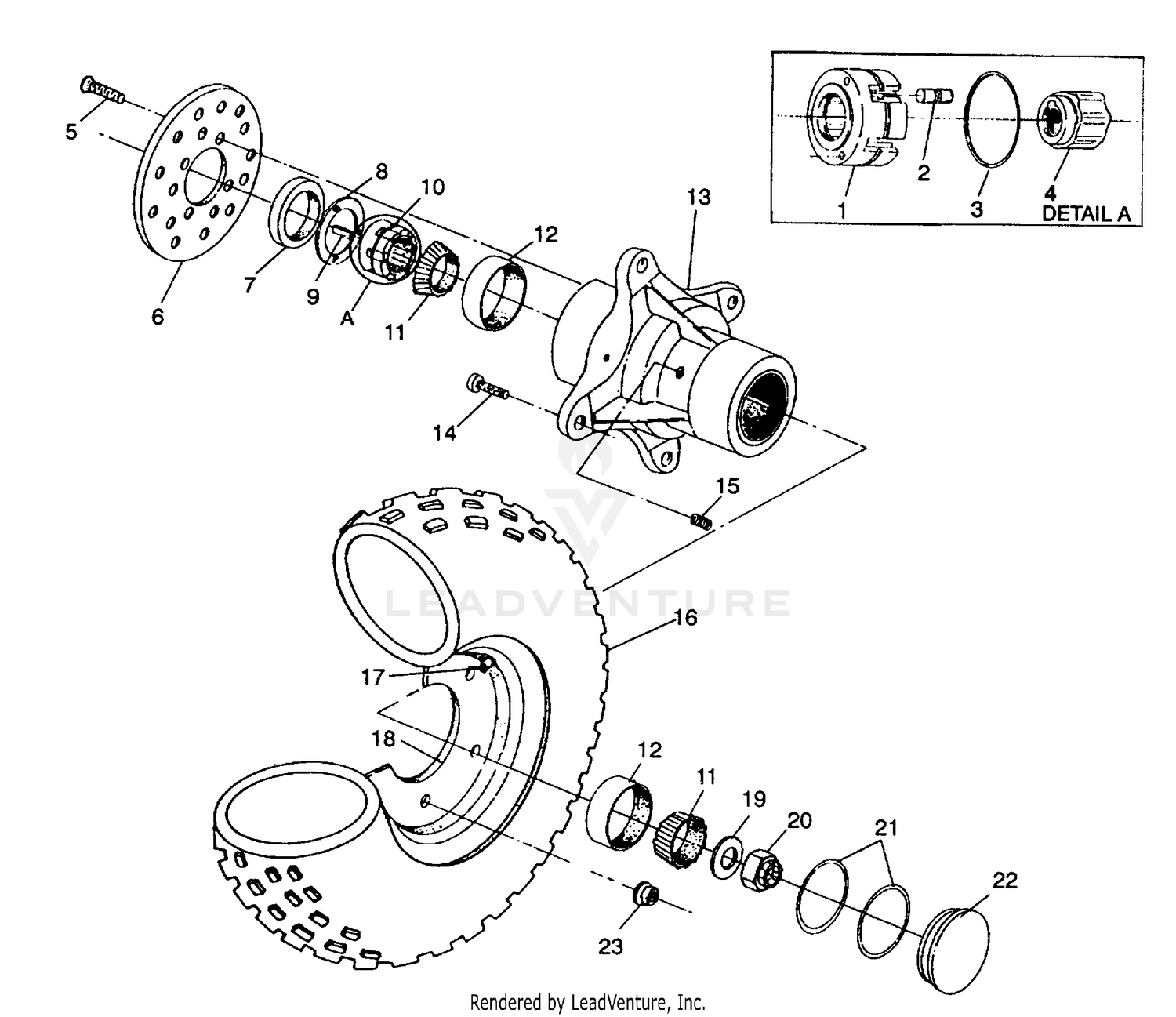

Front Wheel Assembly 4x4 250 W938127 (4924042404014a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAGE, ROLL
3250023
Superseded by 3250028
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROLLS
3250010
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, GARTER
3250022
|
|||
|
Unavailable |
|||
|
#4
CAM
3250024
|
|||
|
Unavailable |
|||
|
#5
BOLT(10)
7515321
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISC, BRAKE
5211325
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, FR. HUB
3610019
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, ARMATURE
5211148
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
KEY
7721205
|
|||
|
Unavailable |
|||
|
#10
CLUTCH ASM,FR.HUB
1520143
|
|||
|
Unavailable |
|||
|
#11
BRG,TAPER.ROLL.CONE
3554506
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRG,TAPER,ROLL CUP
3554507
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HUB ASM,W/BRG.RACE
1520182
|
|||
|
Unavailable |
|||
|
#14
STUD(10)
7515523
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG,PIPE
7052045
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
TIRE,FR(22X8-10)
5410480
|
|||
|
Unavailable |
|||
|
#17
VALVE-RIM
1525017
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Rim, Front, Silver
1520175-117
Superseded by 1520175-486
|
$114.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER(10)
5211101
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT,RH THREAD
7543201
|
|||
|
Unavailable |
|||
|
#21
O RING
5410470
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, HUB
5431368
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT-HXFL-3/8-24 B ZTB P-A
7542459
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
